Current Position：Homepage>>Products>>Diamond core hydraulic drilling rig

BDMYC-400

Addtime：2025-05-15

Phone：0086-13165490800

Product Brief：BDMYC-400 reverse circulation RC drilling rig is suitable for mineral exploration, geological surveying, core sampling, etc. It is a wheeled portable type and easy to operate.

Introduction: 立即咨询

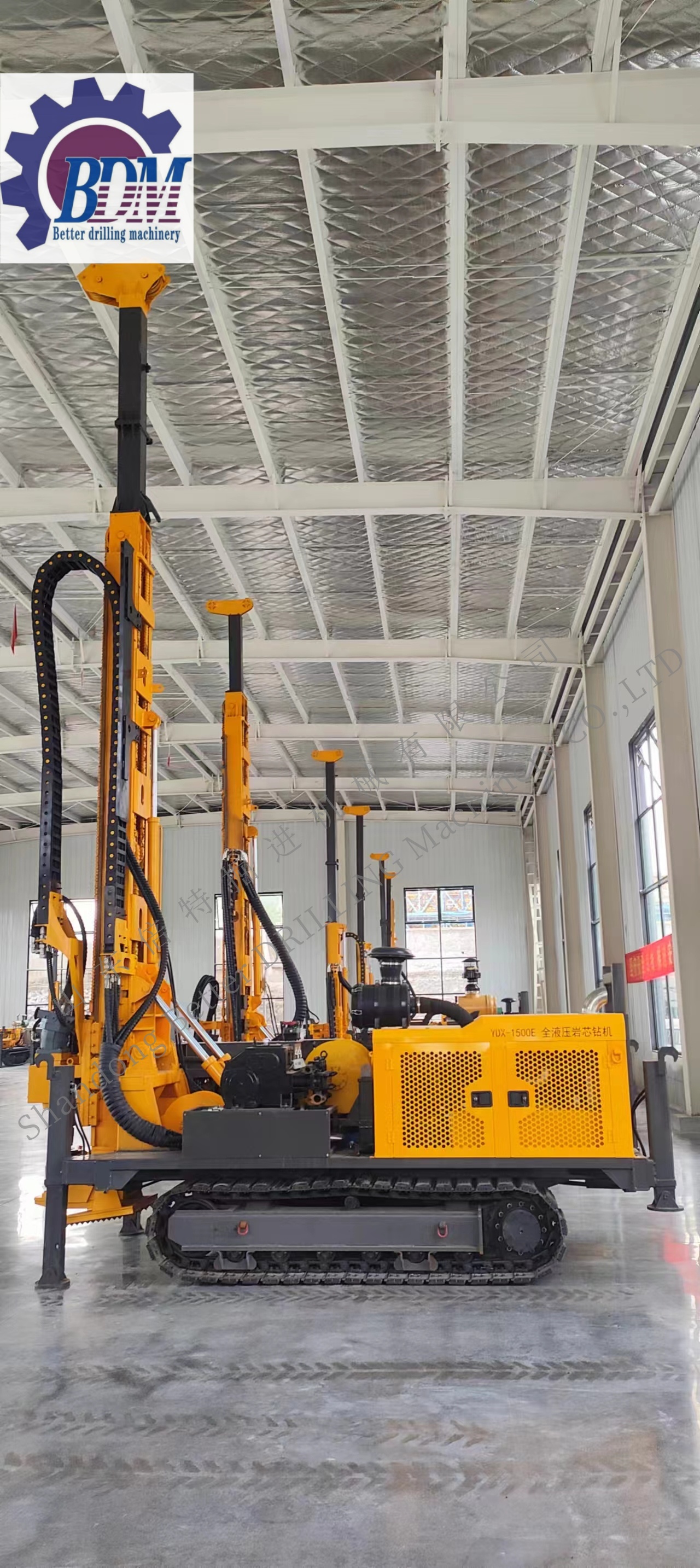

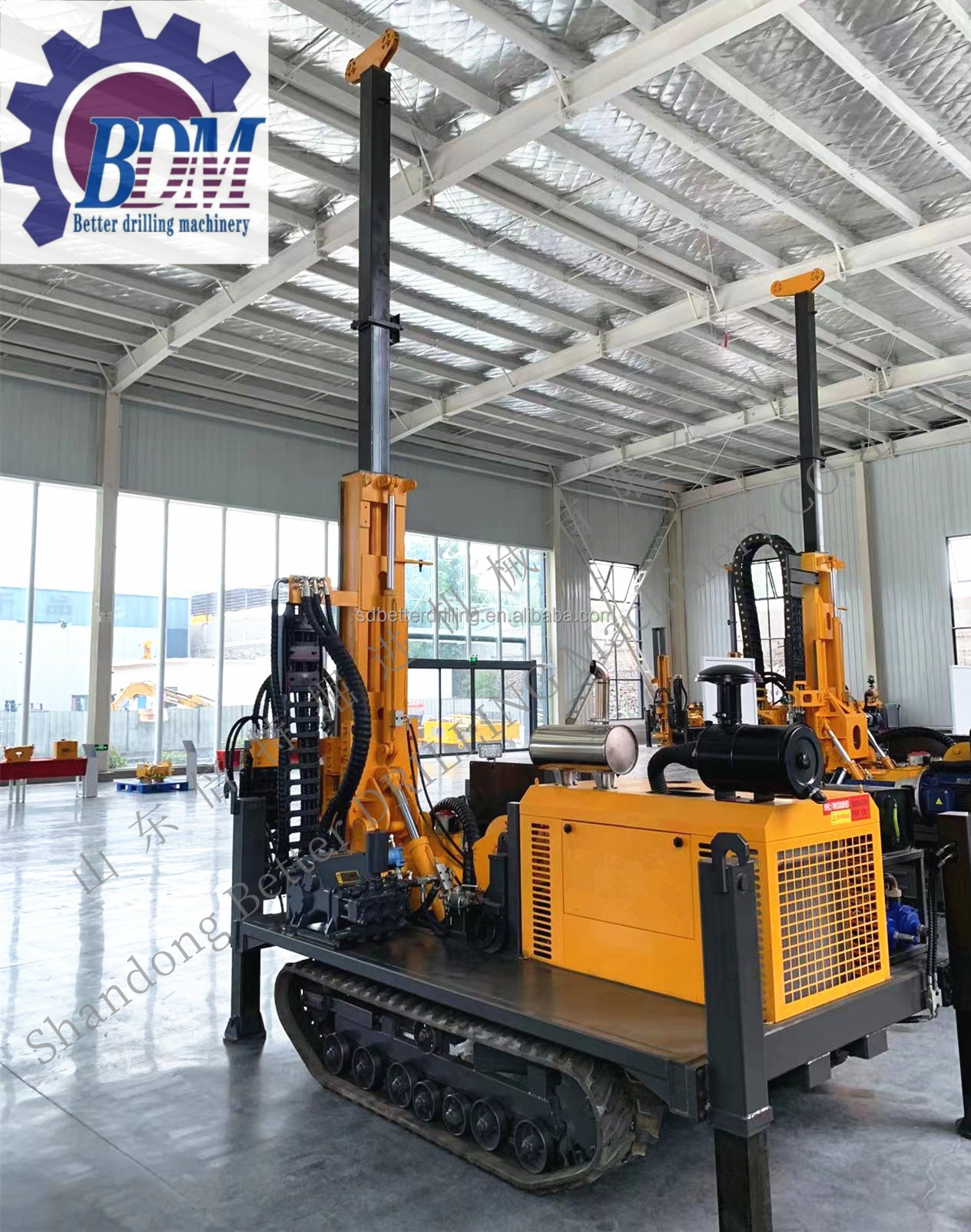

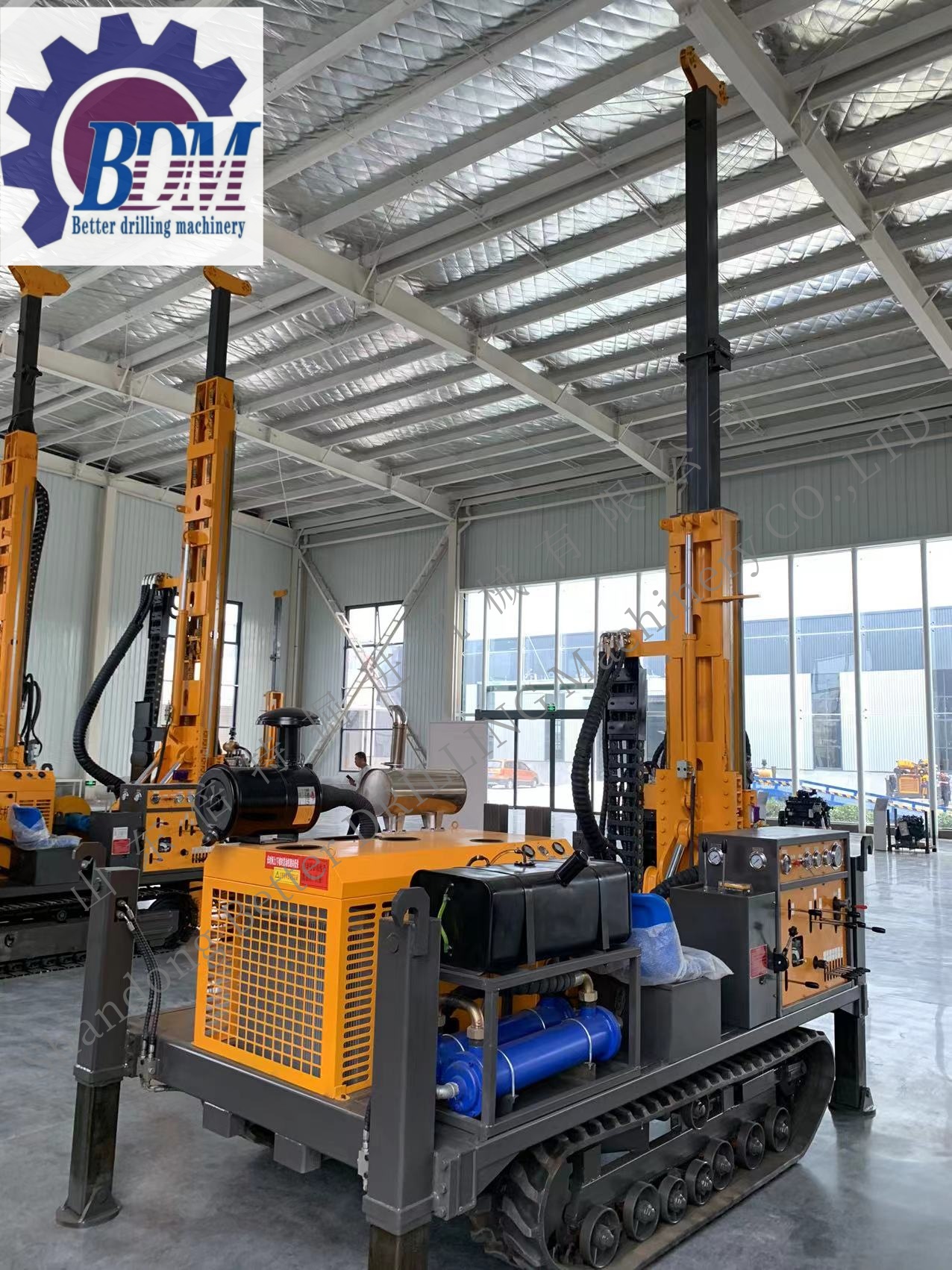

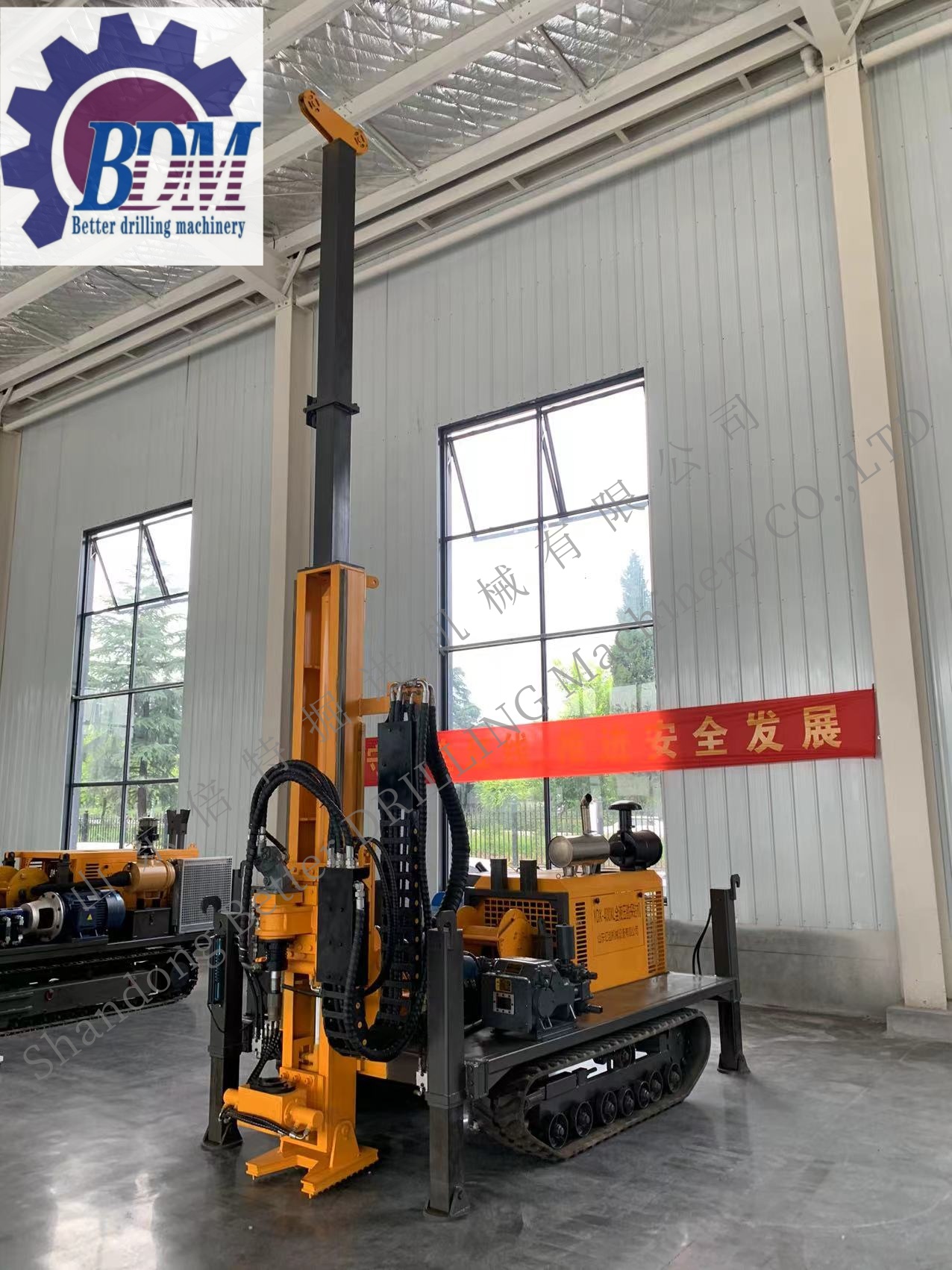

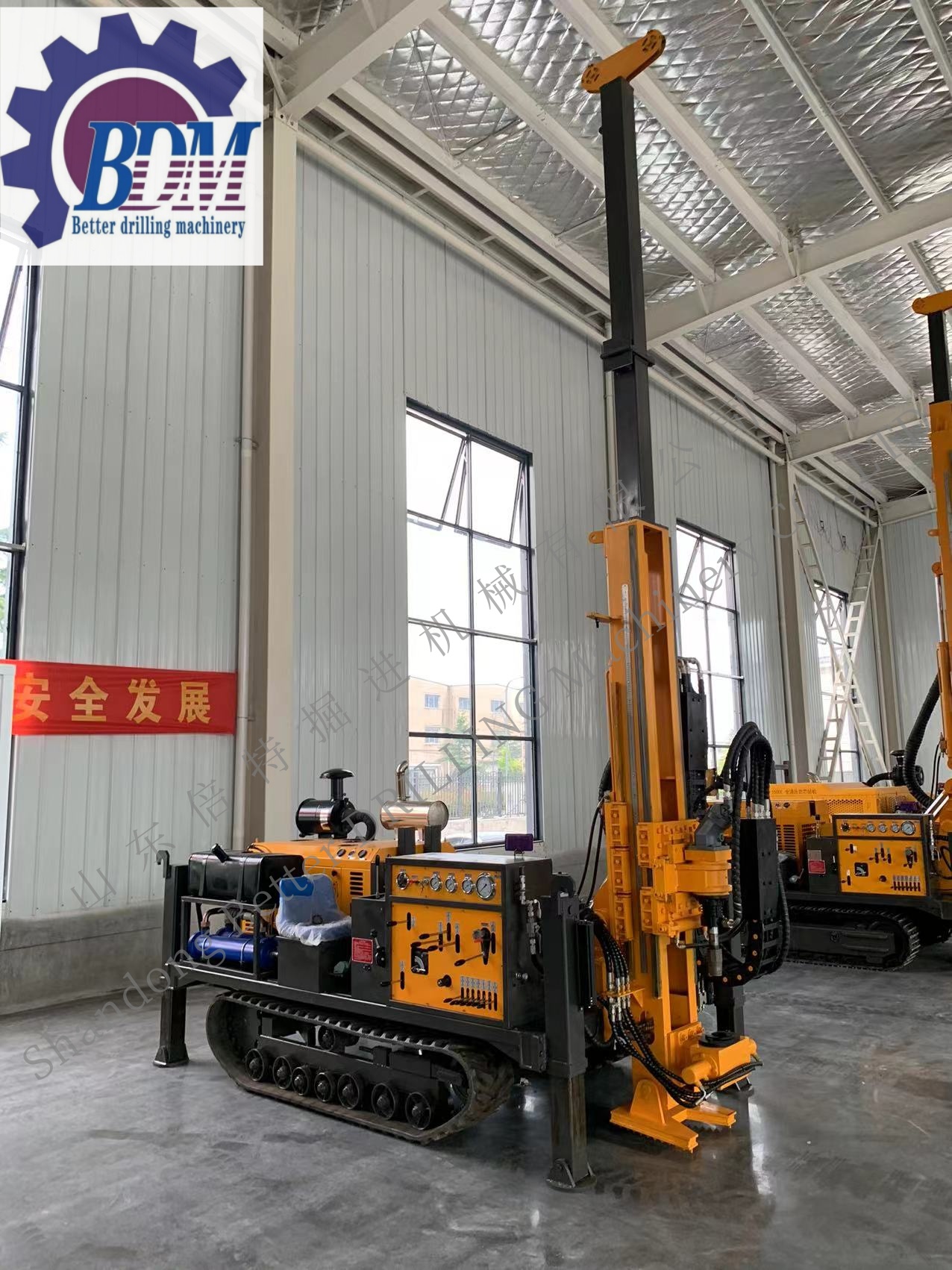

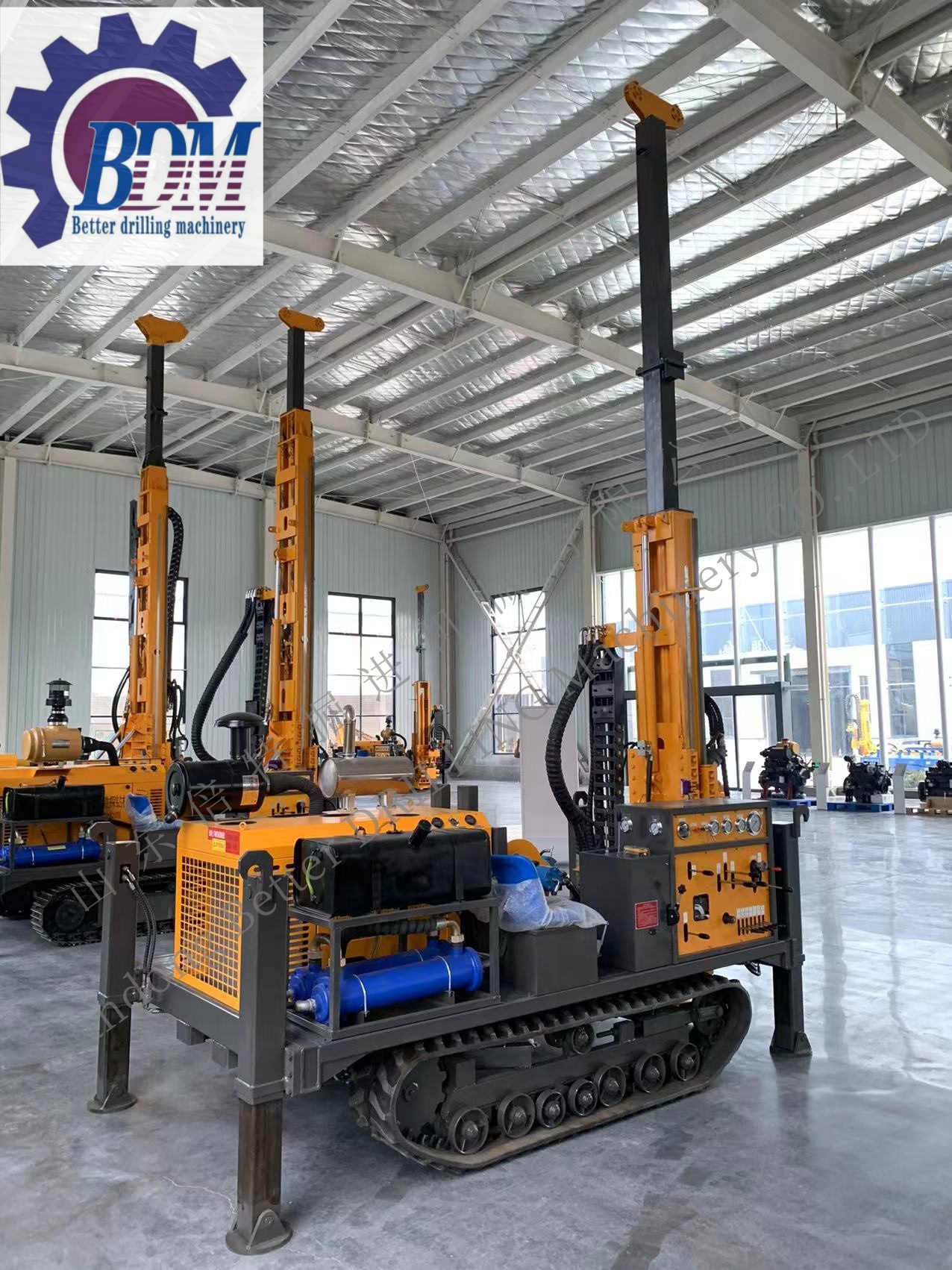

BDMYC-400 Fully Hydraulic Core Exploration Drilling Rig

Product Parameter List：

Technical Parameters of BDMYC-400 Fully Hydraulic Core Sampling Equipment
Drilling depth	400m
Drilling diameter	HTW-NTW-BTW
Diesel engine power	78KW
Rated pressure	20Mpa
Rated flow rate	150L/min
Cooler system	Air cooler +water cooler
Power head torque	350-700N.M
Power head speed	1300RPM
Power head feed range	1900MM
Tower type	Touchdown one-piece tower
Drilling Angle	45-90°
Tower lifting force	14(T)
Tower feeding force	7(T)
Winch lifting force	600(KG)
Winch speed	100-300(RPM)
Rope capacity	600m*6mm
Travelling type	manual+remote control
Travelling speed	3.5(KM/H)
Climbing angle	45°
Mud pump flow	0-100L/min
Mud pump pressure	0-5.5MPA
Transport size	390019001800MM
Weight	4300kg
