BDMYC-600K

Addtime：2025-05-16

Phone：0086-13165490800

Product Brief：BDMYC-600K Full Hydraulic Rotary Drilling Rig Diesel Engine Wire Rope Core Drilling Machine for Mining Drilling Crawler

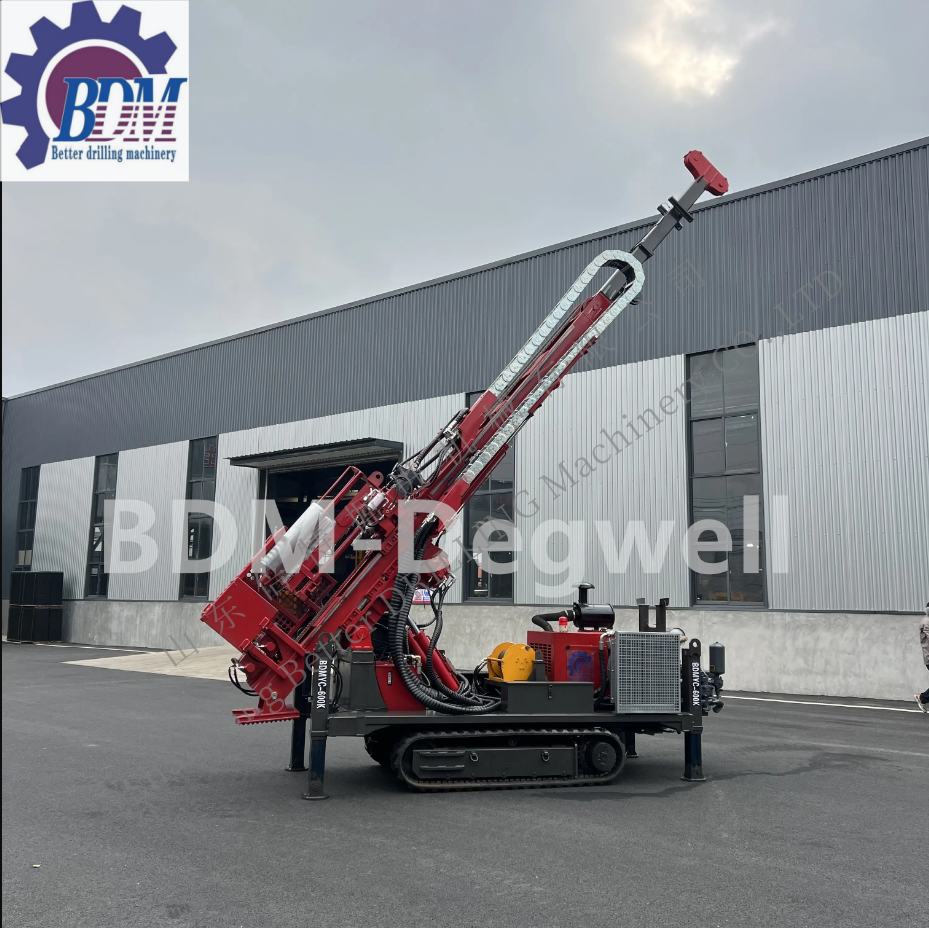

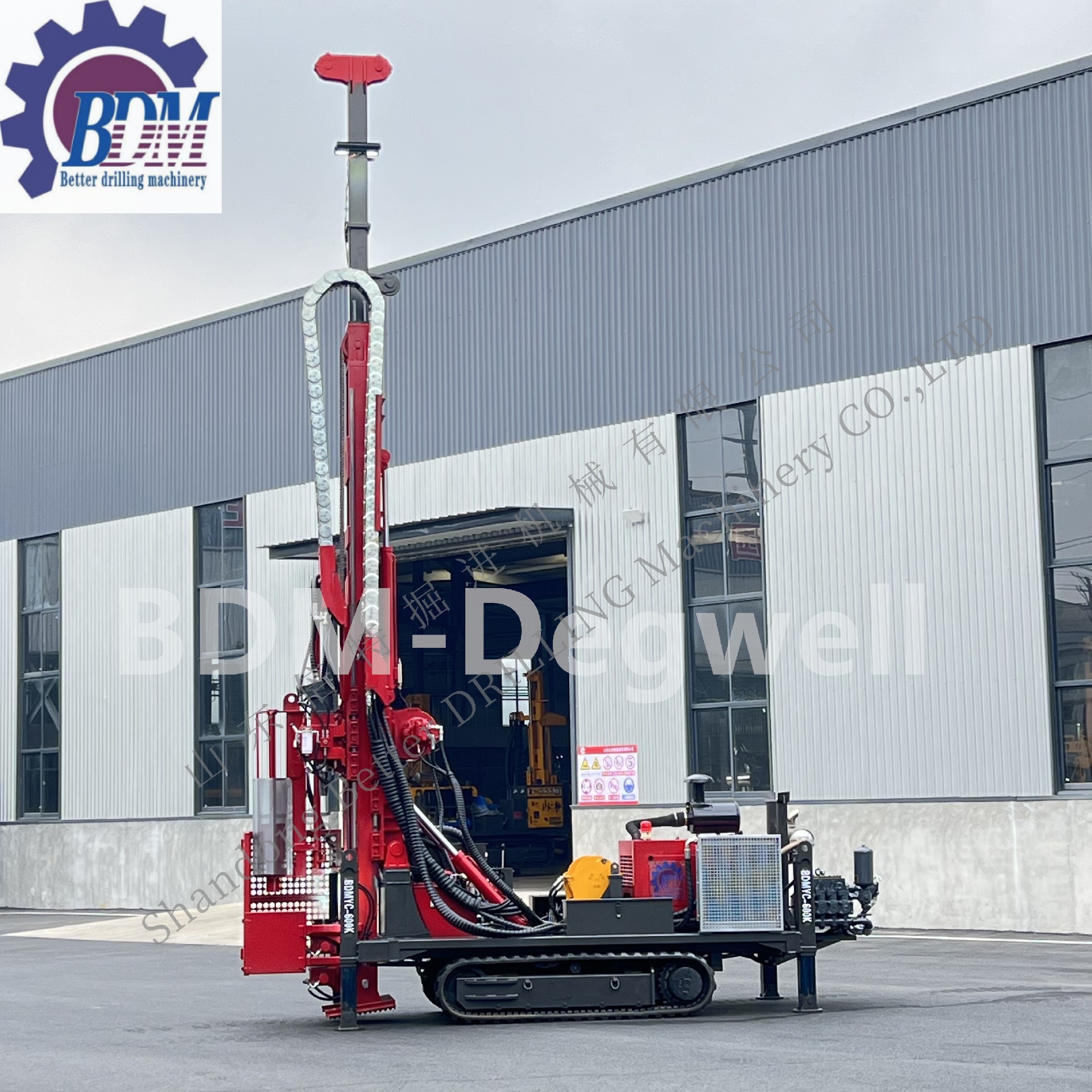

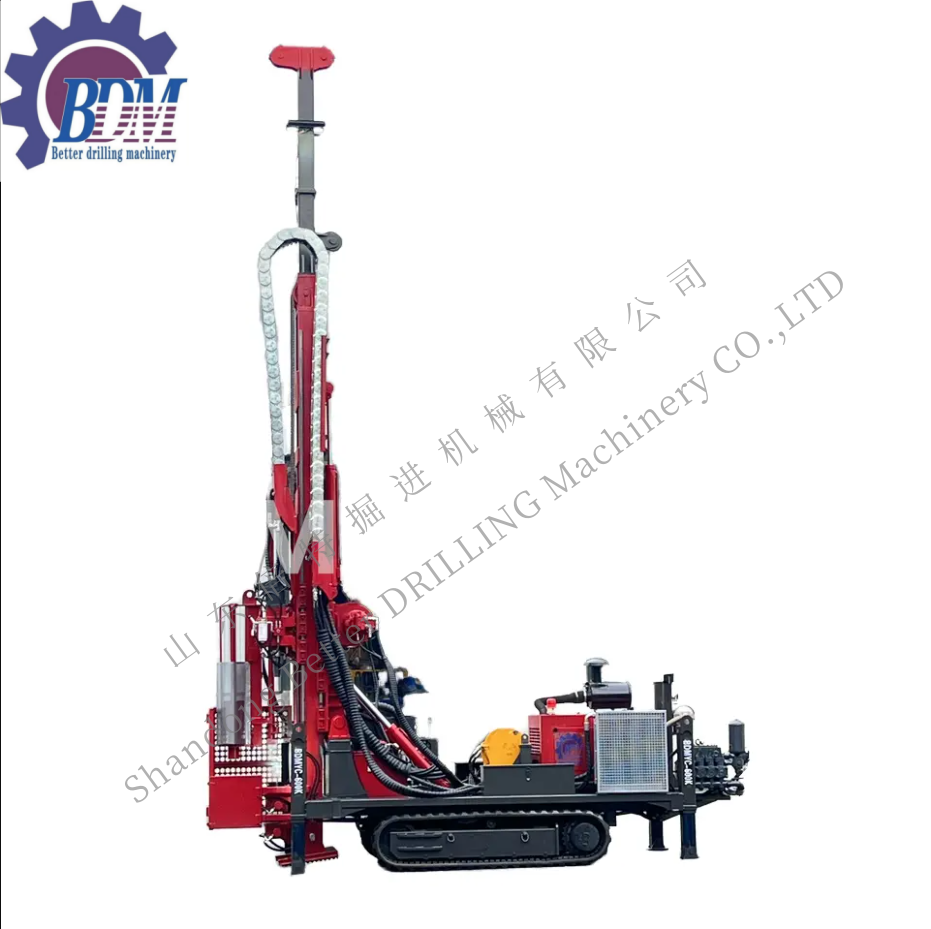

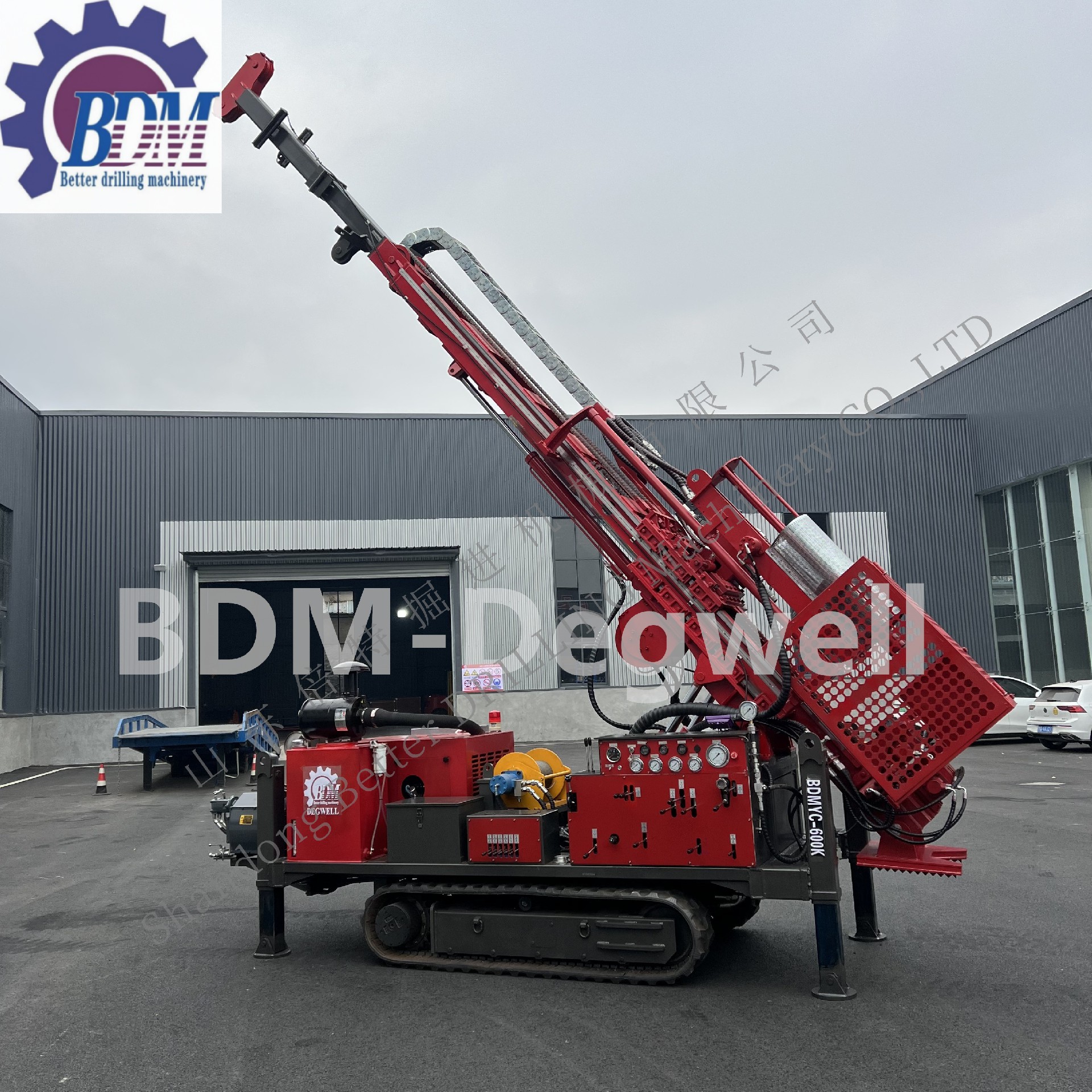

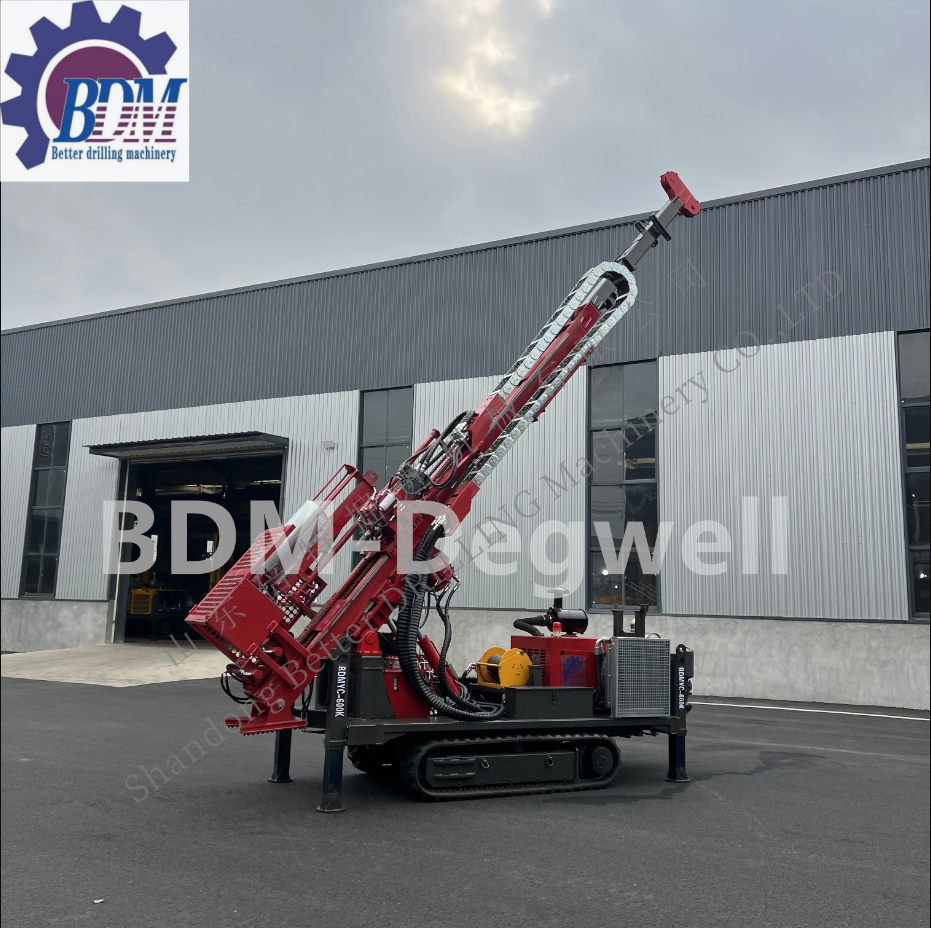

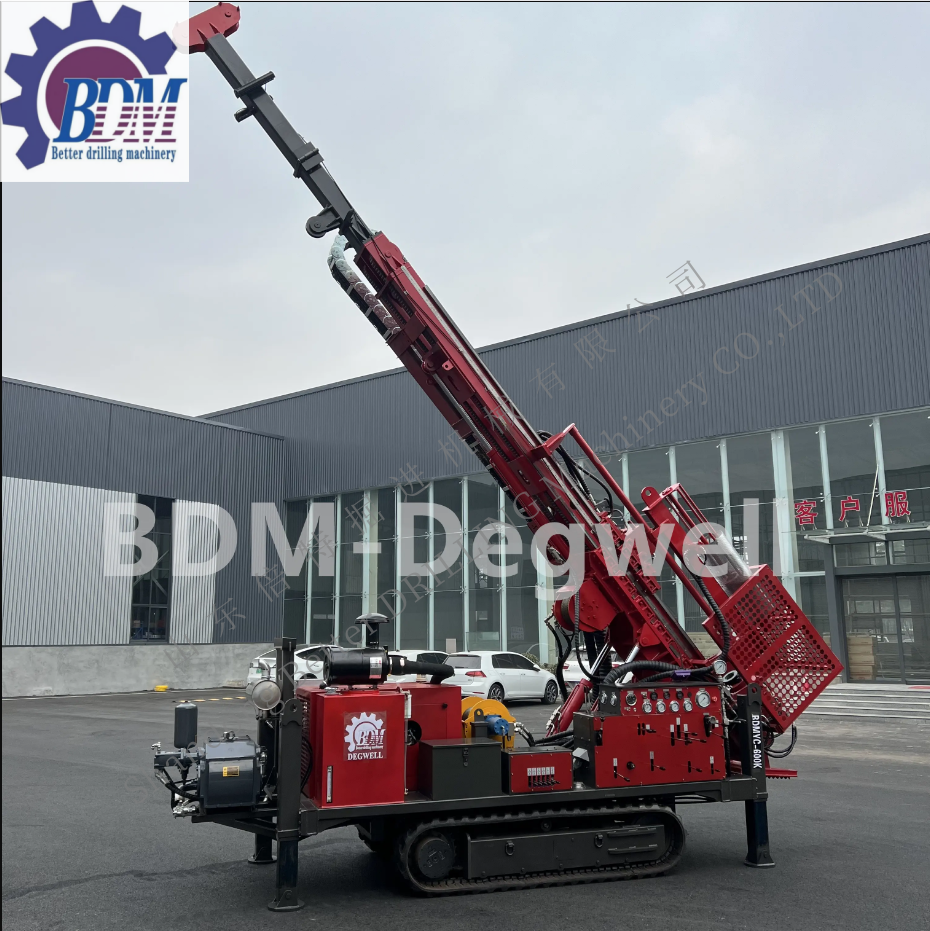

BDMYC-600K Fully Hydraulic Core Drilling Rig with Rope Extraction Mechanism

Product technical parameters：

Multi-function steel crawler hydraulic wireline drilling rig technical figures
Drilling depth	600m
Drilling diameter	NQ.BQ.HQ(BTW,NTW,HTW)ETC
Diesel engine power
Engine power	93kw
Engine brand	engine power
Hydraulic system
Rated pressure	20Mpa
Rated flow rate	220L/min
Heat dissipation method	Air cool
Drilling system
Torque	450-2000N.M
Rotary Speed	1300RPM
Mast Type	Hydraulic control on ground
Driling mast angle	45-90°
Lifting force	16 tons
Feeding force	8 tons
Transmission type	Low high gear box
Wireline winch and main winch.Double winch
Lifting force	600kgs
Rotary speed	100-300RPM
Diameter of steel wire rope	6mm
Rope capacity	600m
Walking system
Operate type	Remote control+manual type
Walking speed	3.5km/h
Climbing angle	45°
Mud pump
Model	BW-250 triplex mud pump
Flow	69-250L/min
Pressure	9-2.5Mpa
Rig machine dimension
Working Size of rig	560019008900mm
Transport size of rig	560019005600mm
