BDMYC-600

Addtime：2025-06-09

Phone：0086-13165490800

Product Brief：BDMYC-600 Fully Hydraulic Core Drilling Rig with Rope Extraction Mechanism

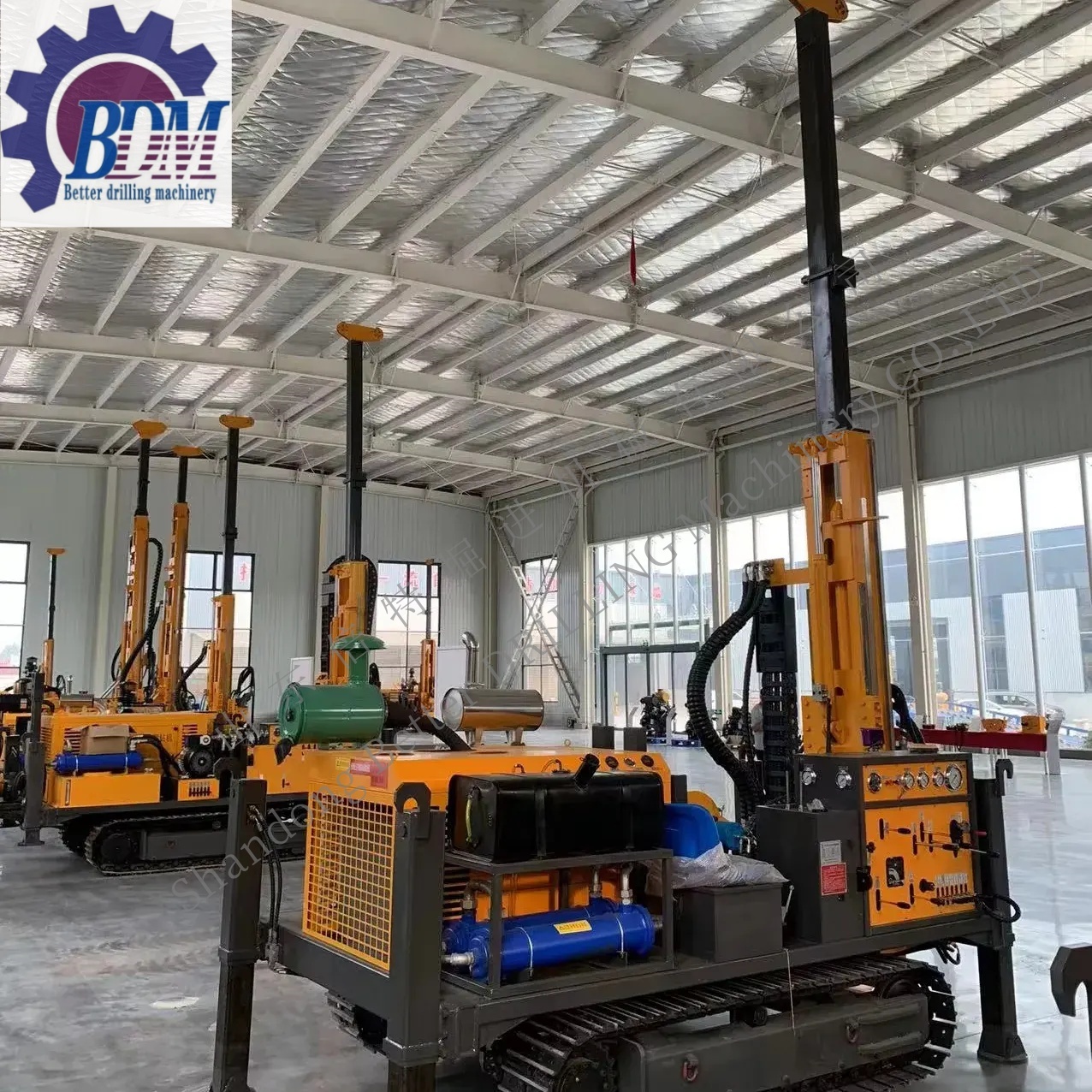

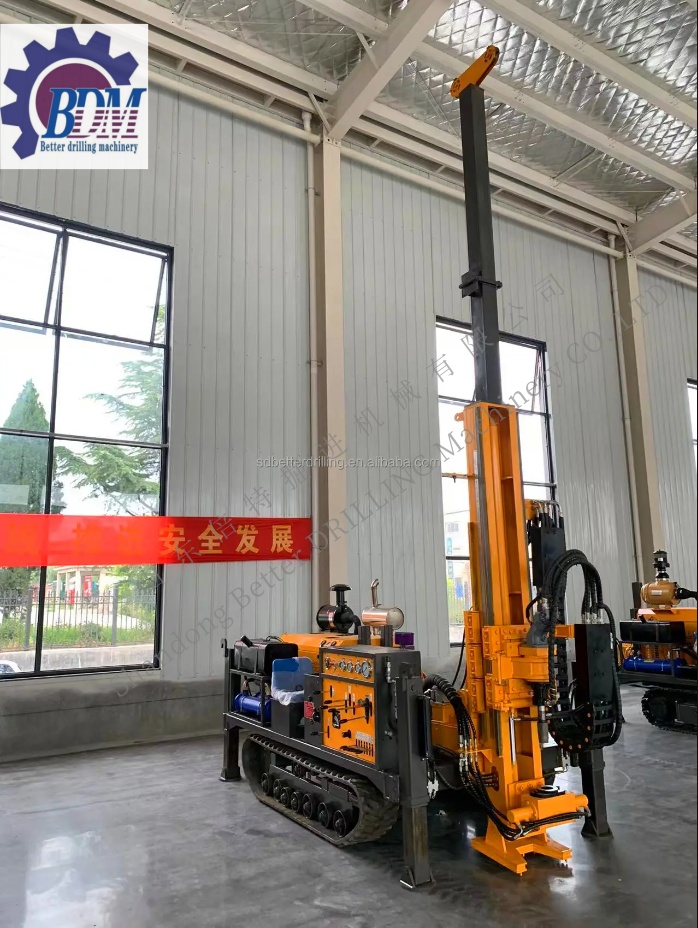

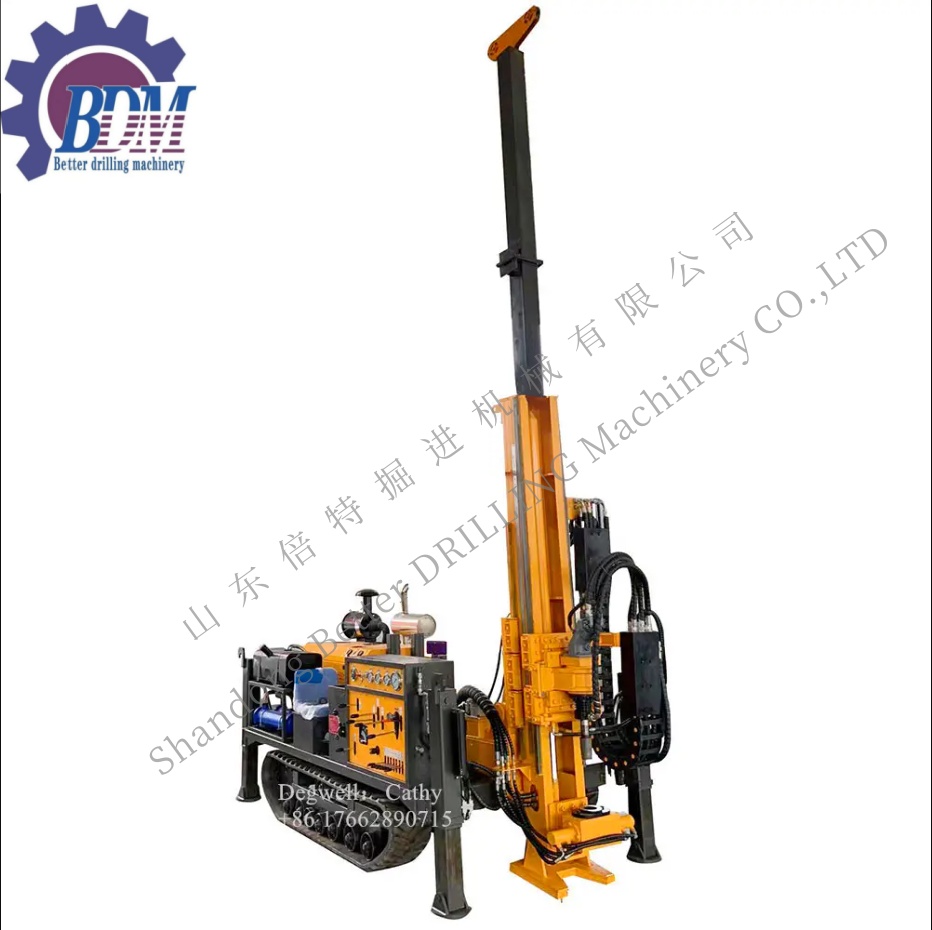

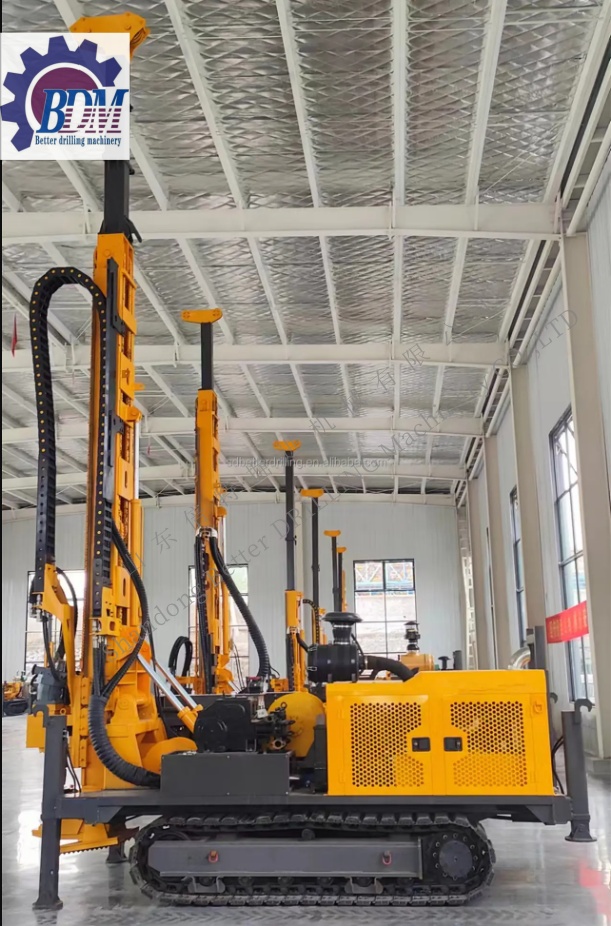

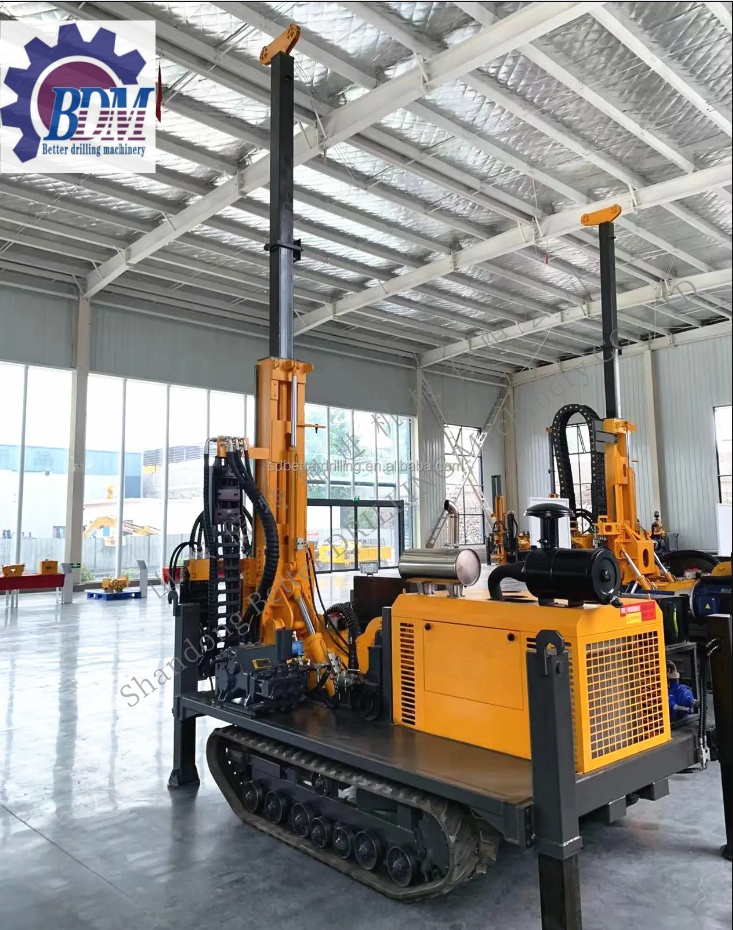

BDMYC-600 Fully Hydraulic Core Drilling Rig with Rope Extraction Mechanism

Product technical parameters:

	MODEL	BDMYC-600
Drilling capacity	BTW（m）	650
	NTW(m)	600
	HTW(m)	300
Hydraulic system	Rated pressure(Mpa)	32+16
Hydraulic system	Cooling method	Air cooling plus water cooling
Diesel engine	MODEL	Yuchai four-cylinder 92KW
	Rated power(Kw)	92
	Rated speed (rpm)	2200
Power head	Max torque(N.m)	1400
	Max speed (rpm)	1400
	Stroke (m)	1.9
	Lifting force(KN)	240
	Propulsion(KN)	120
Winch	Capacity(m)	800
	Lifting force(KN)	15
	Lifting speed(m/min)	110
	Drilling angle(°)	45-90
	Sliding stroke(mm)	800
Transport size	LWH(mm)	450019002300
Transport size	Weight(t)	4.5
