Drilling Capacity

Bore: HTW-NTW-BTW
Depth: 400-800-1000(M)

Hydraulic System

Fixed Pressure: 28(MPA)
Rated Flow: 283(L/min)
Cooling Method: Air cooling + Water cooling

Engine

Brand: Yuchai Shares
Type: Turbocharger
Rated Speed: 2400(RPM)
Rated Power: 92(KW)(6-cylinder)

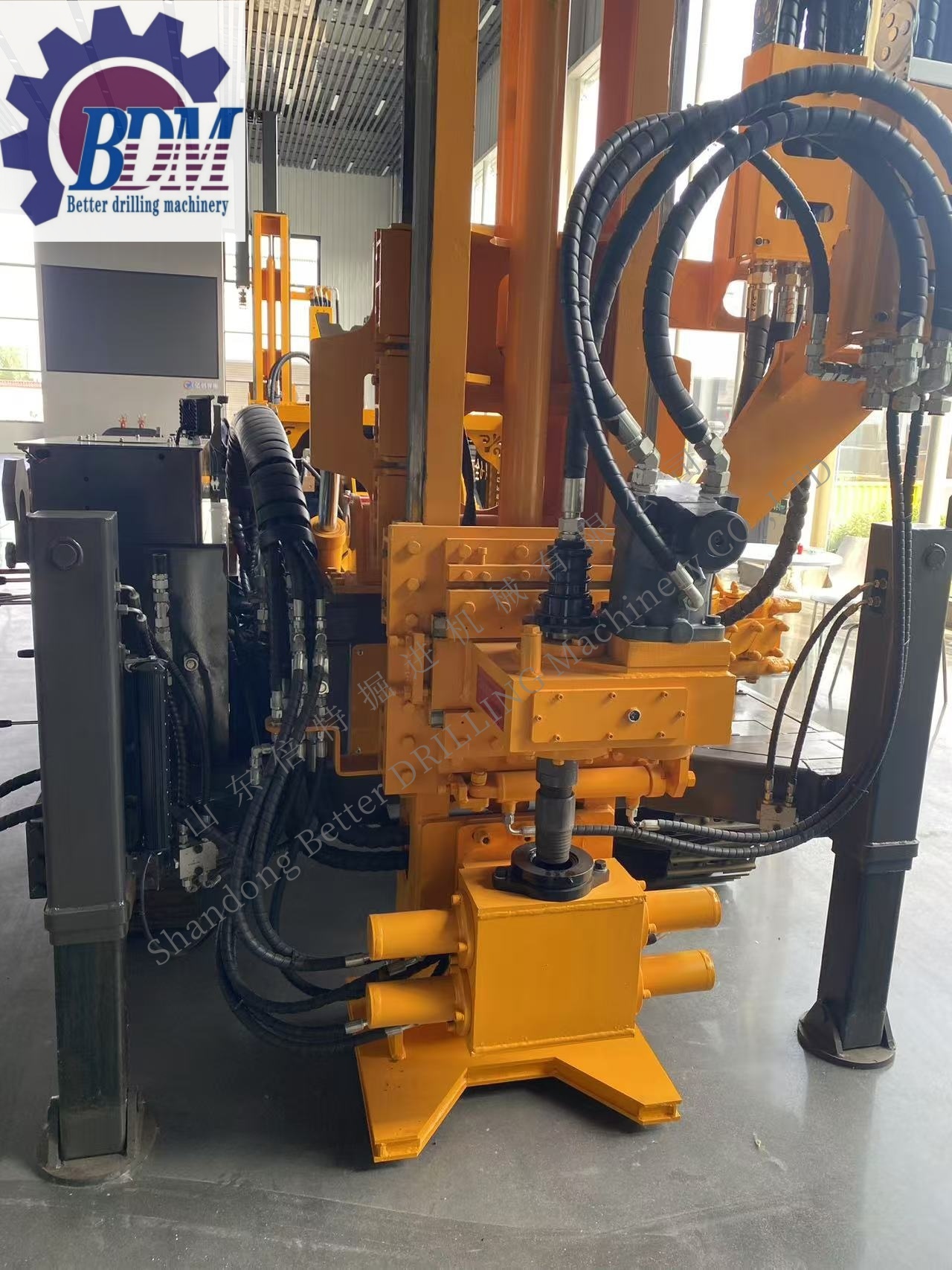

Power Head

Torque: 450-1500N.M
Speed: 1300(RPM
Stroke: 19000VMD)

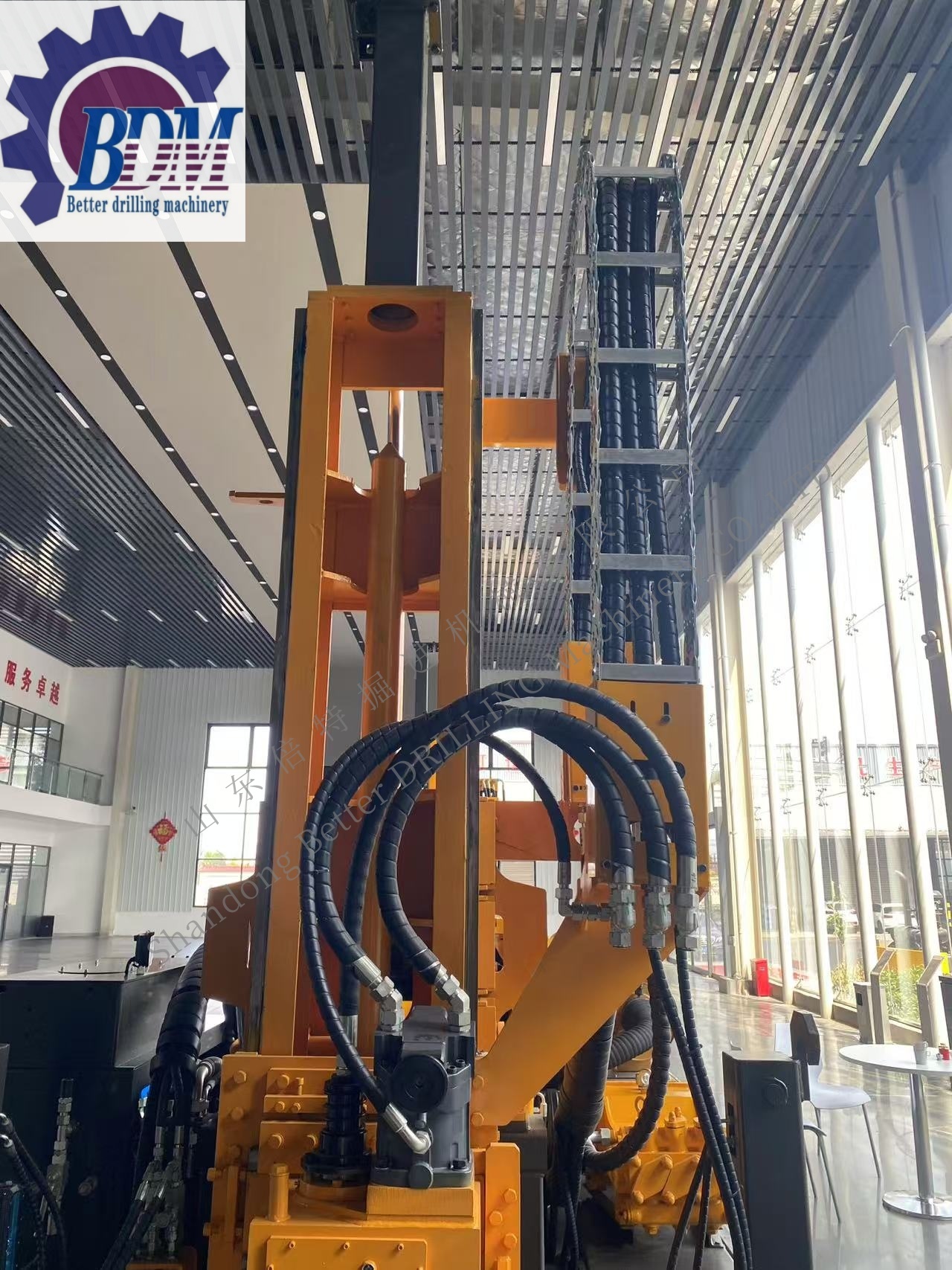

Derrick

Type: Ground Contact Integral Tower
Drilling Angle: 45-90(”)
Lifting Force: 24(T)
Feeding Force: 12(T)

Winch

Lifting Force: 800(KG)
Speed: 100-300(RPW)
Wire Rope Diameter: 60MO
Wire Rope Capacity: 800()

Travel

Type: Manual + Remote Control
Travel Speed: 3.5(KW/H)
Single Machine Climbing Angle: 45(*)

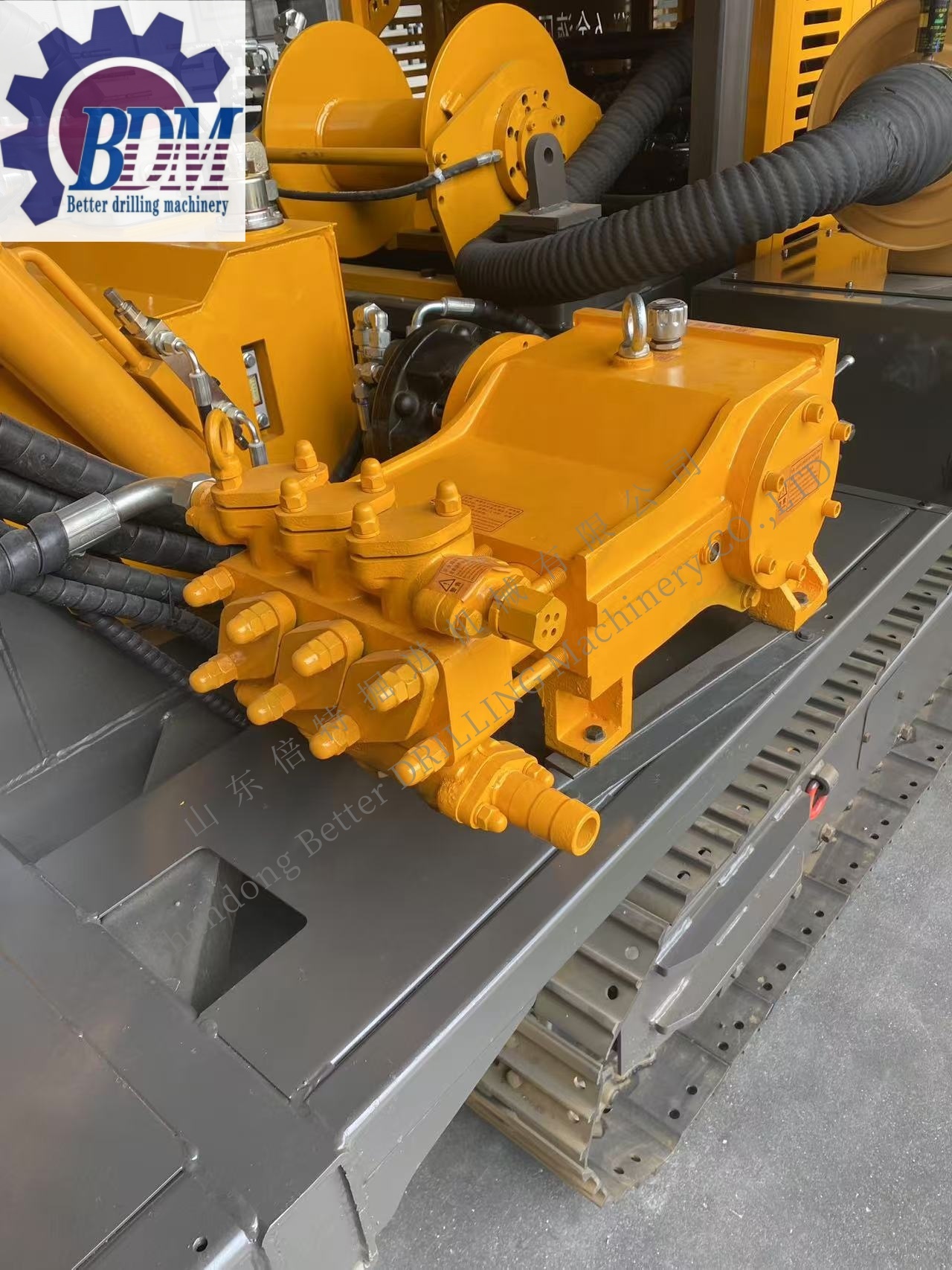

Mud Pump

Flow: 0-150(L/min)
Pressure: 0-7(MPA)

Generator

Type: Variable Frequency Brushless Maintenance-Free
Power and Voltage: 11KW 220V/380V

Size and Weight

Transportation Size: 4300*2050*2130mm
Gross Weight: 6.5(T)
