BDMYC-1000

Addtime：2025-06-09

Phone：0086-13165490800

Product Brief：BDMYC-1000 Fully Hydraulic Core Drilling Rig with Rope Extraction Mechanism

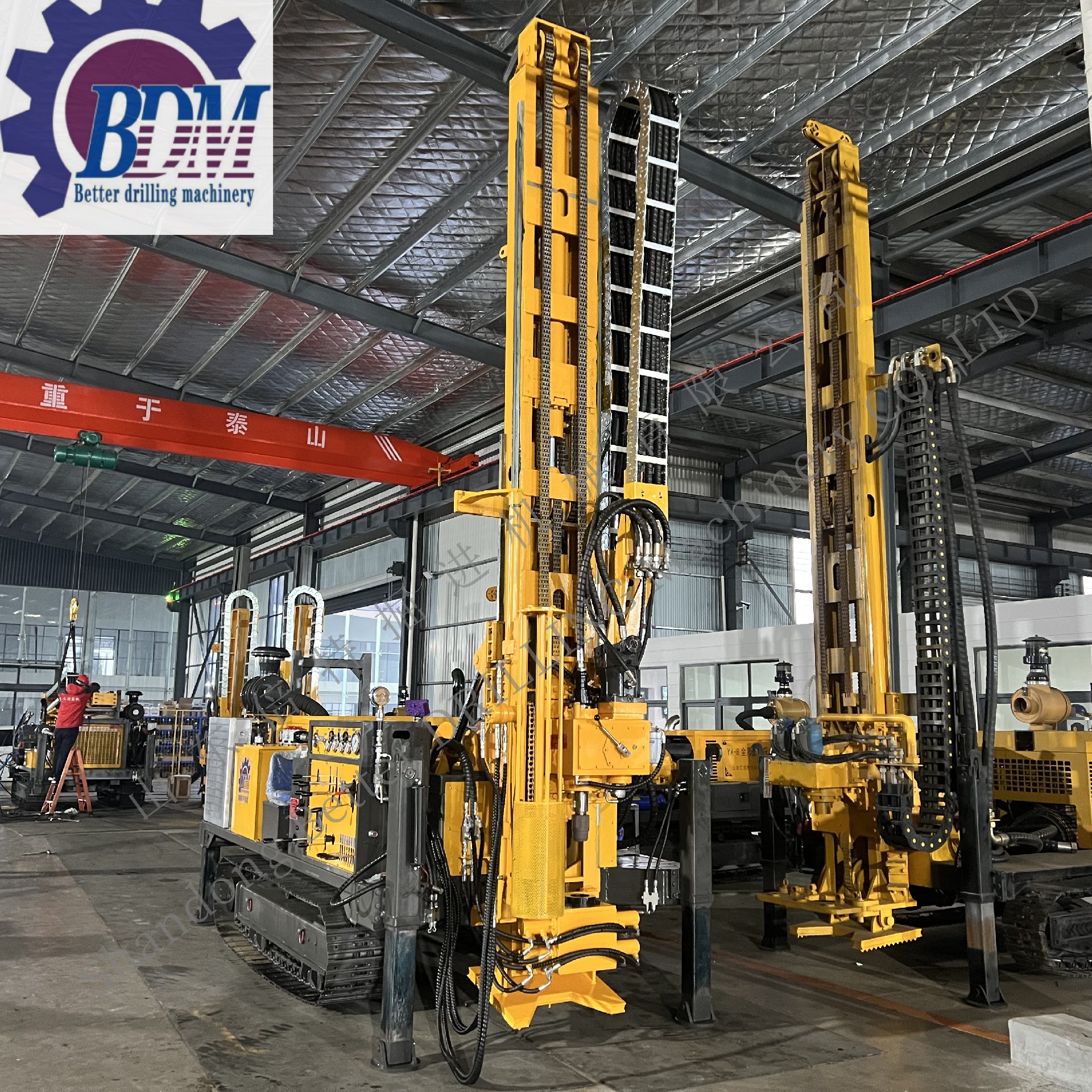

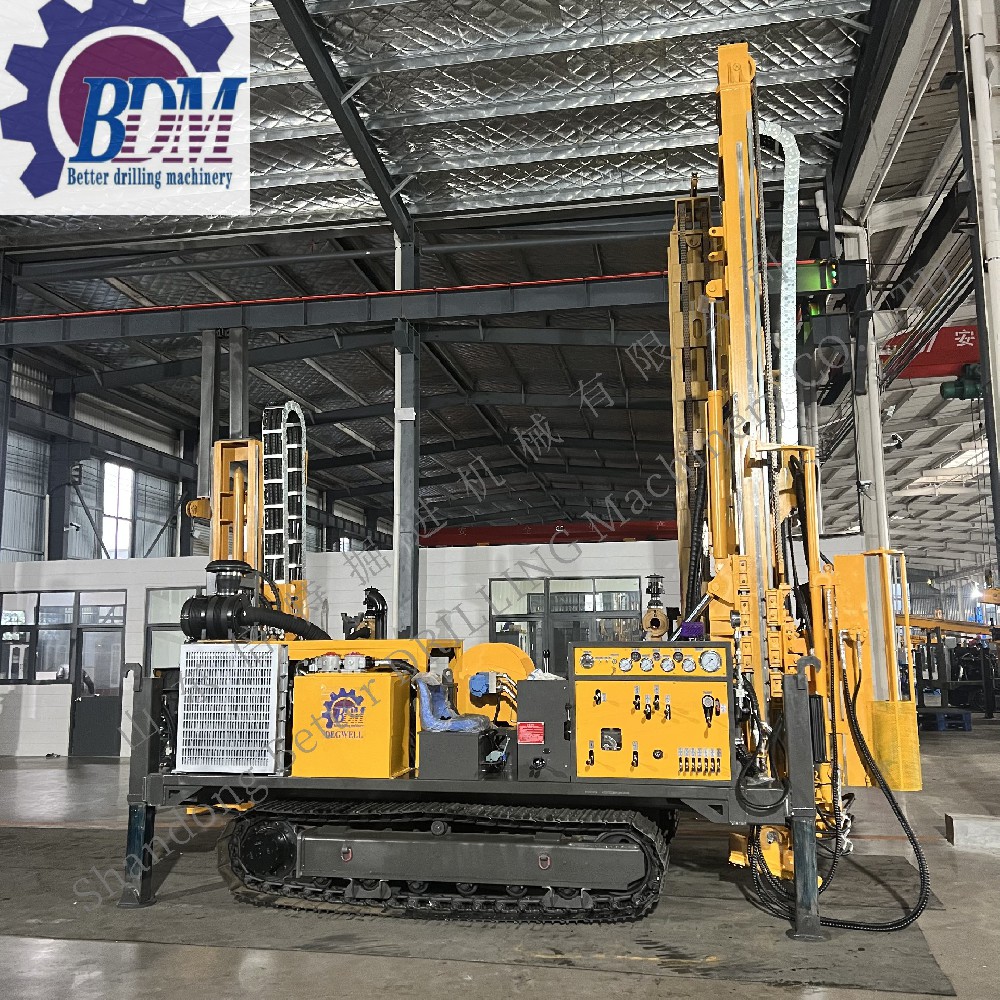

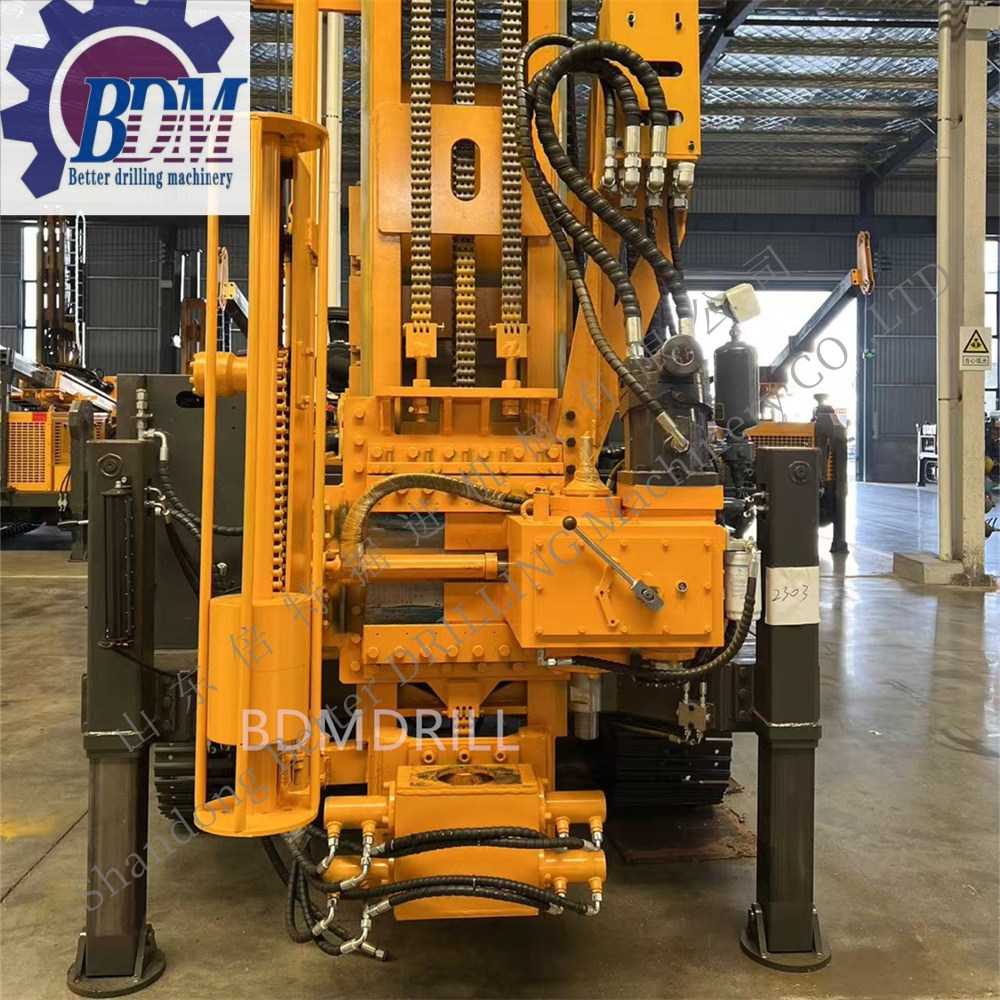

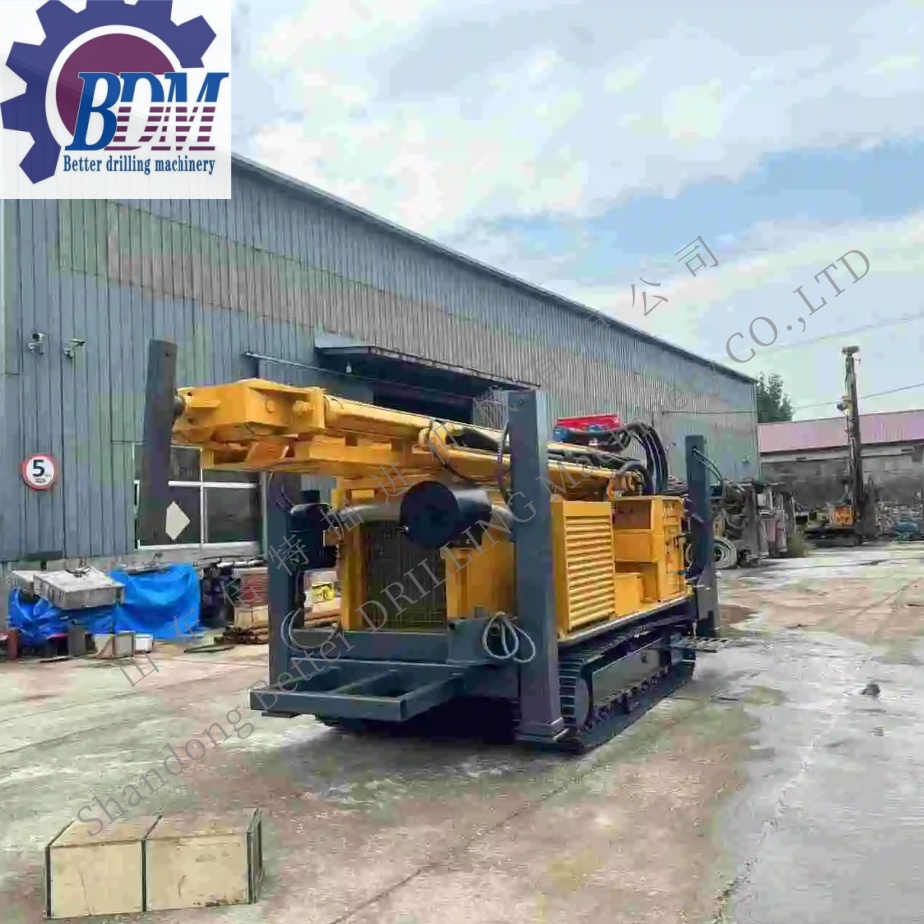

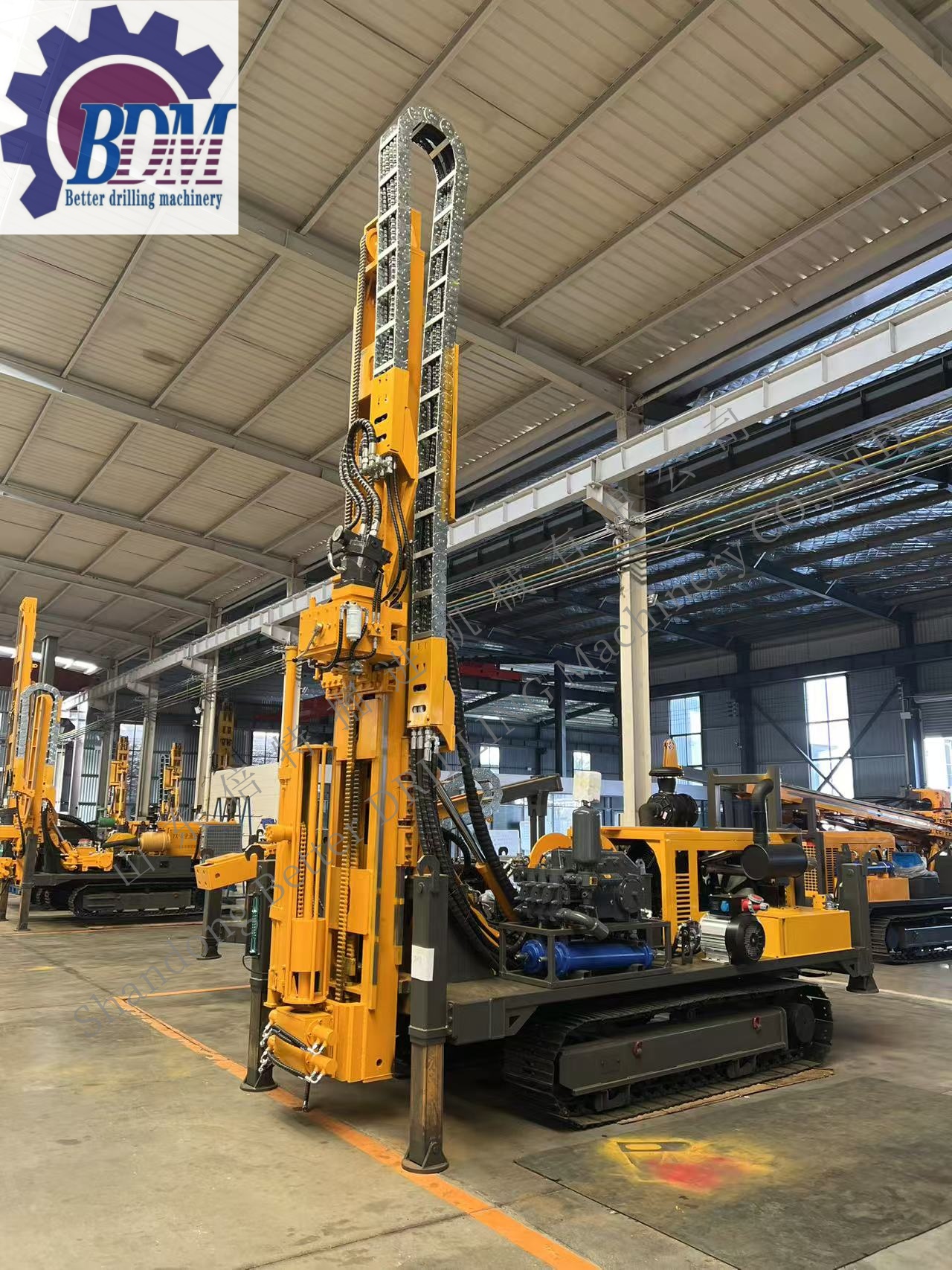

BDMYC-1000 Fully Hydraulic Core Drilling Rig with Rope Extraction Mechanism

Product technical parameters：

	MODEL	BDMYC-1000
Drilling capacity	BTW（m）	1200
	NTW(m)	1000
	HTW(m)	800
Hydraulic system	Rated pressure(Mpa)	32+16
Hydraulic system	Cooling method	Secondary air cooling plus primary water cooling
Diesel engine	MODEL	Yuchai Six-cylinder 92kW
	Rated power(Kw)	92
	Rated speed (rpm)	2200
Power head	Max torque(N.m)	2200
	Max speed (rpm)	1400
	Stroke (m)	3.5
	Lifting force(KN)	300
	Propulsion(KN)	150
Winch	Capacity(m)	1000
	Lifting force(KN)	20
	Lifting speed(m/min)	110
	Drilling angle(°)	0-90
	Sliding stroke(mm)	1200
Transport size	LWH(mm)	560020002400
Transport size	Weight(t)	6.8
