BDMYC-2000

Addtime：2025-06-09

Phone：0086-13165490800

Product Brief：BDMYC-2000 is equipped with Yuchai 162kw, plunger hydraulic pump, 320 hydraulic mud pump, double winches, 3-meter drill pipe, and gear transmission box.

Introduction: 立即咨询

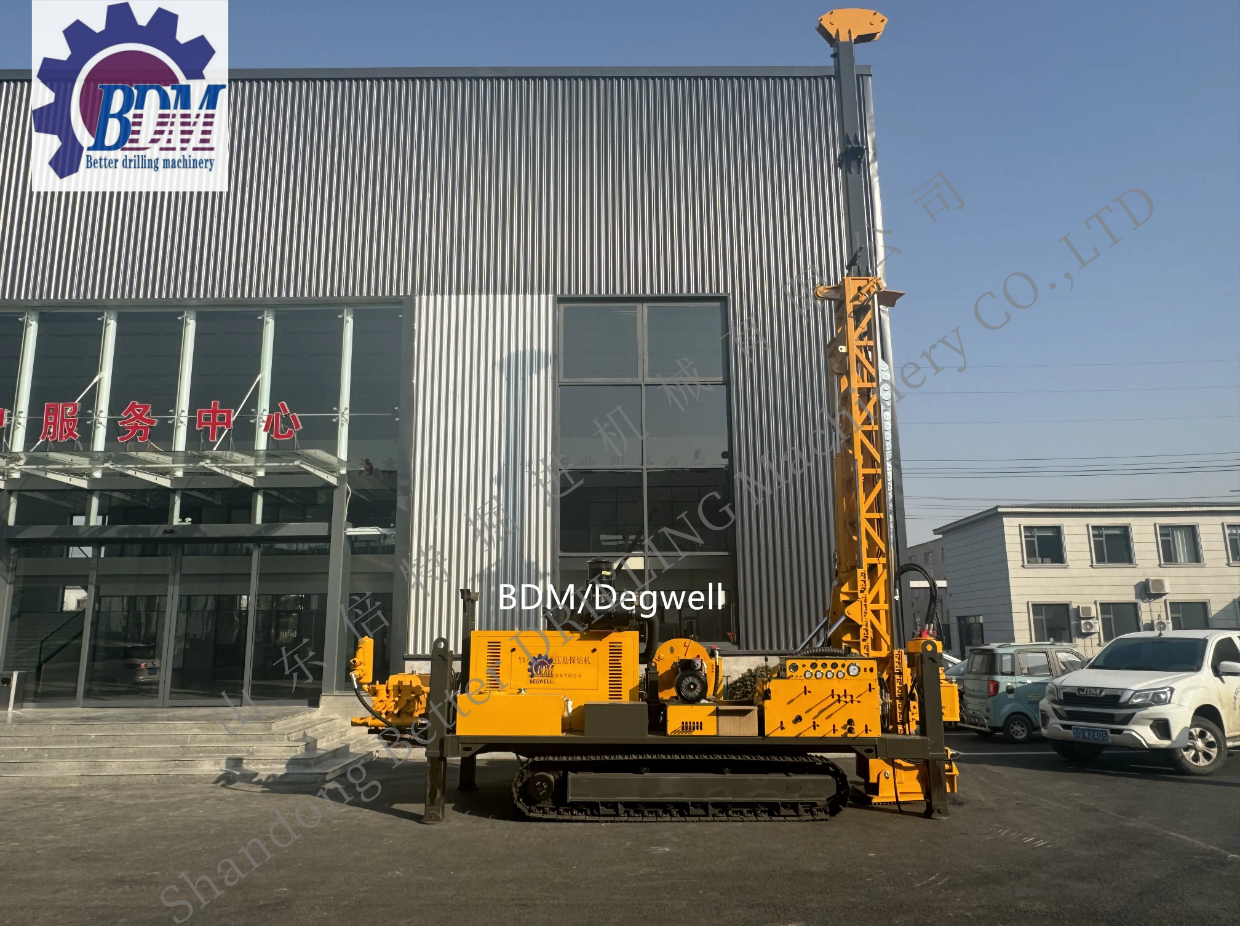

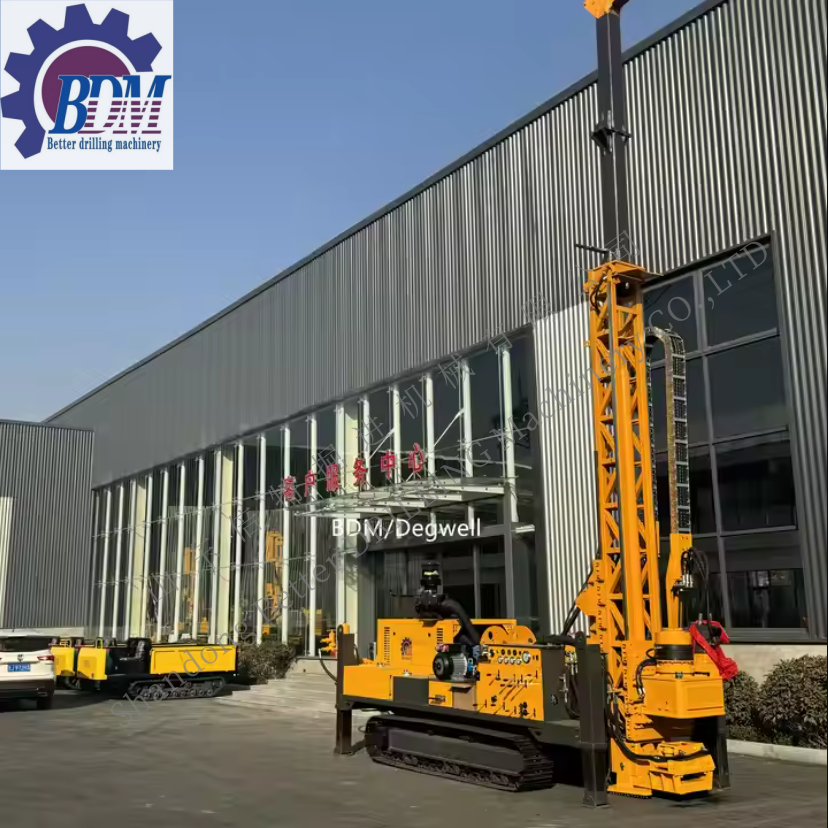

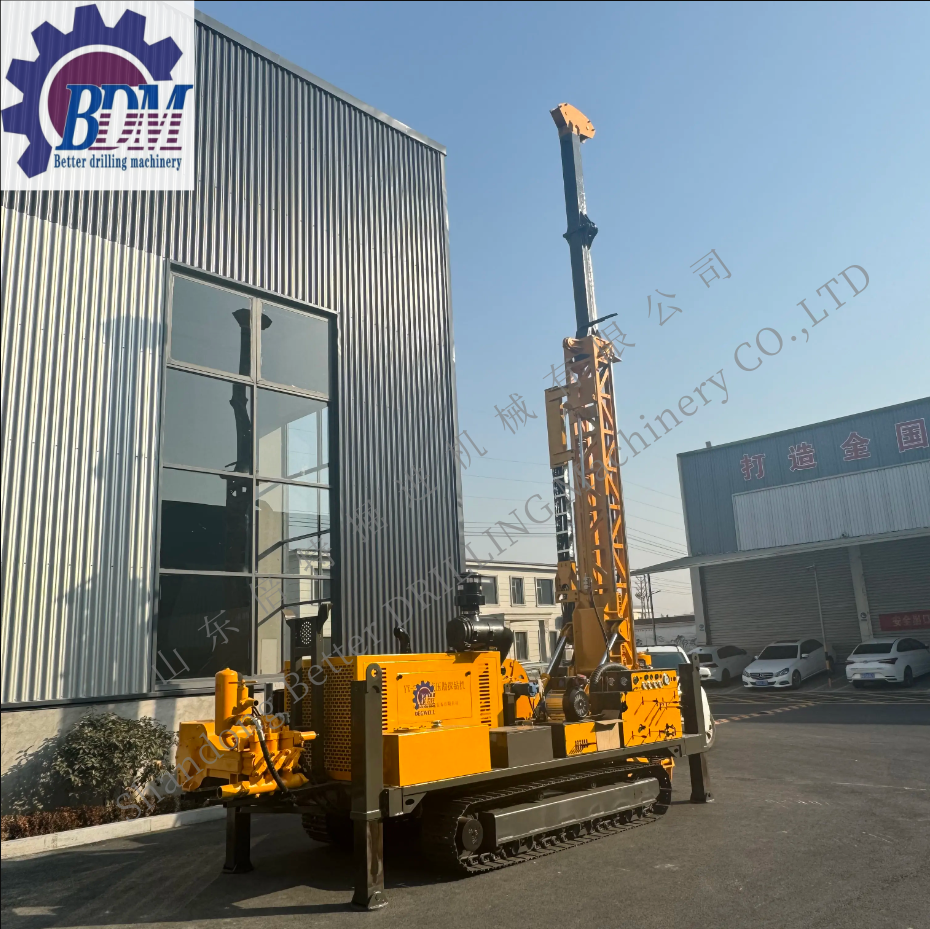

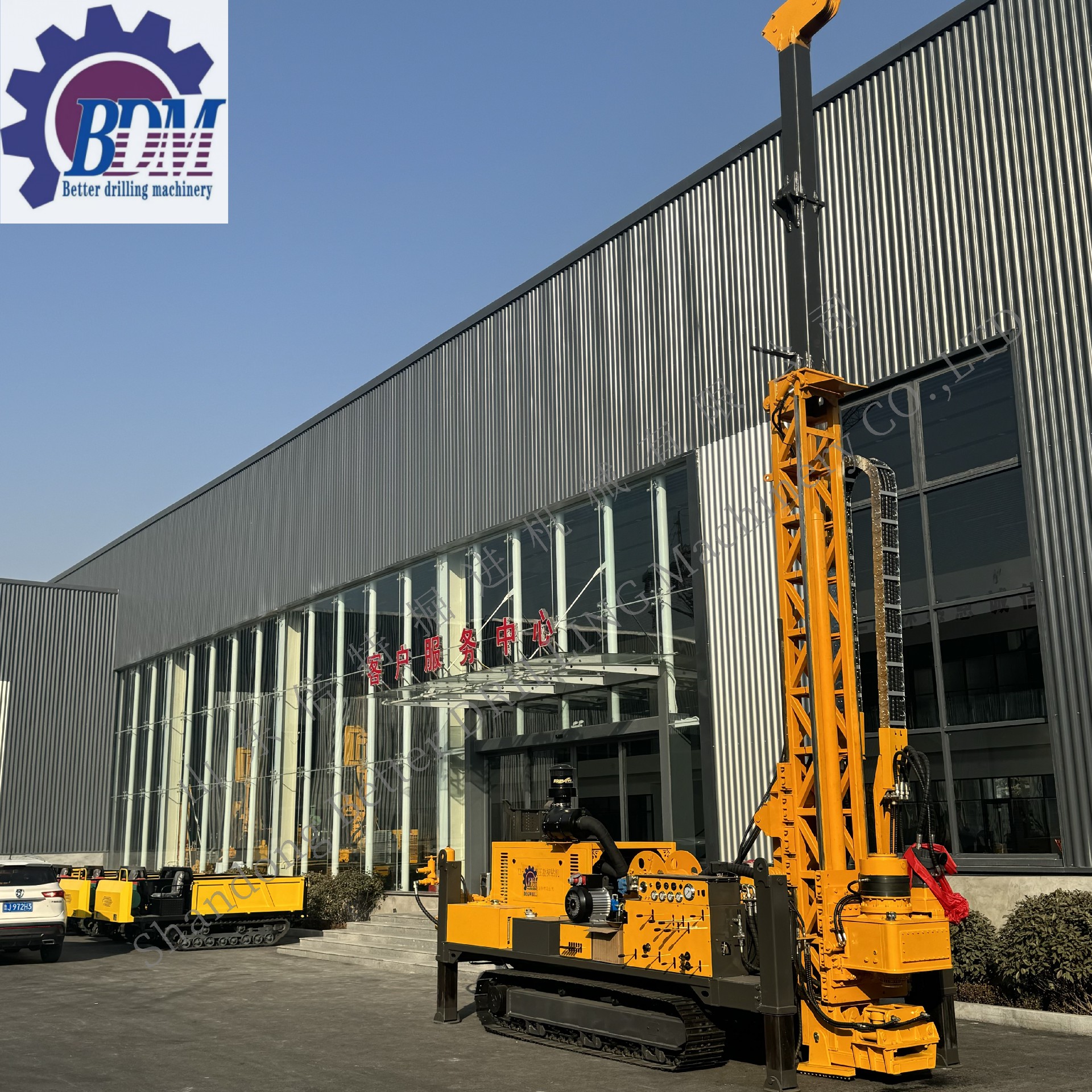

BDMYC-2000 Fully Hydraulic Core Drilling Rig with Rope Extraction Mechanism


Product technical parameters:

Multi-function steel crawler hydraulic wireline drilling rig technical figures
Drilling depth	2000m
Dilling diameter	NQ BQ HQ(BTW,NTW,HTW)ETC
Diesel engine power
Engine power	162w
Engine brand	Yuchai engine power
Drive type	Turbo charge
Rotary speed	2400R/min
Hydraulic system
Mast Type	Hydraulic control on ground
Feeding length	3800mm
Dnlling mast angle	45-90°
Lifting force	38 tons
Feeding force	15 tons
Transmission type	Low high gear box
Wireline winch and main winch.Double winch
Lifting force	1000kgs
Rotary speed	100-400RPM
Diameter of steel wire rope	6mm
Rope capacity	2000m
Vice winch capaaty	45mp
Model	BW-320L triplex mud pump
Flow	320
Pressure	8Mpa
Rig machine dimension
Transport size	629322102762mm
Other device equipment on the rig(option)
SPT device	Hydraulic type
Main winch	Hydraulic for rod tools
