drilling  capacity

caliber

HTW-NTW-BTW

depth

350-700-800(M)

Rated   pressure

20(MPA)

Hydraulic    system

Rated  flow  rate

220(L/min)

Heat     dissipation method

air cooling

brand

yuchai

engine

type

Turbocharging

Rated      speed

2400rpm

Rated   power

132KW (Six-cylinder)

torque

450-1300N.m

Drilling system

speed

1300rpm

Tower   type

Integrated bottom touch

Go   ahead   with    the   process

1900mm

Drilling tower angle

45-90°

Boosting         power

16T

Give      in      strength

8T

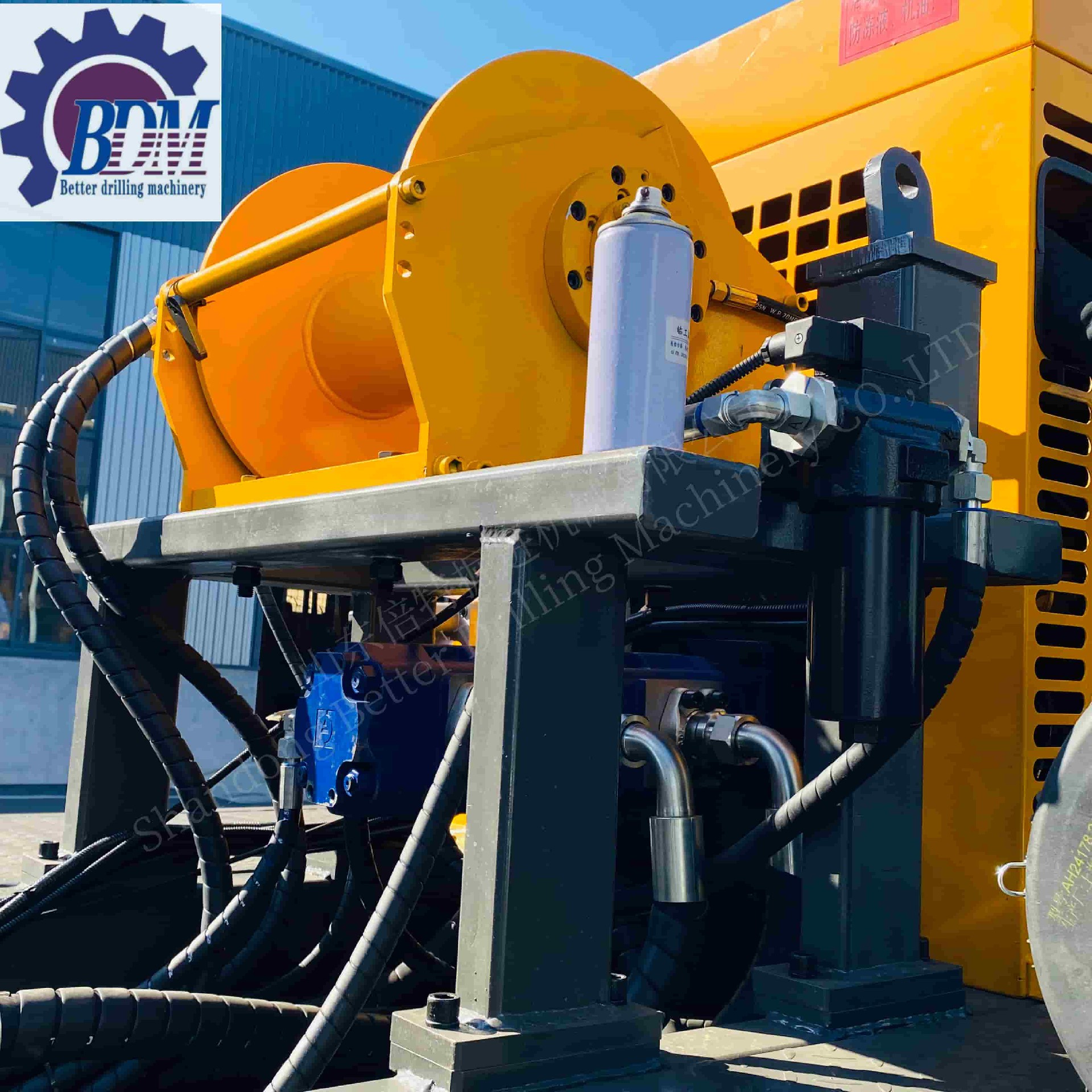

Rope   hoist

Transmission      type

Gearbox

Boosting       power

600KG

speed

100-300rpm

Diameter   of  steel   wire   rope

6mm

Walking   system

Rope         capacity

700m

Operation     type

Manual

Walking      speed

120Km/h

Climbing             angle

40°

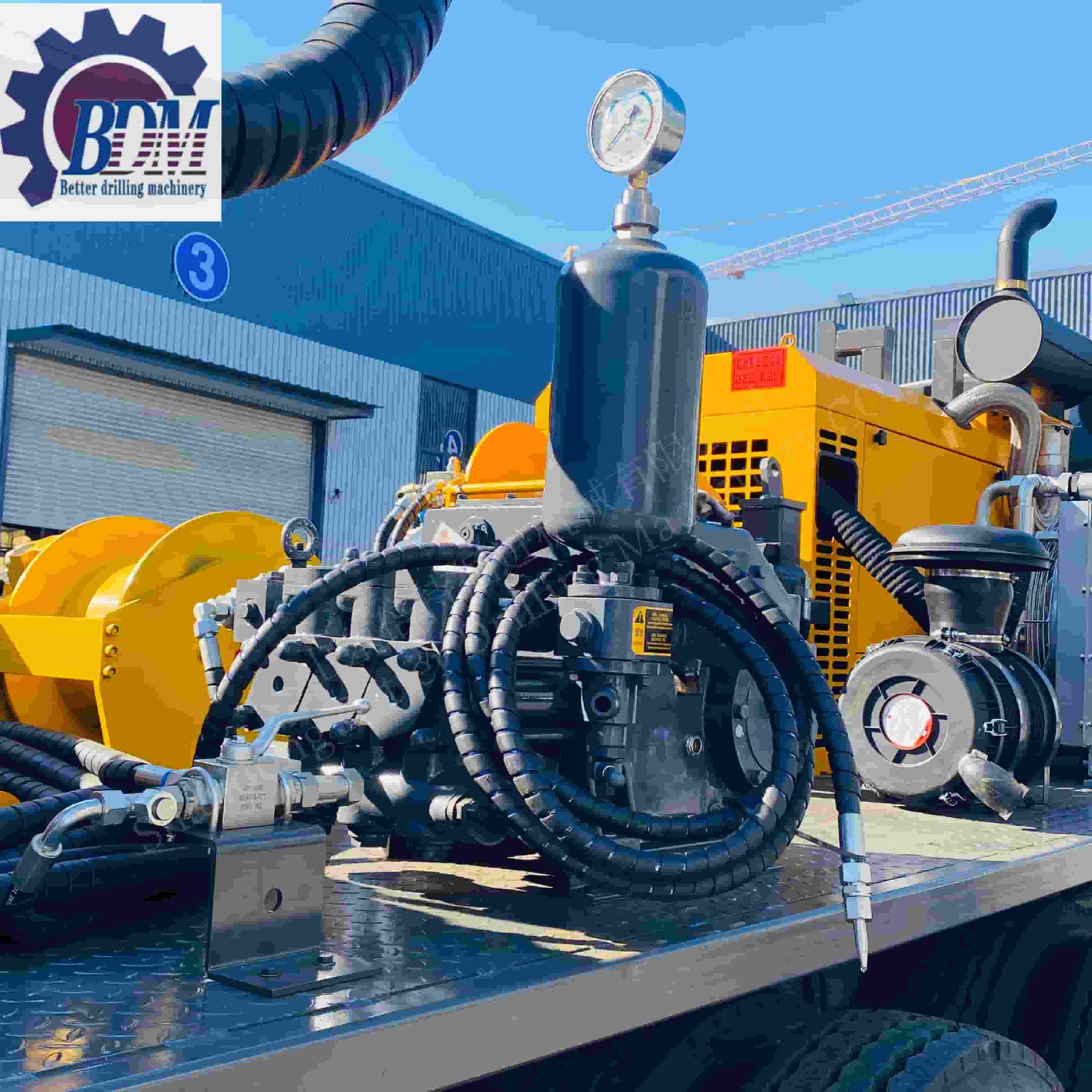

mud  pump

model

BW-120

flow

0-120l/min

pressure

0-7MPa

Size   and   weight

Transport        size

8900*2800*2850mm

Whole  machine   weight

15.8T
