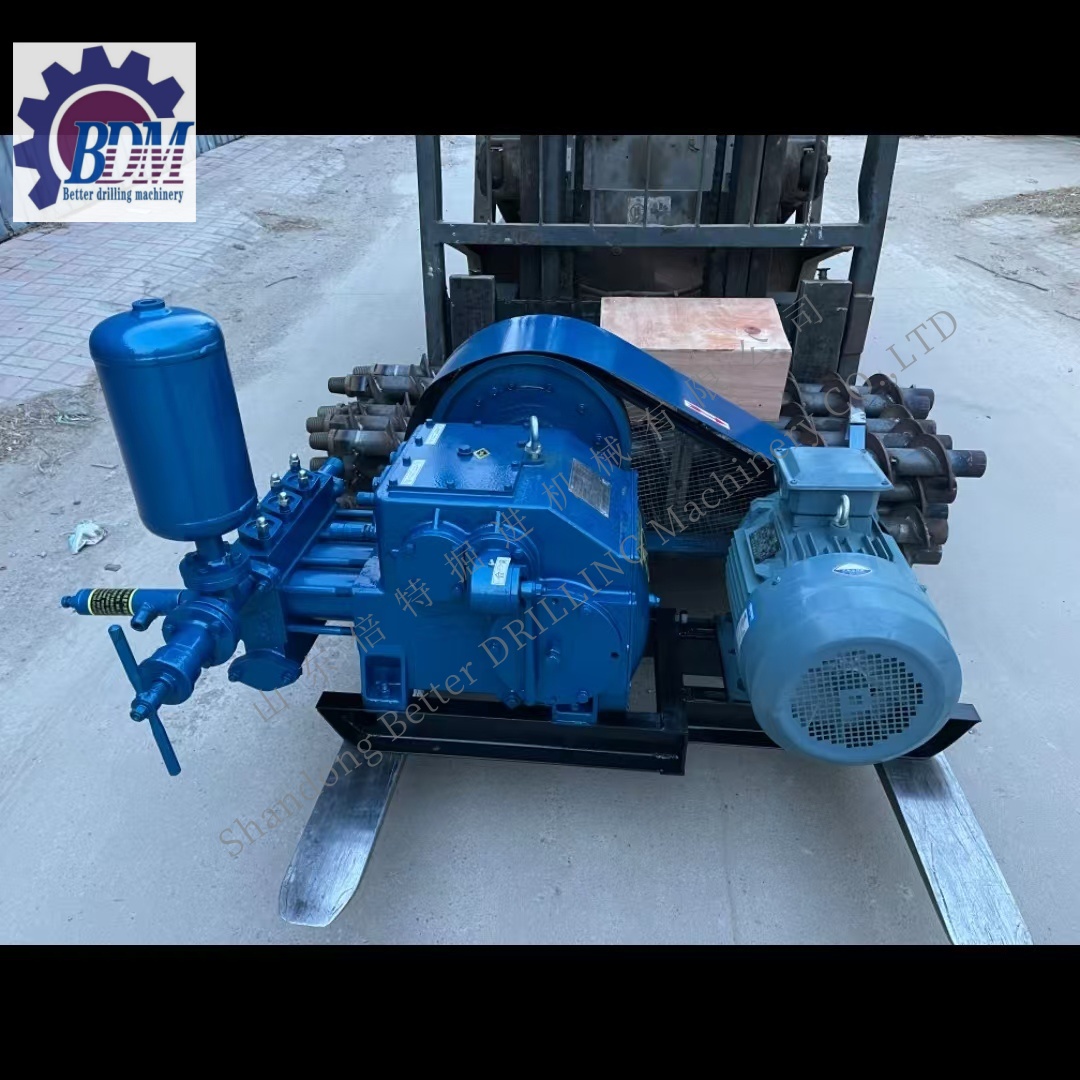

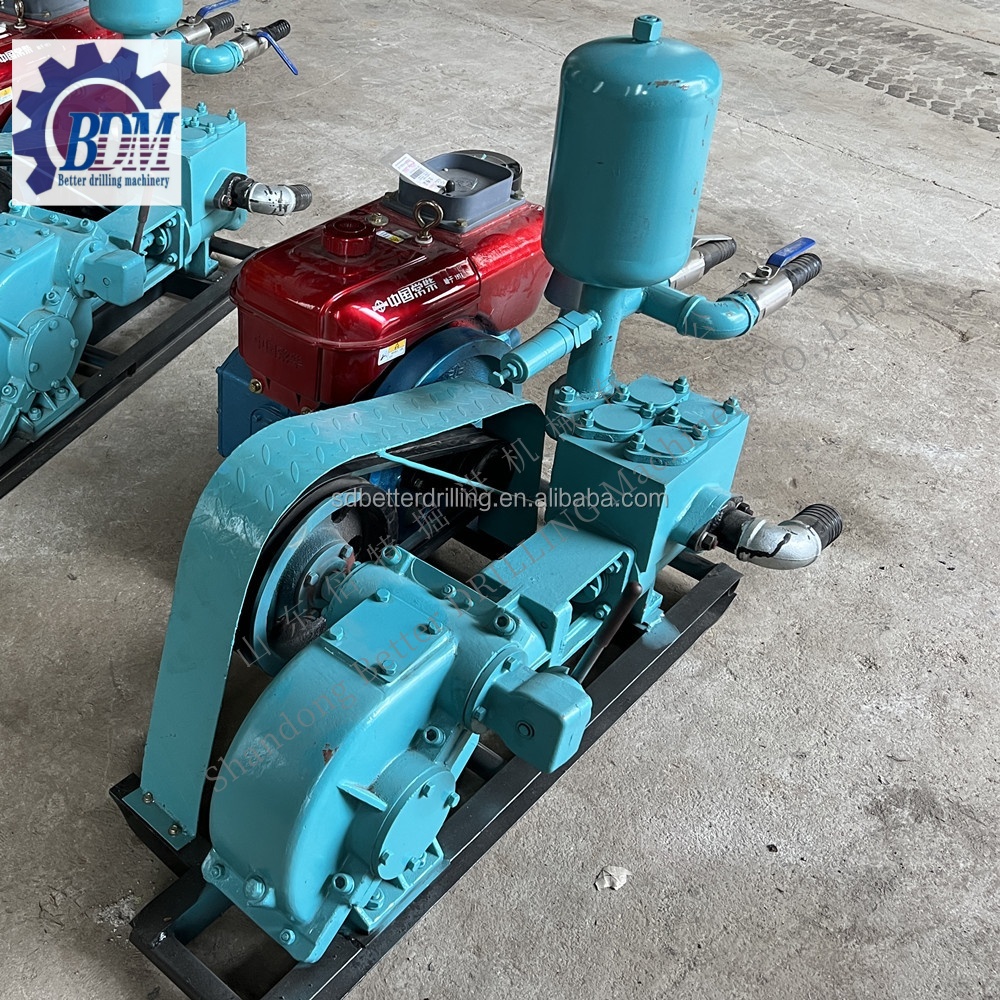

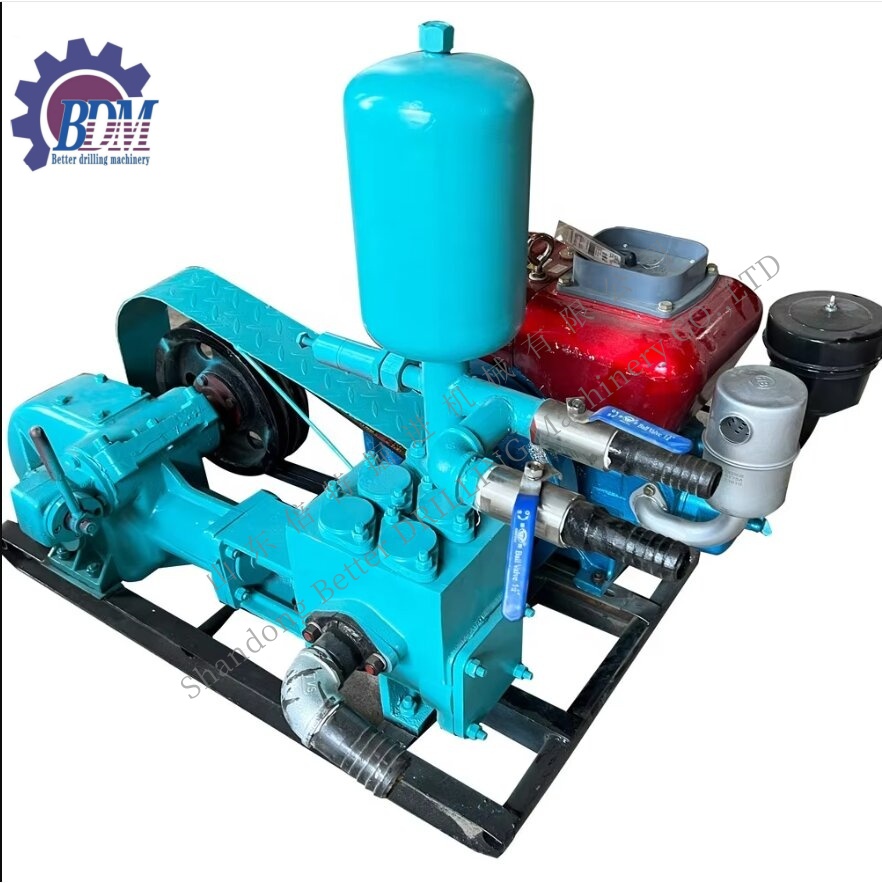

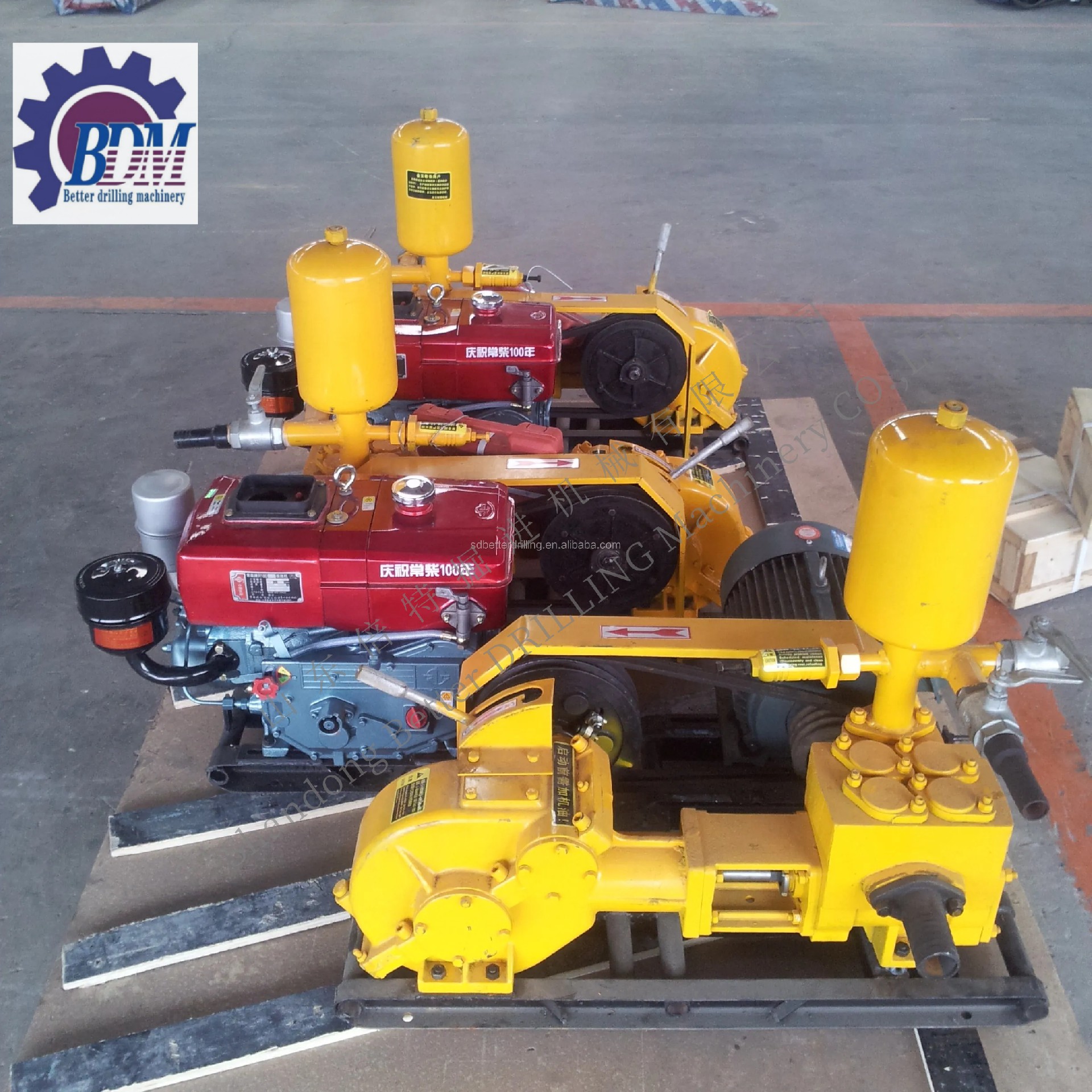

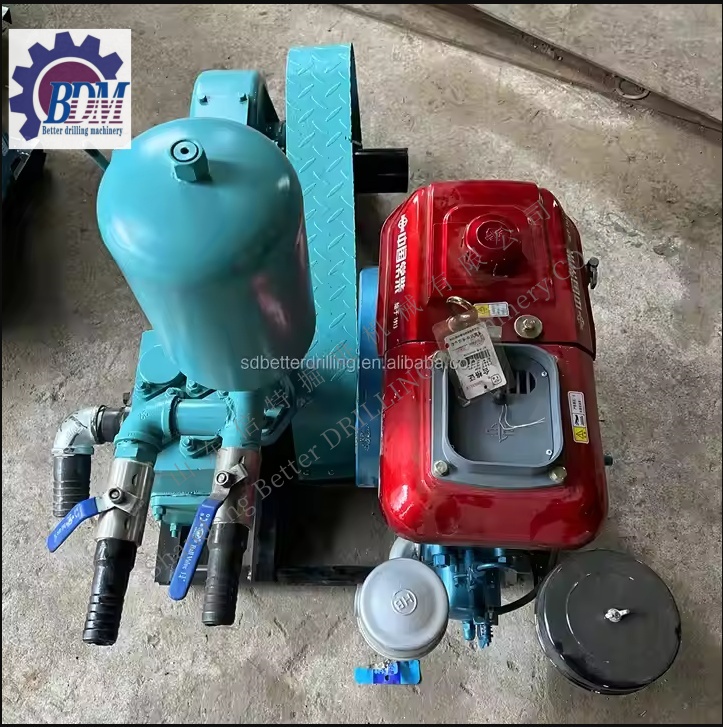

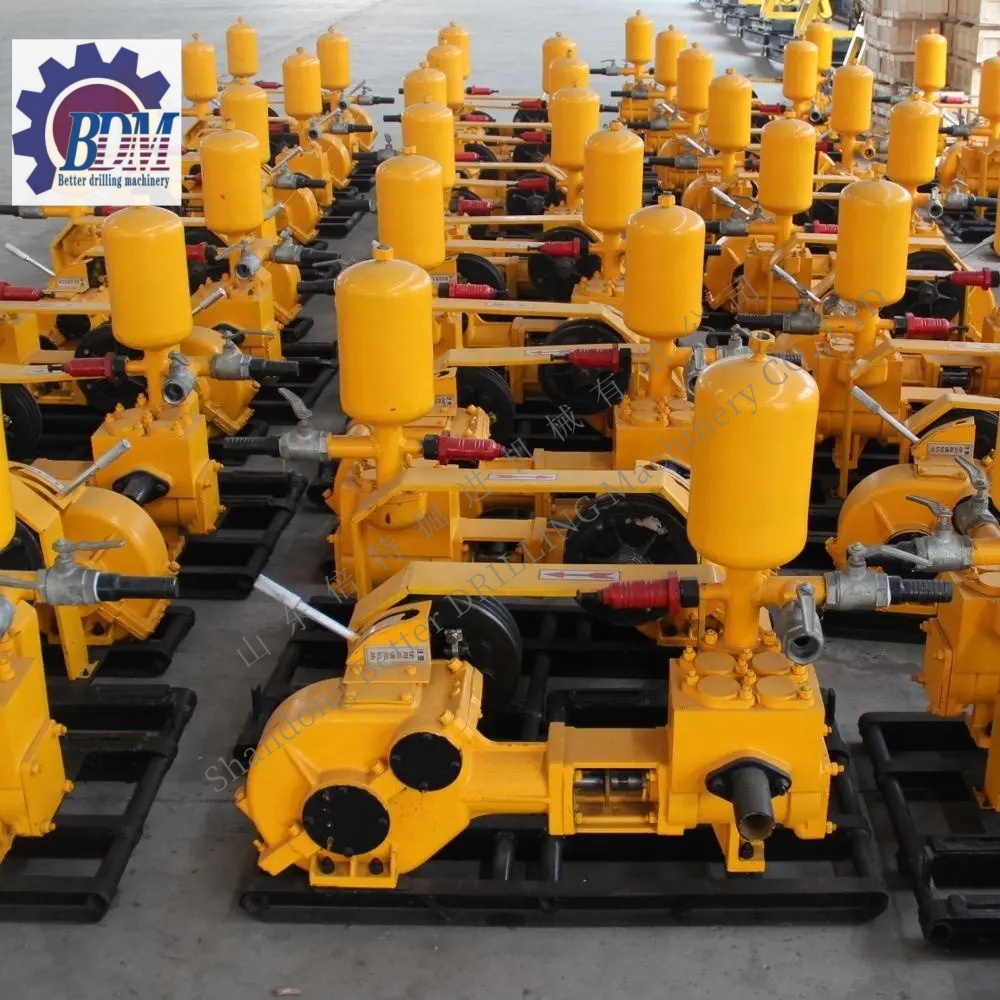

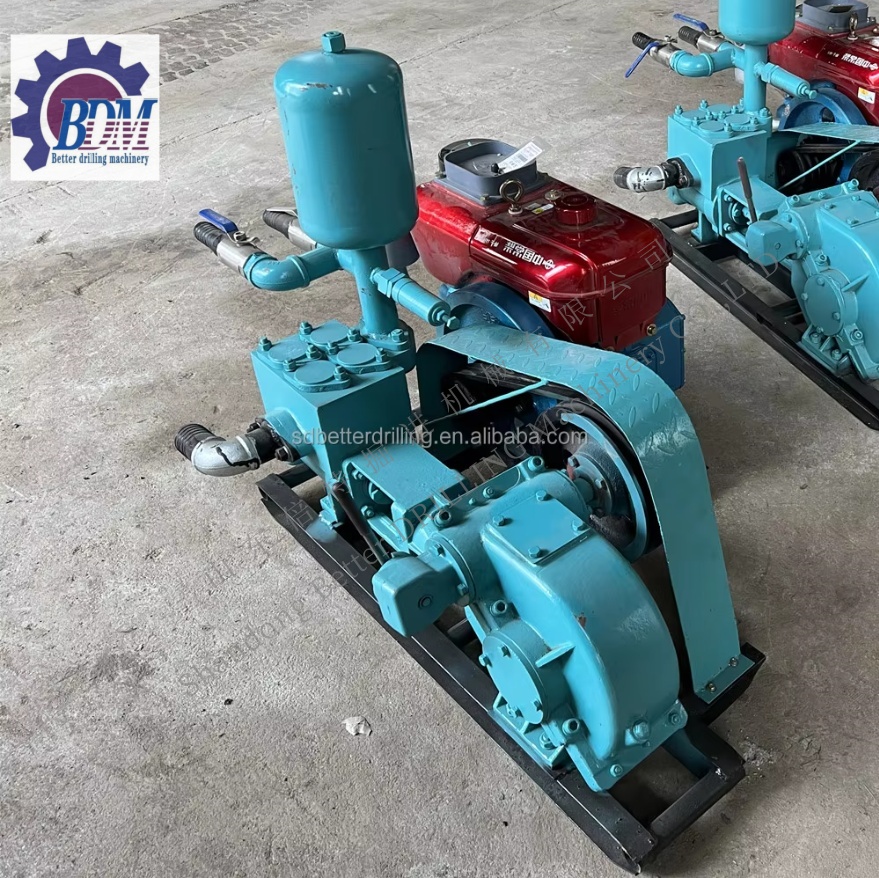

BW-160 Mud Pump

Addtime：2025-05-20

Phone：0086-13165490800

Product Brief：It's used for drilling water well, have high presuress, fit diesel engine or eletric motor.

BW-160 Type Mud Pump

BW160型泥浆泵技术规格

Technical specifications of BW160 mud pump

型式 Type	卧式双缸往复双作用活塞泵 Horizontal double cylinder reciprocating double action piston pump
行程（mm） Stroke	70
泵速（次/min） Pump speed	70
缸径（mm） Cylinder diameter	200	132	83	55
流量（L/min） Flow	160	107	67	44
压力（MPa） Pressure	2.5	4	6.5	10
出浆管直径 Outlet pipe diameter	32
进浆管直径 Inlet pipe diameter	51
功率（Kw) Power	11
外形尺寸（mm） shape size	*1450745970*
质量（kg） Weight	430
