compression engine

type

Screw single stage compression oil cooled

discharge rate

m3/min

18

discharge pressure

bar

18

Driving methods

The coupling is directly connected and the diesel engine drives

Oil and gas tank capacity

L

147

Lubricating oil quantity

L

65

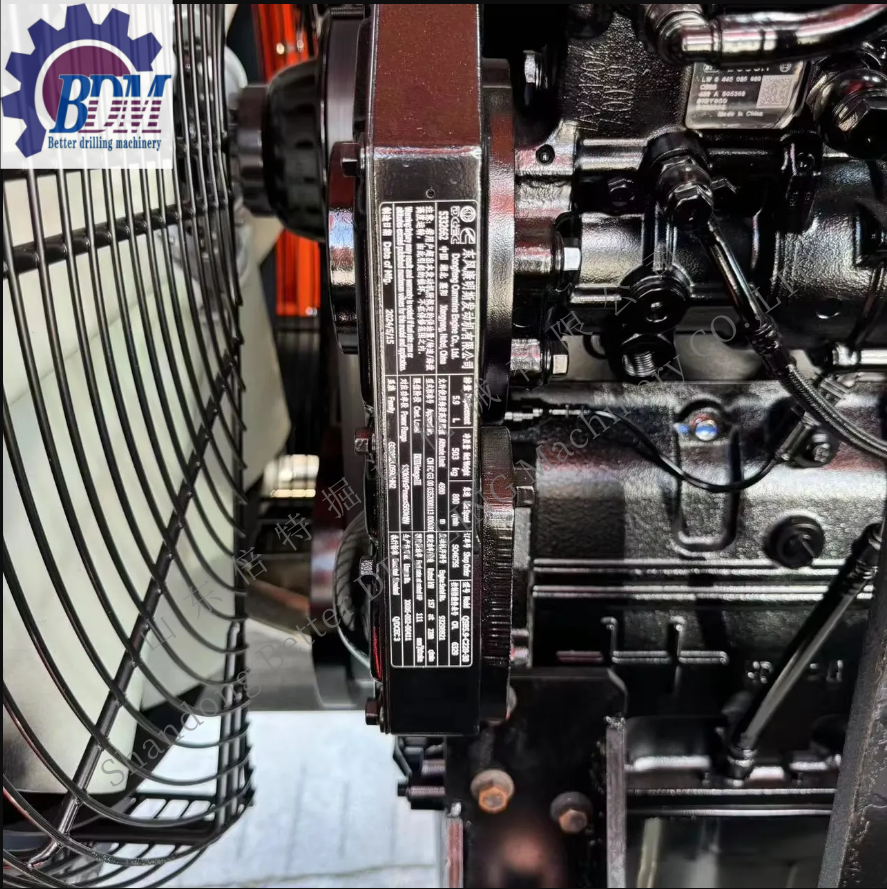

engine

manufacturer

Dongfeng Cummins

model

6BTAA5.9-C205

form

Water-cooled four-stroke, direct injection

number of cylinders

6

power rating

kw

153

rated speed

rpm

2200

unloaded speed

rpm

1400

Lubricating oil quantity

L

18

Cool water volume

L

60

storage battery

6-QW-135Ah×2

Fuel box capacity

L

210

overall unit

Length (including pull rod)

mm

2750 (3900)

wide

mm

2120

High (with muffler)

mm

2010 (2250)

weight

Kg

2700

Exhaust valve

1-G1.5”、 1-G1”
