BDM-400T

Addtime：2025-06-10

Phone：0086-13165490800

Product Brief：The BDM-400T steel tracked water well drilling rig, with a 3-meter drill pipe tower and a hydraulic winch, is equipped with a 93-kilowatt Cummins engine. We have a professional after-sales team and the product is guaranteed for one year.

Introduction: 立即咨询

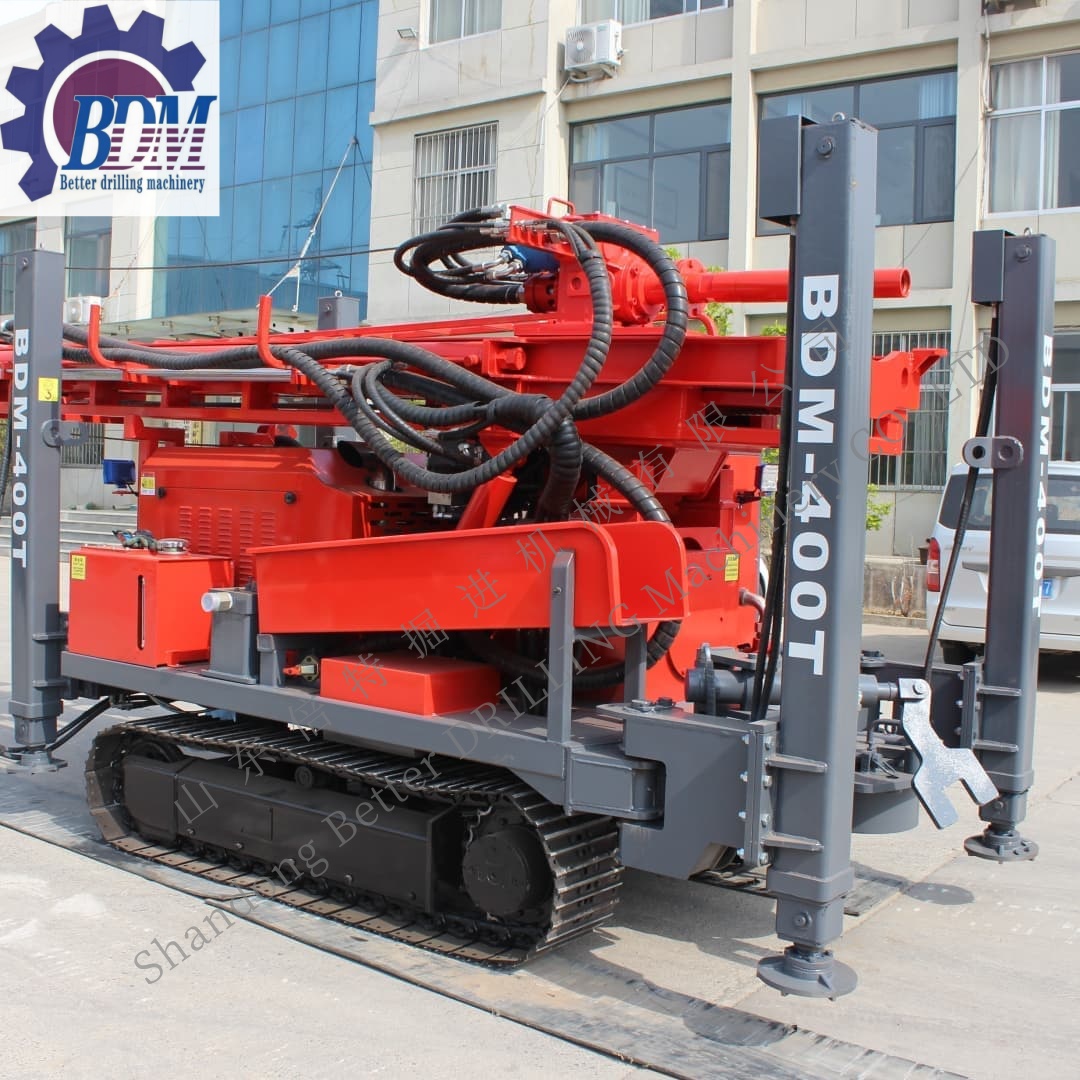

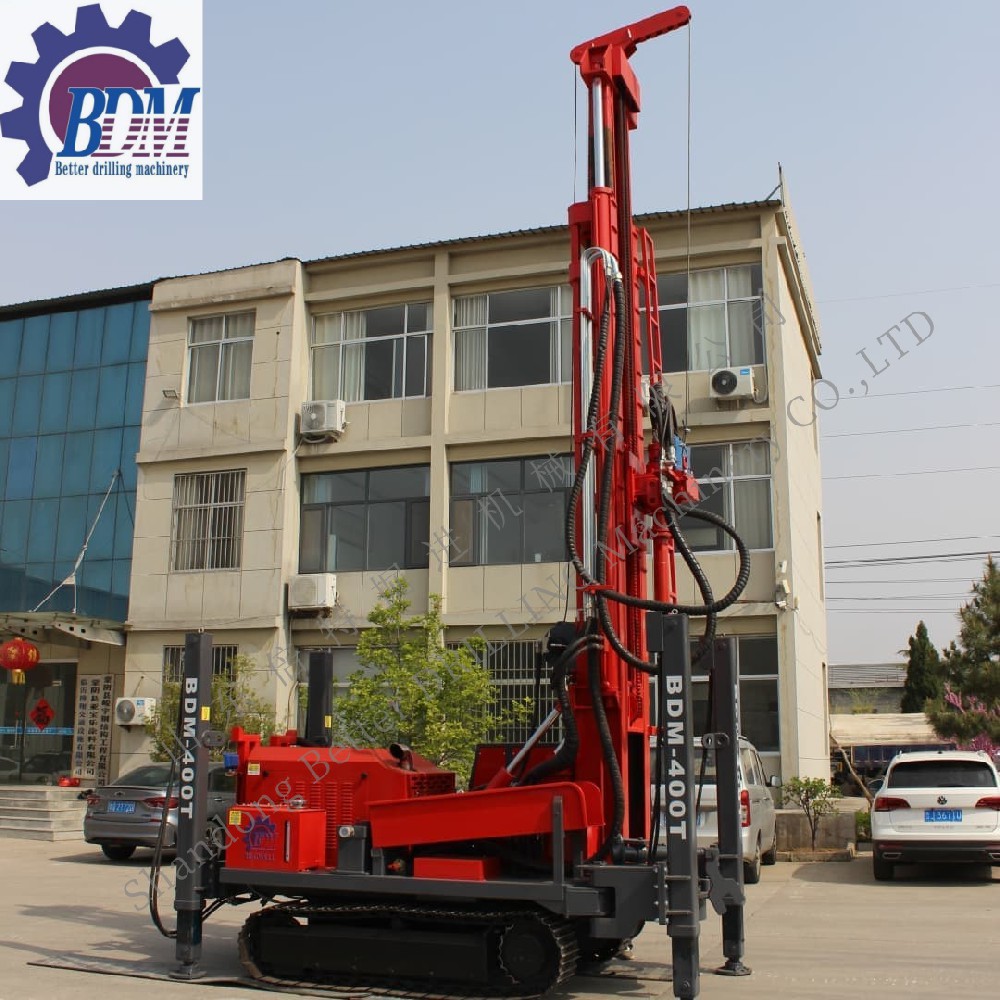

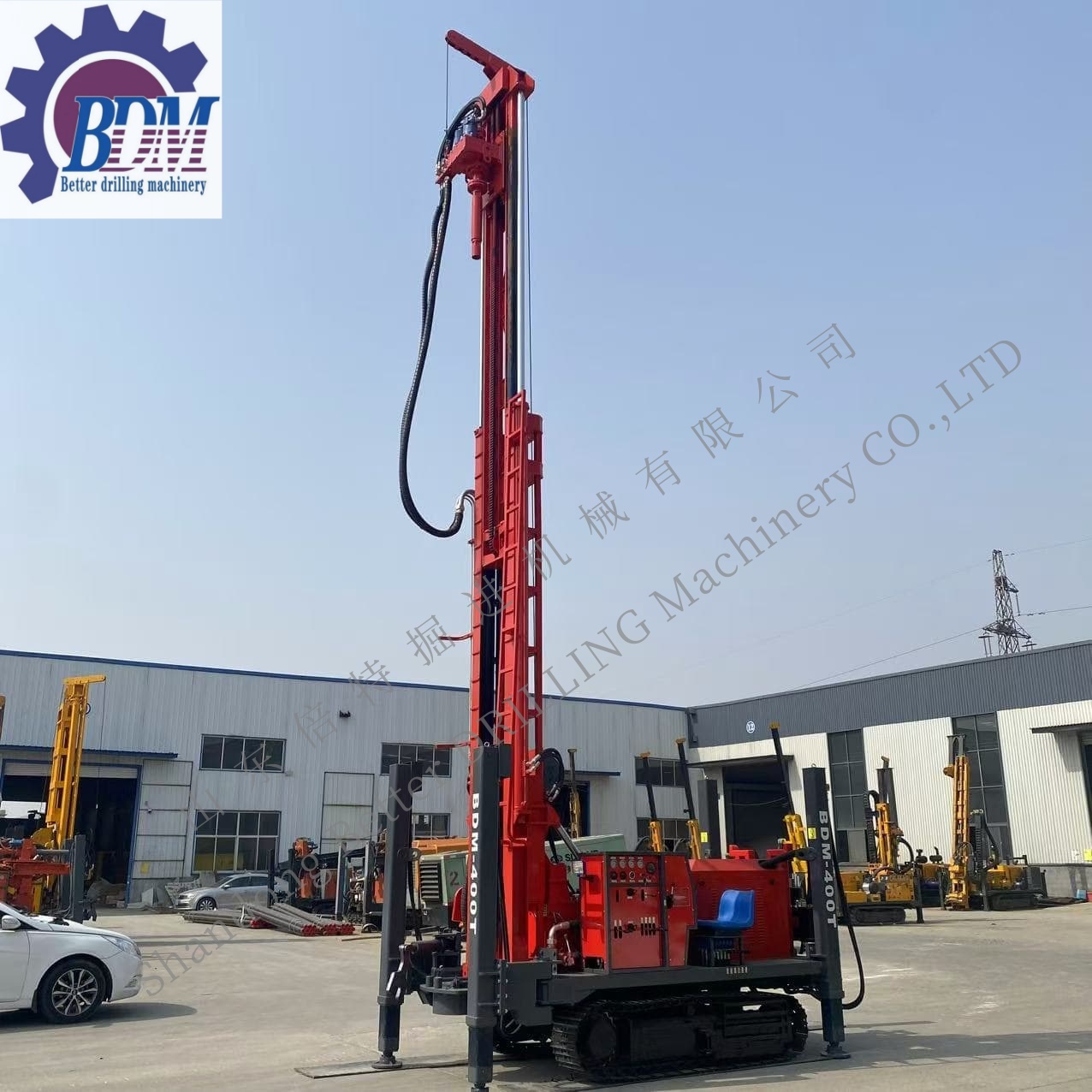

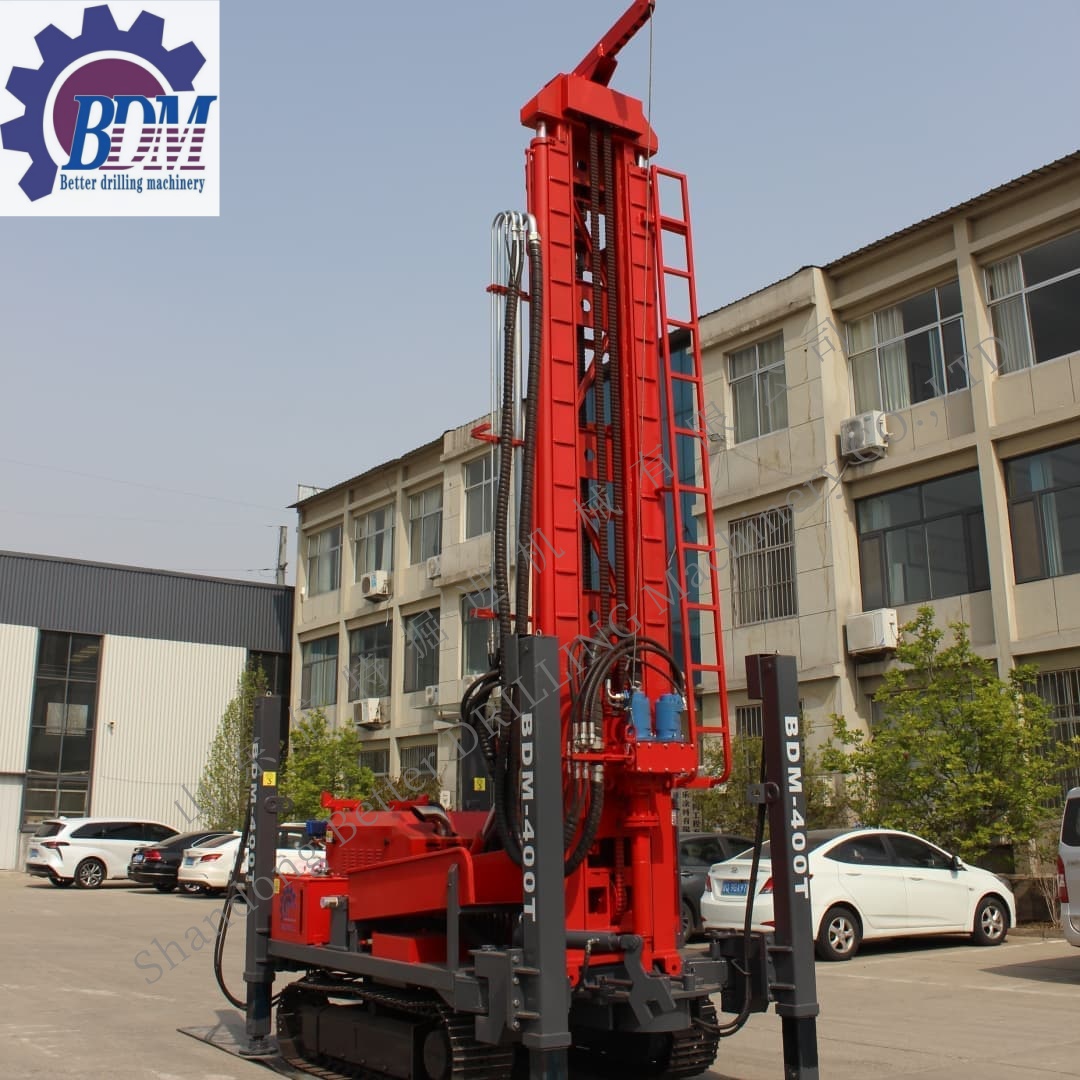

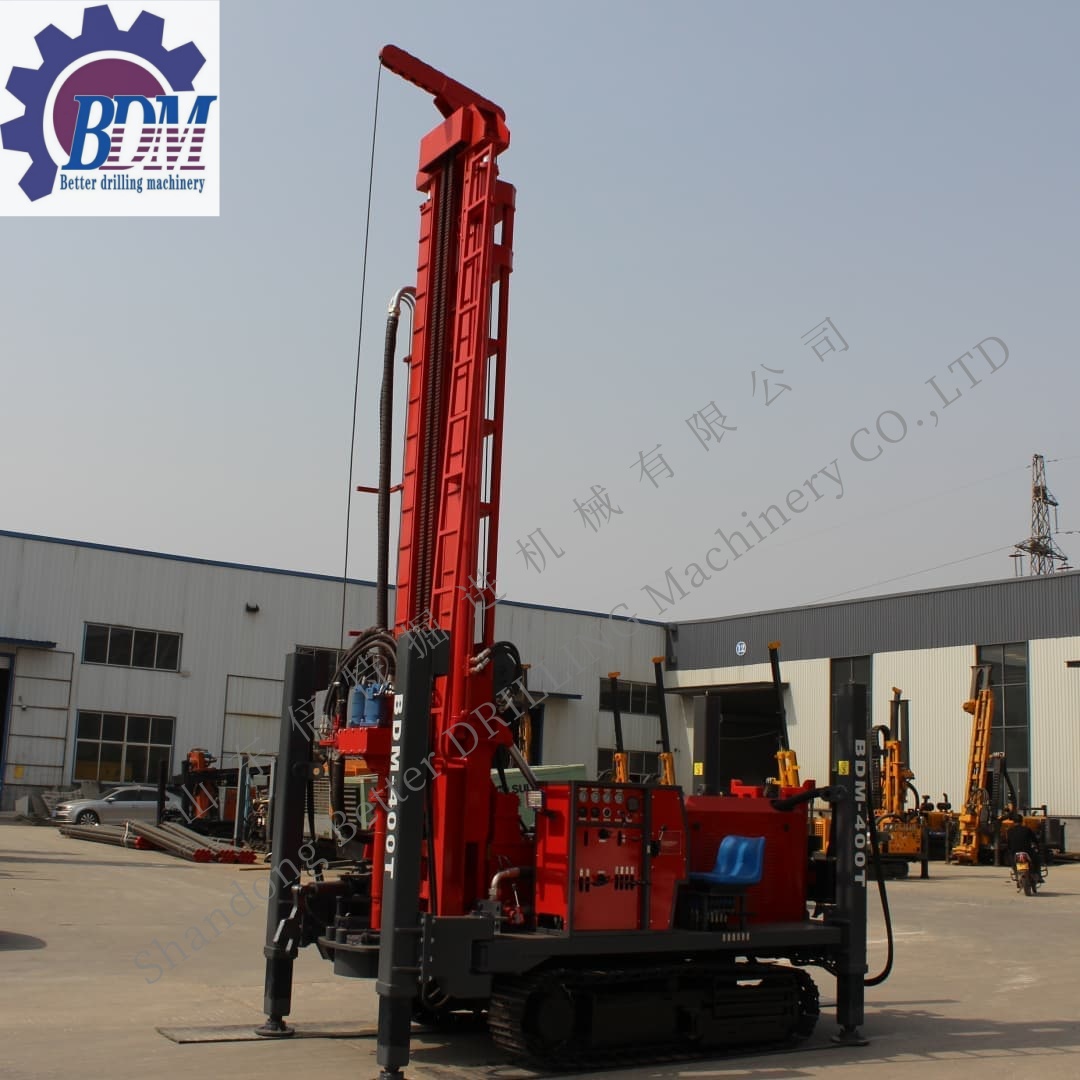

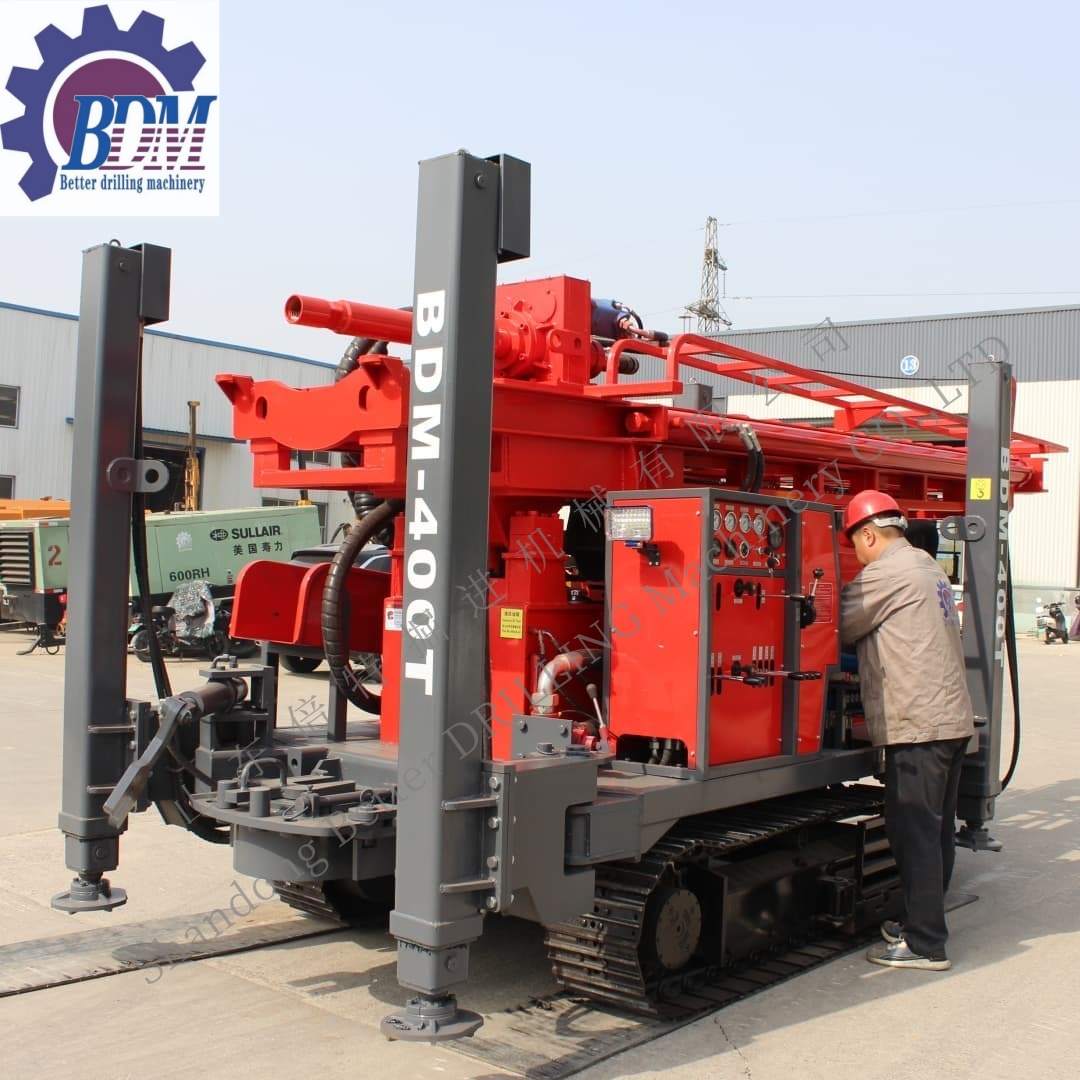

BDM-400T tracked water well drilling rig

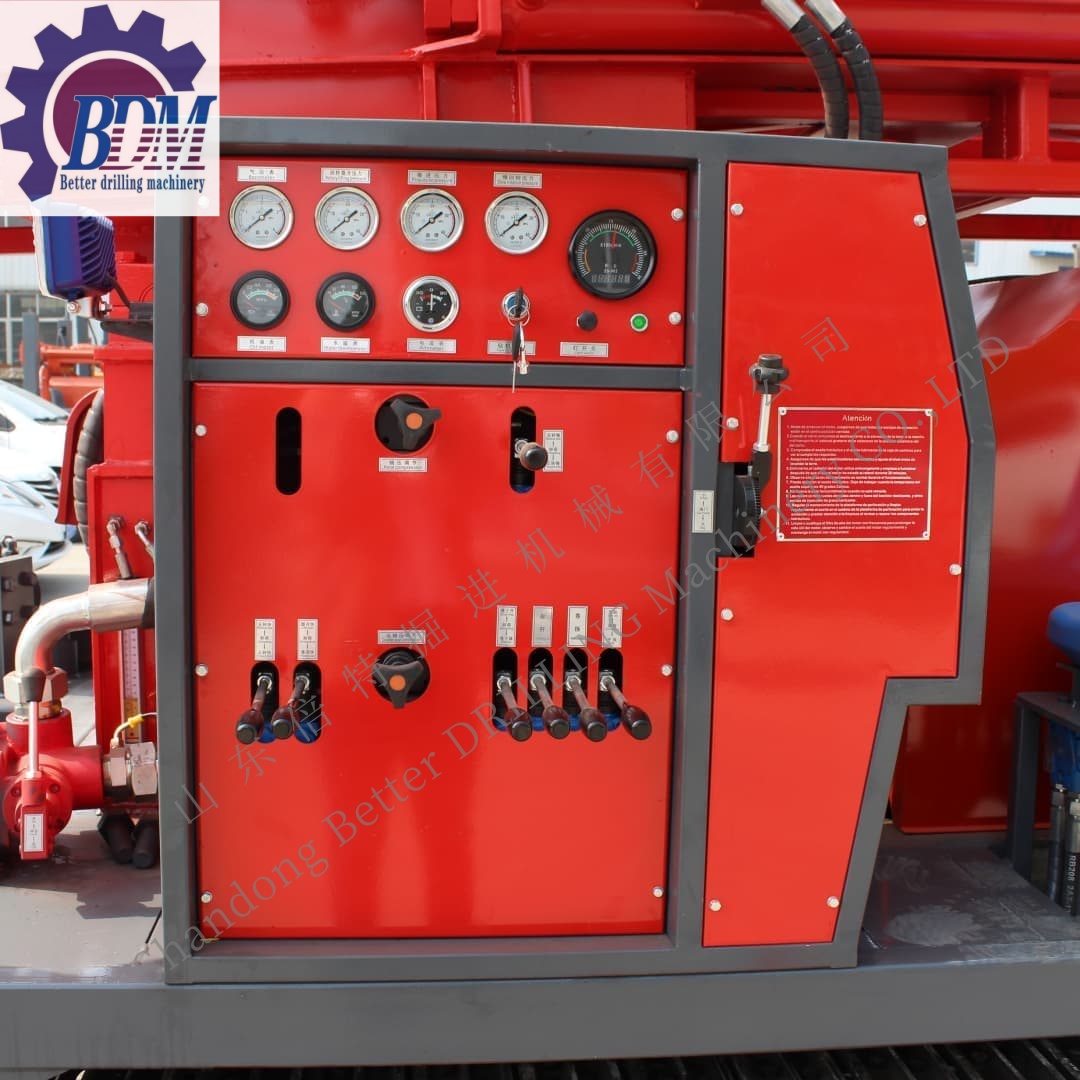

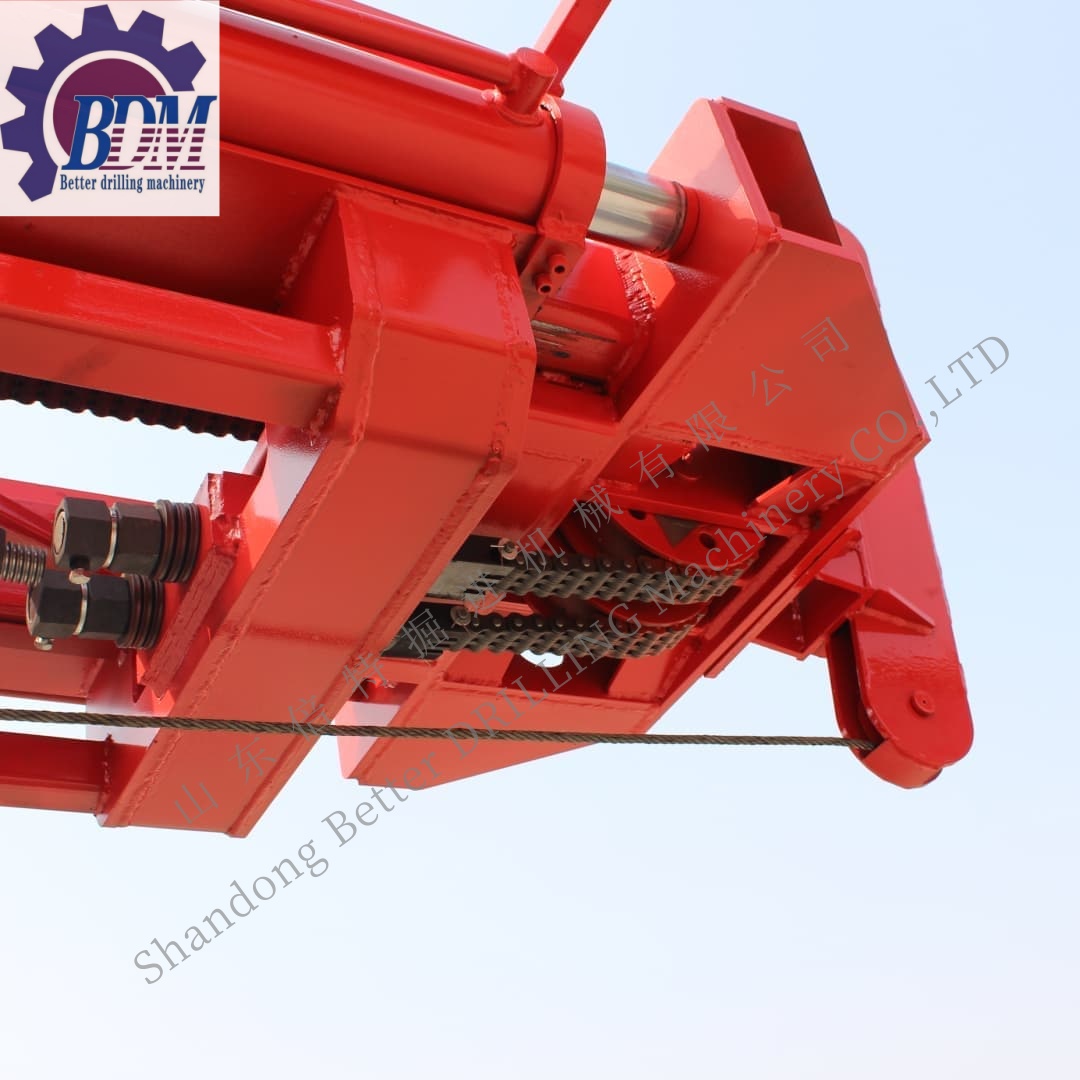

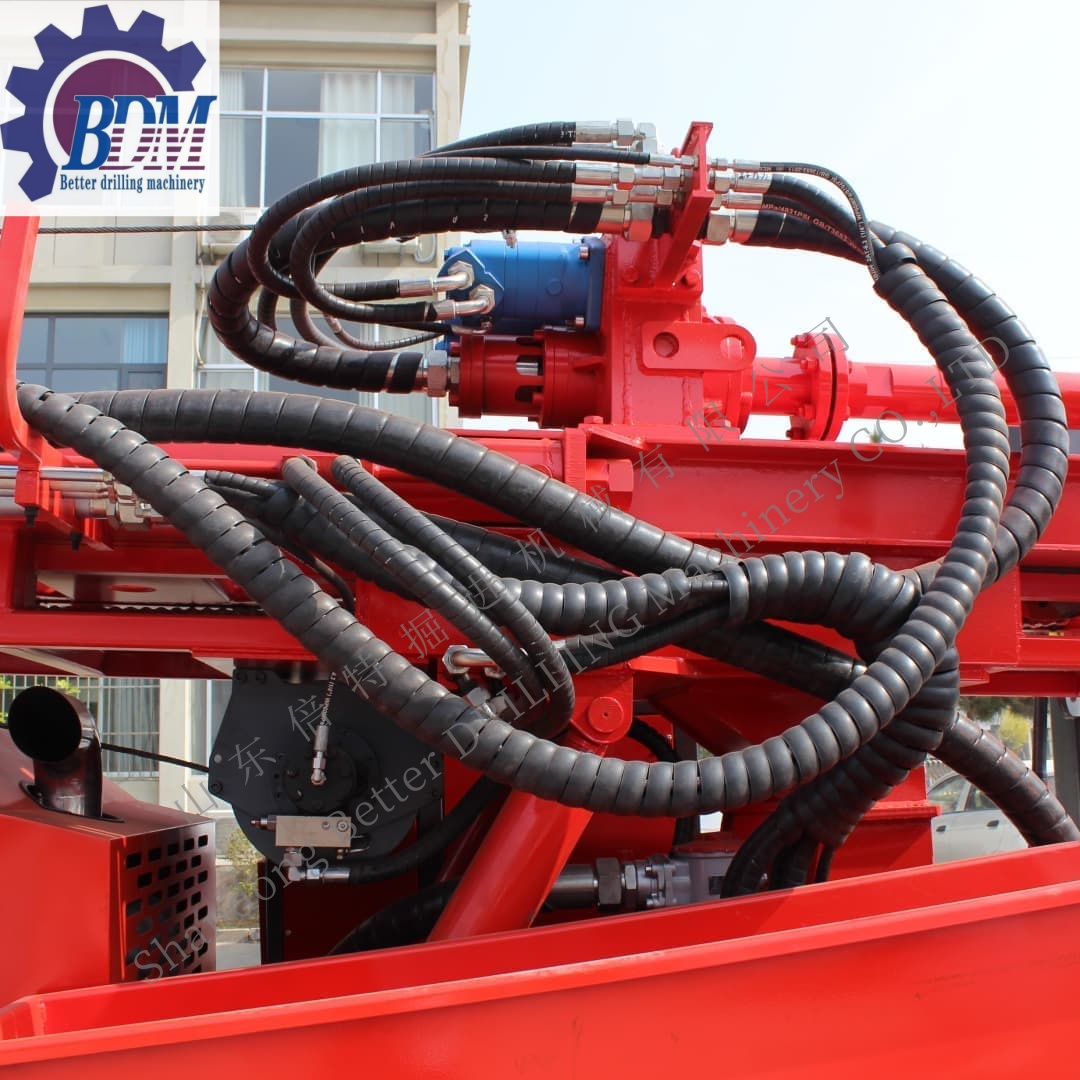

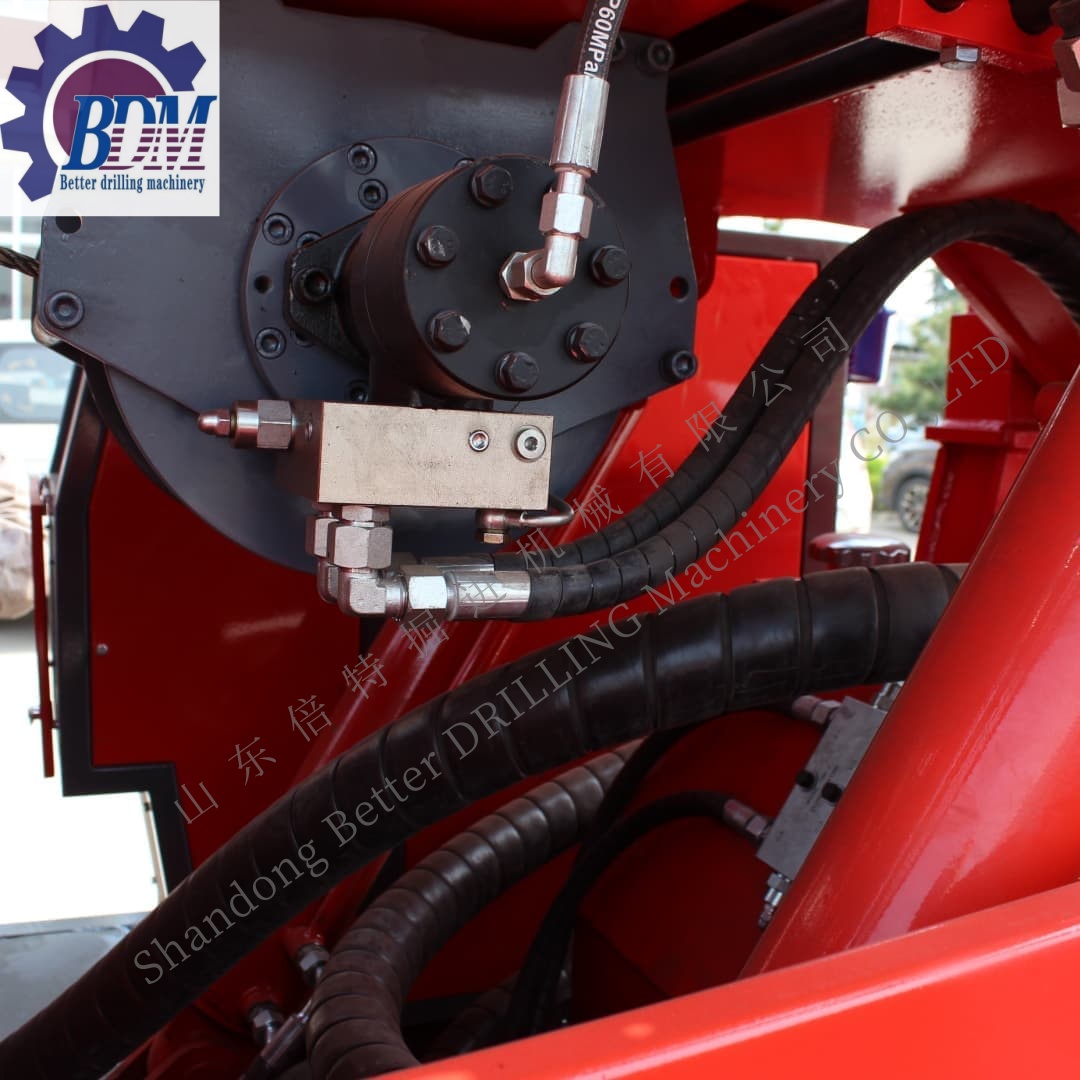

Product detail images：

Product technical parameters：

BDM-400T Technology Specifications
Maximum Drilling Depth	400m
Drilling Diameter	105-325mm
Operating Air Pressure	1.05-3.45MPA
Air Consumption	16-55m³/min
Drill Rod Length	3, 4.5, 6m
Drill Rod Diameter	89.102mm
Axial Force	4T
Hoisting Force	22T
Hoisting Speed	3.0m/min
Advancing Speed	0.5-5m/min
Fast Lifting Speed	30m/min
Fast Feeding Speed	50m/min
Maximum Rotational Torque	7000-9000Nm
Rotational Speed	60-100r/min
Winch Hoisting Force	1.5T
Mud Pump Flow Rate (Optional)	20L/min
High Hydraulic Leg Stroke	1.5m
Penetration Efficiency	10-35M/H
Travel Speed	3.5KM/h
Climbing Ability	30°
Machine Weight	8500KG
External Dimensions	560020002450mm
Engine power	HP130
Suitable Conditions	Loose Layer and Bedrock
