BDMCZ-350YZ

Addtime：2025-06-12

Phone：0086-13165490800
Product Brief：BDMCZ-350YZ Vehicle-mounted Hydraulic Water Well Drilling Rig
Introduction
立即咨询

BDMCZ-350YZ Vehicle-mounted Hydraulic Water Well Drilling Rig

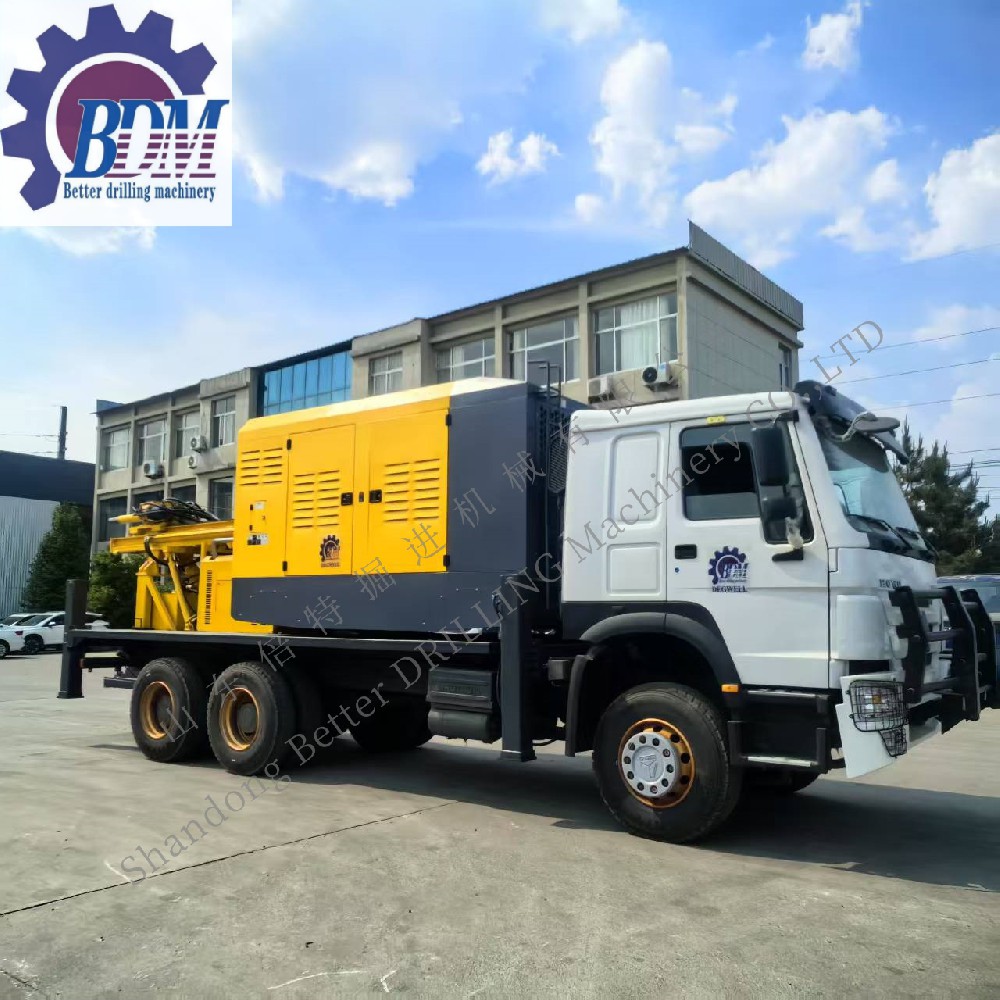

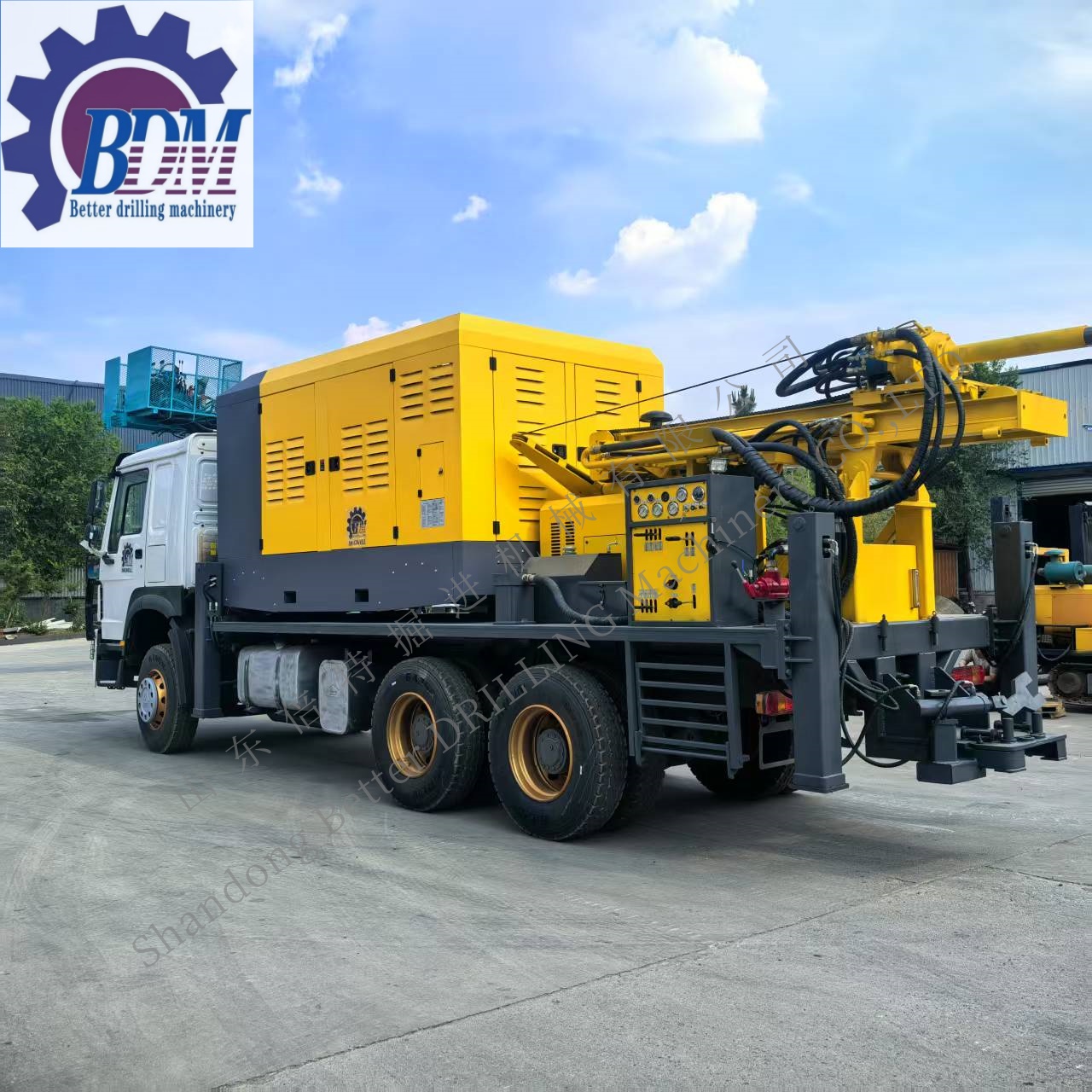

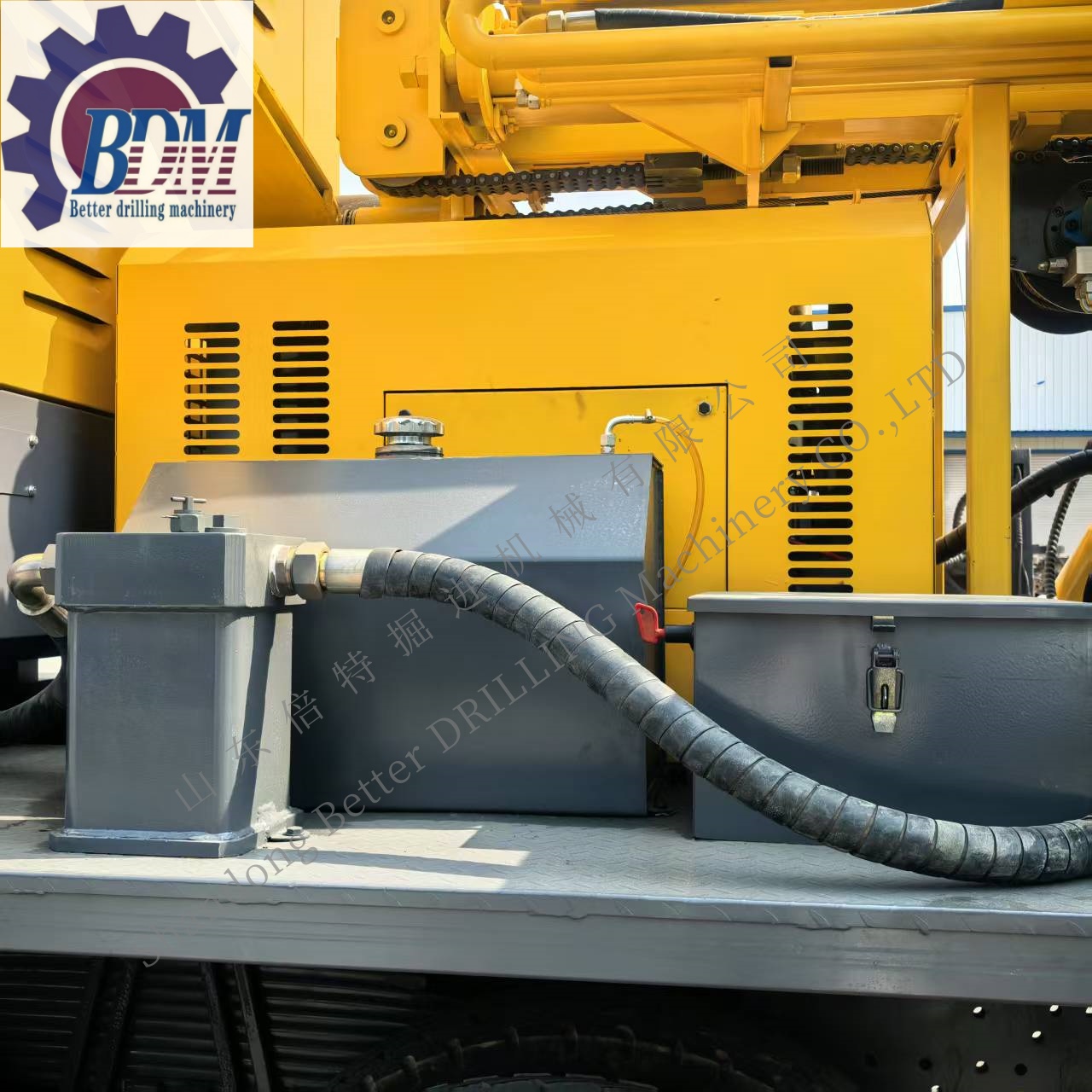

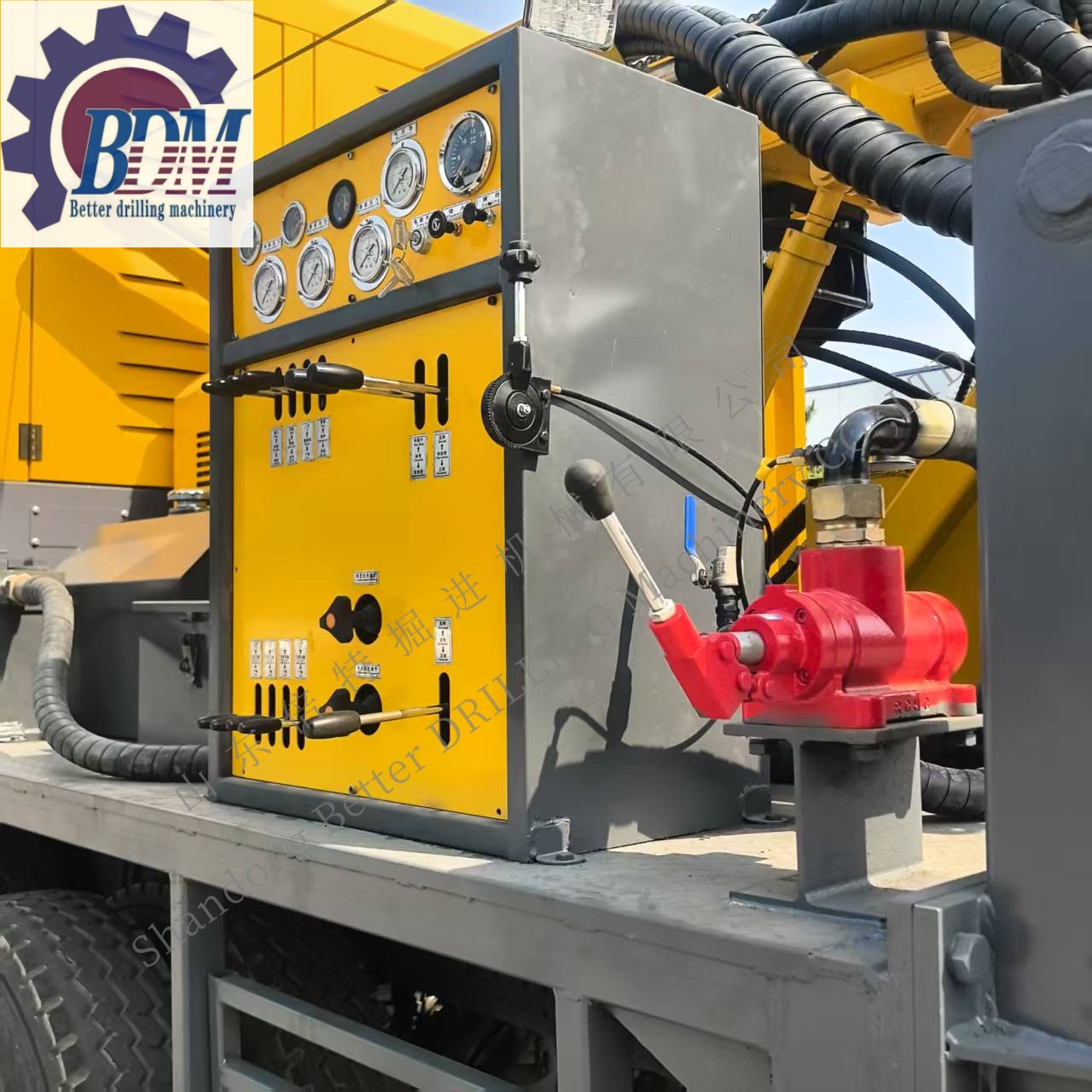

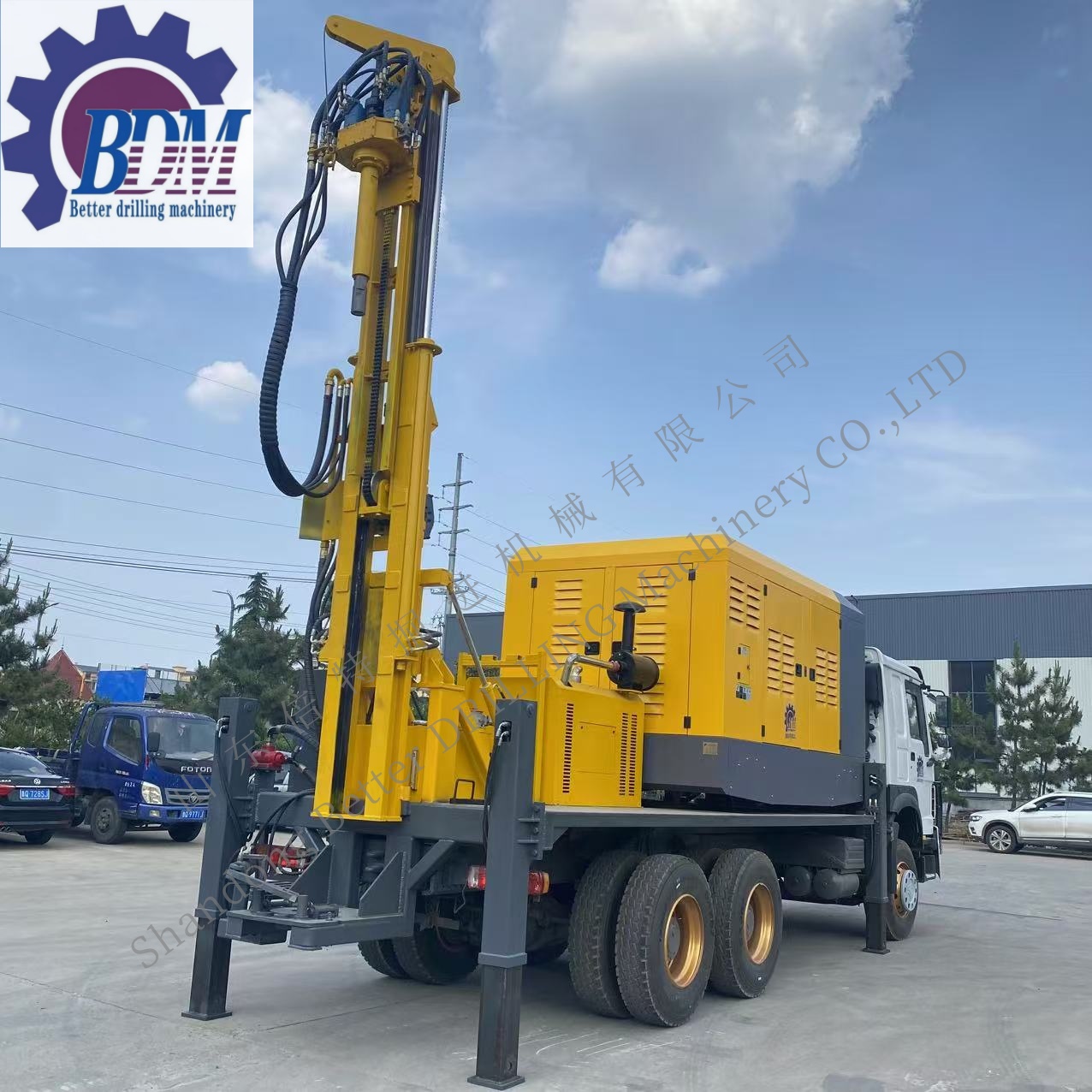

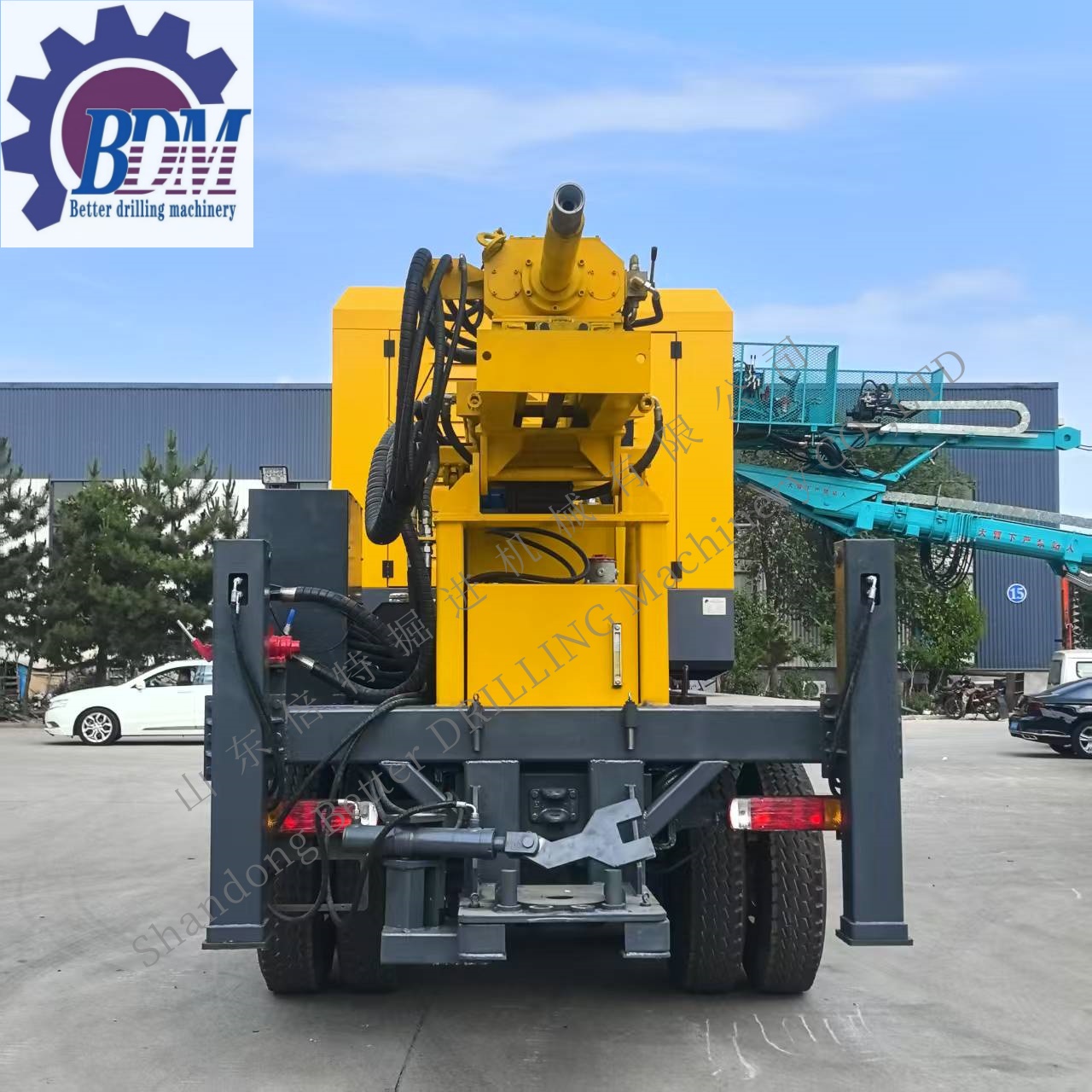

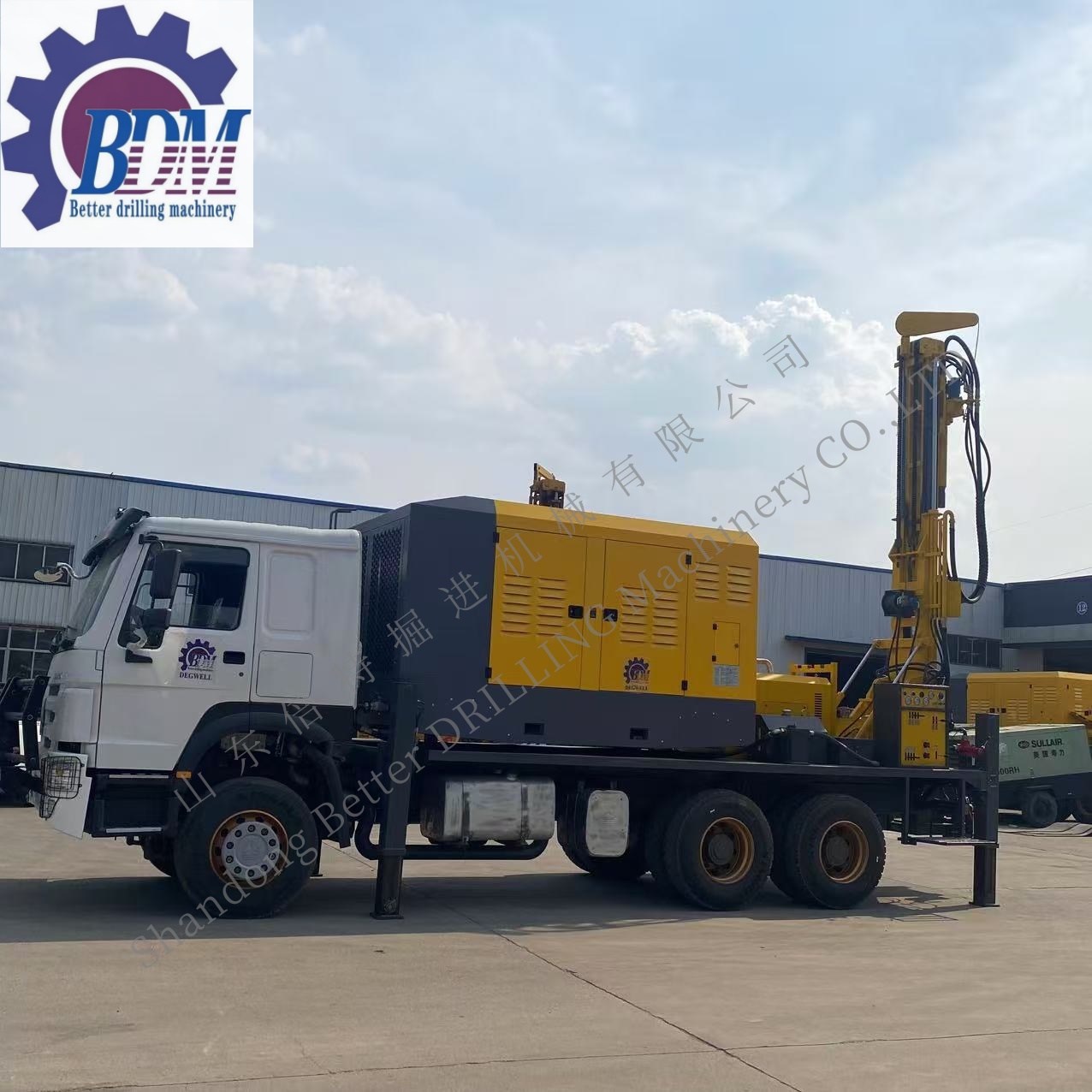

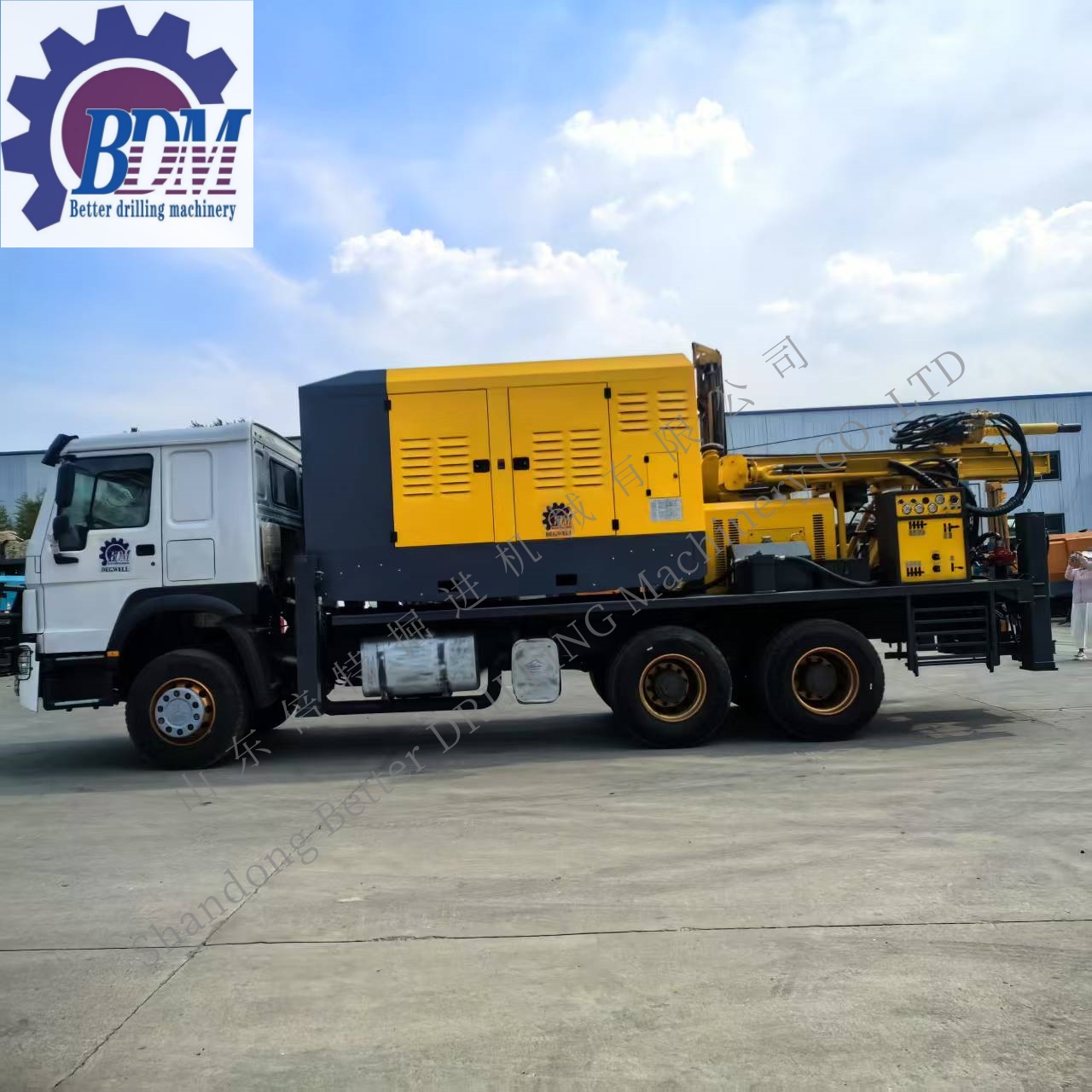

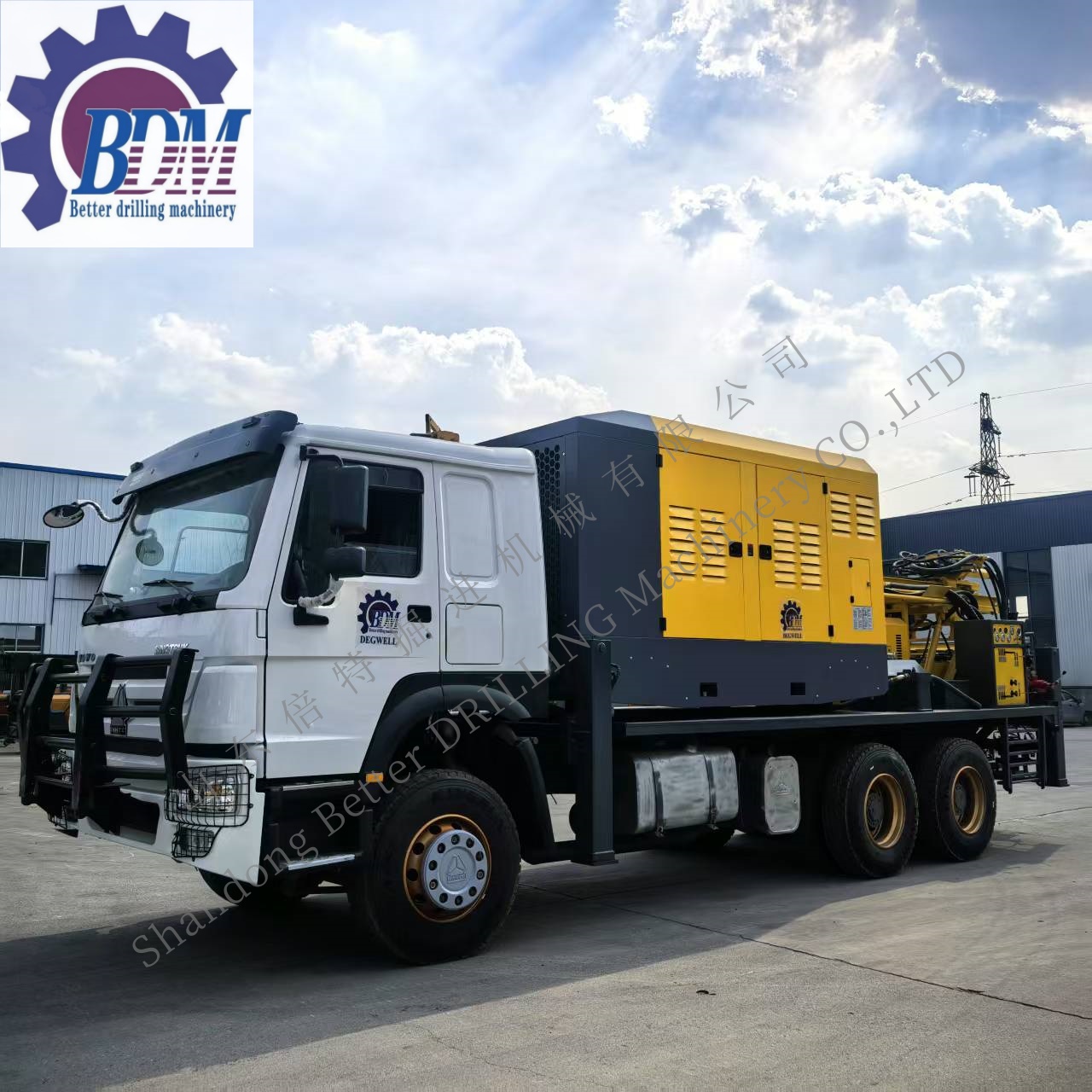

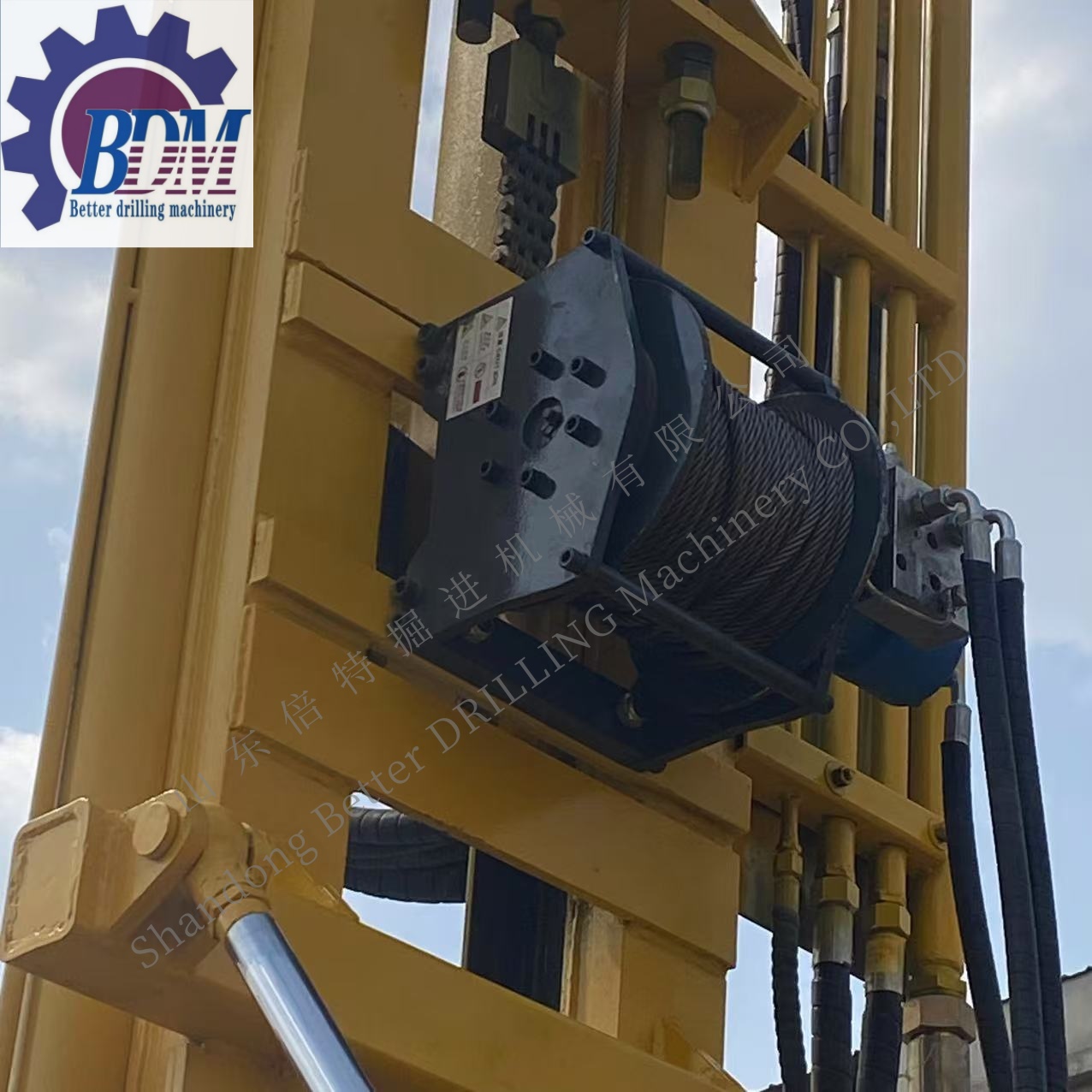

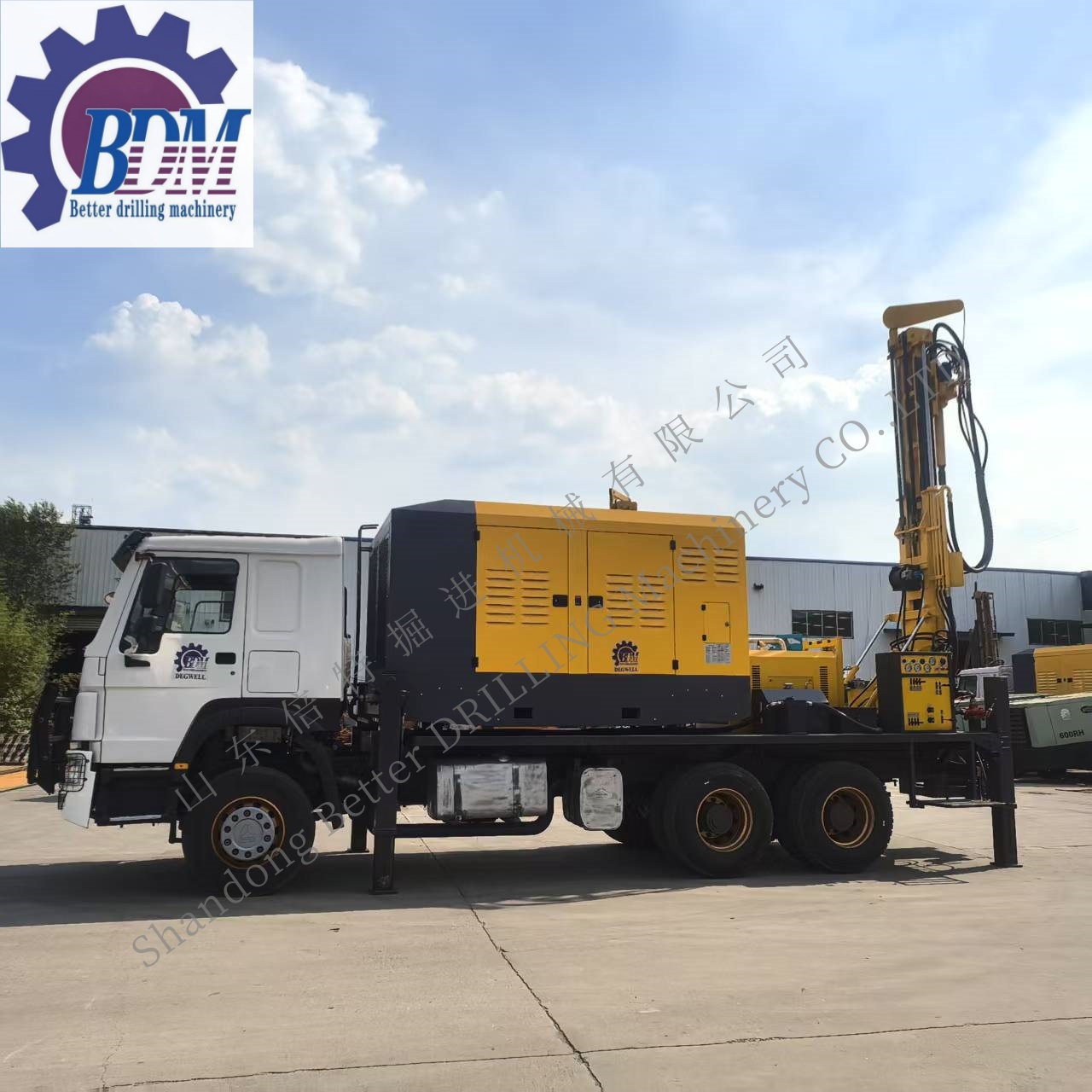

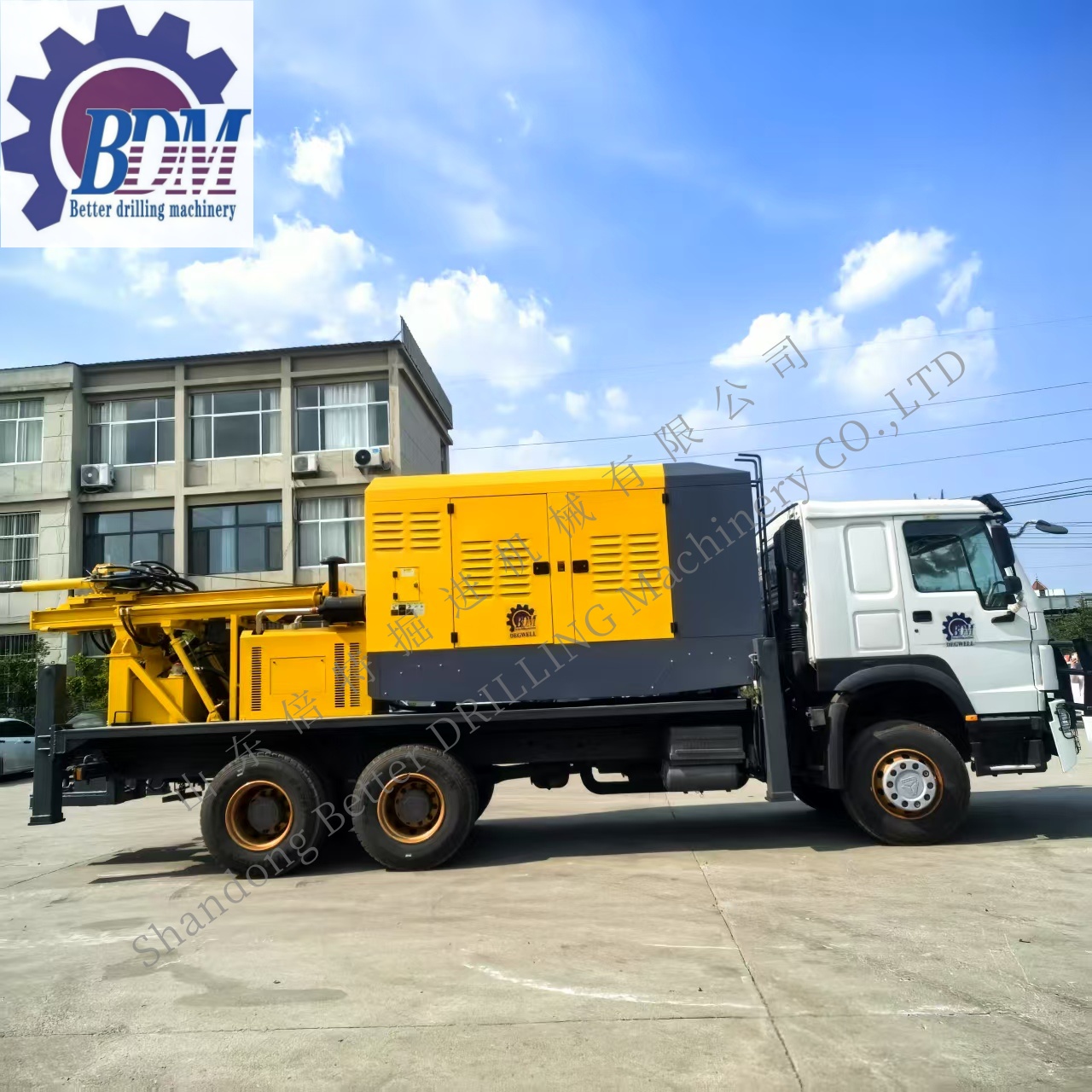

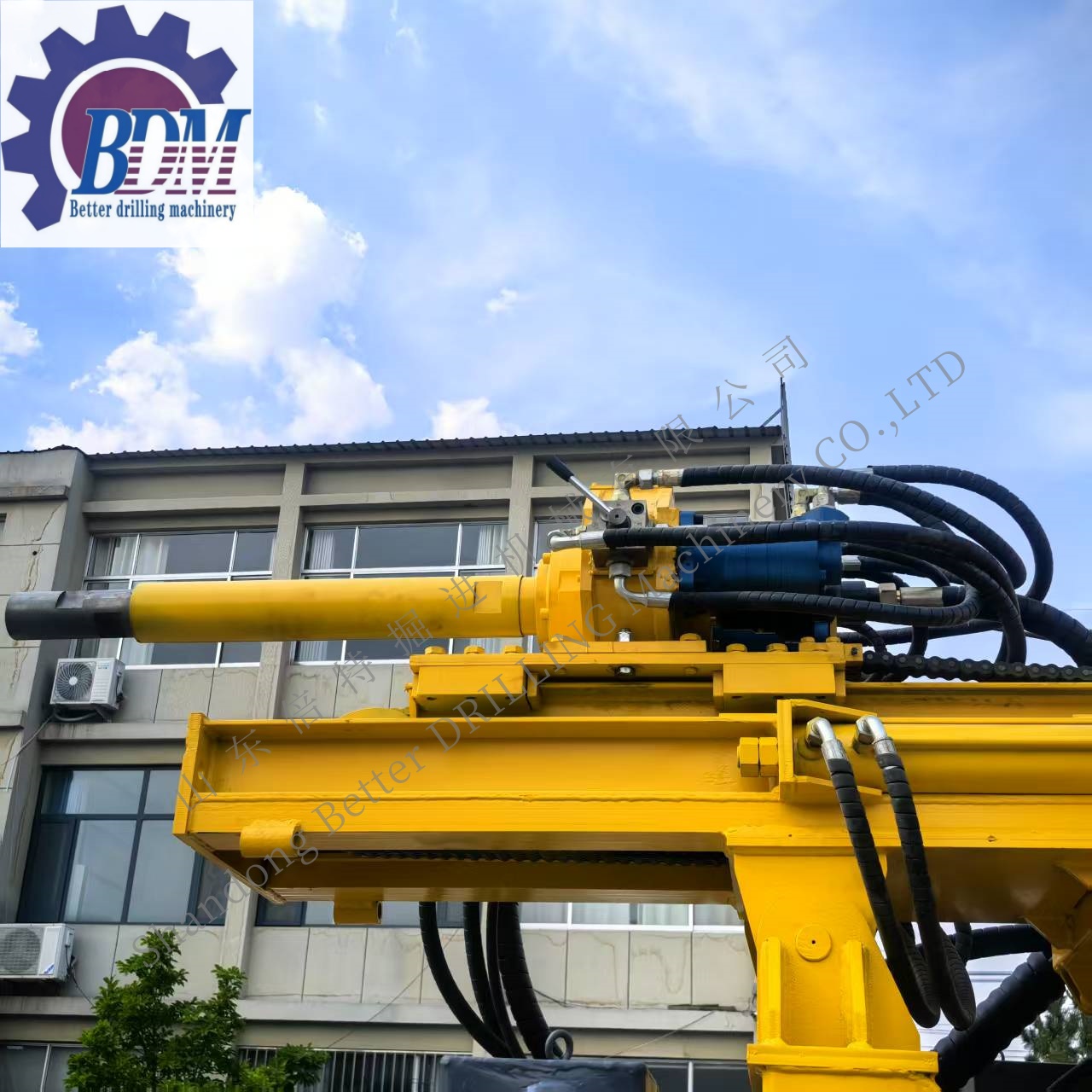

Product detail image：


Product technical parameters：

Truck mounted hydraulic water well drilling rig technical figures

Drilling depth

350m

Truck drive

6*4

Drilling diameter

Φ140-Φ325mm

Working air pressure

1.7-3.5MPa

Air consumption

17-35m3/min

Drilling pipe diameter

Φ76, Φ89,102mm

Length of drill pipe

3m-6m option

One push length

3000mm-6000mm

Drive speed

120km/h

Climbing ability (Max.)

30°

 Rig lifting force

35tons

Rotation speed

70-160 rpm

Rotation torque

6500-13500 N.m

Power

85KW- 91Kw

Weight

19T

Dimension

10600x2560x3000mm

Feeding force

20T

Speed of lifting

30m/min

Air compressor

25bar and 31 m3
