BDM-200T

Addtime：2025-09-09

Phone：0086-13165490800

Product Brief：BDM-200T Small Water Well Drilling RigProduct technical parameters：BDM-200TmodedtrackmountedDTHWaterwelldrillingrigtypeBDM-200TThe weight5.8TDimension4000*17500*2450mmThe hole diameter140-305mmDrilling depth200mOne-time advance length3.4mWalking speed

Introduction: 立即咨询

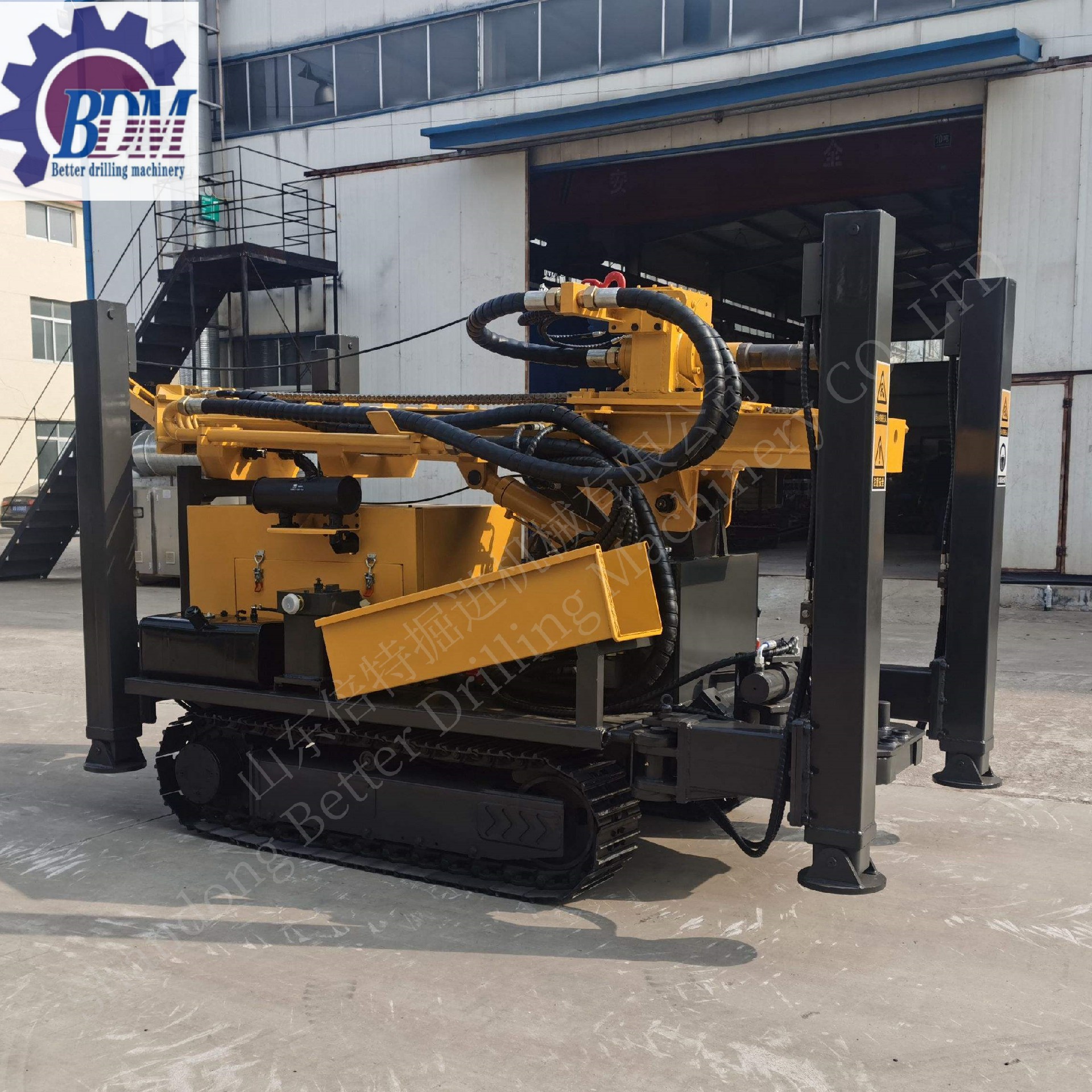

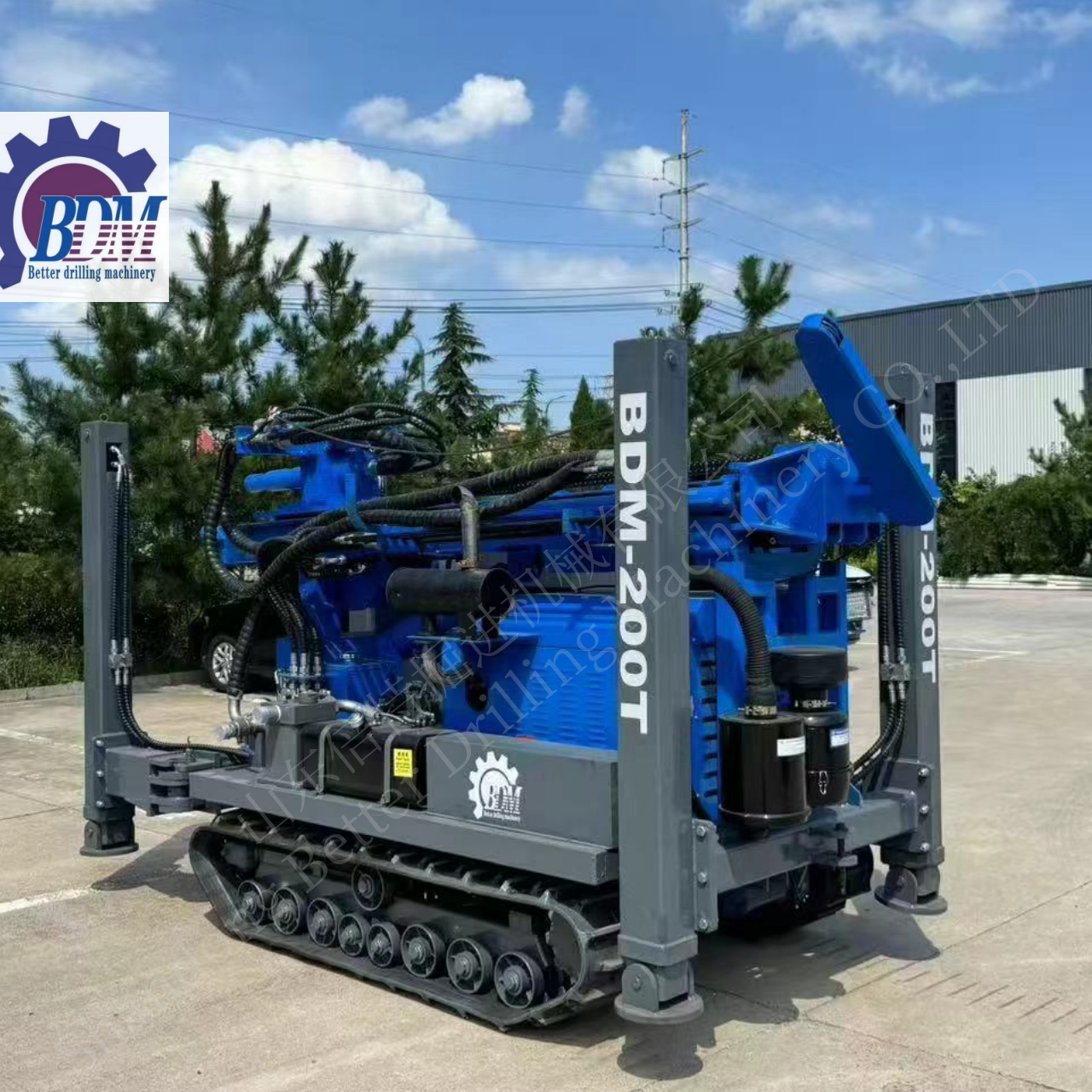

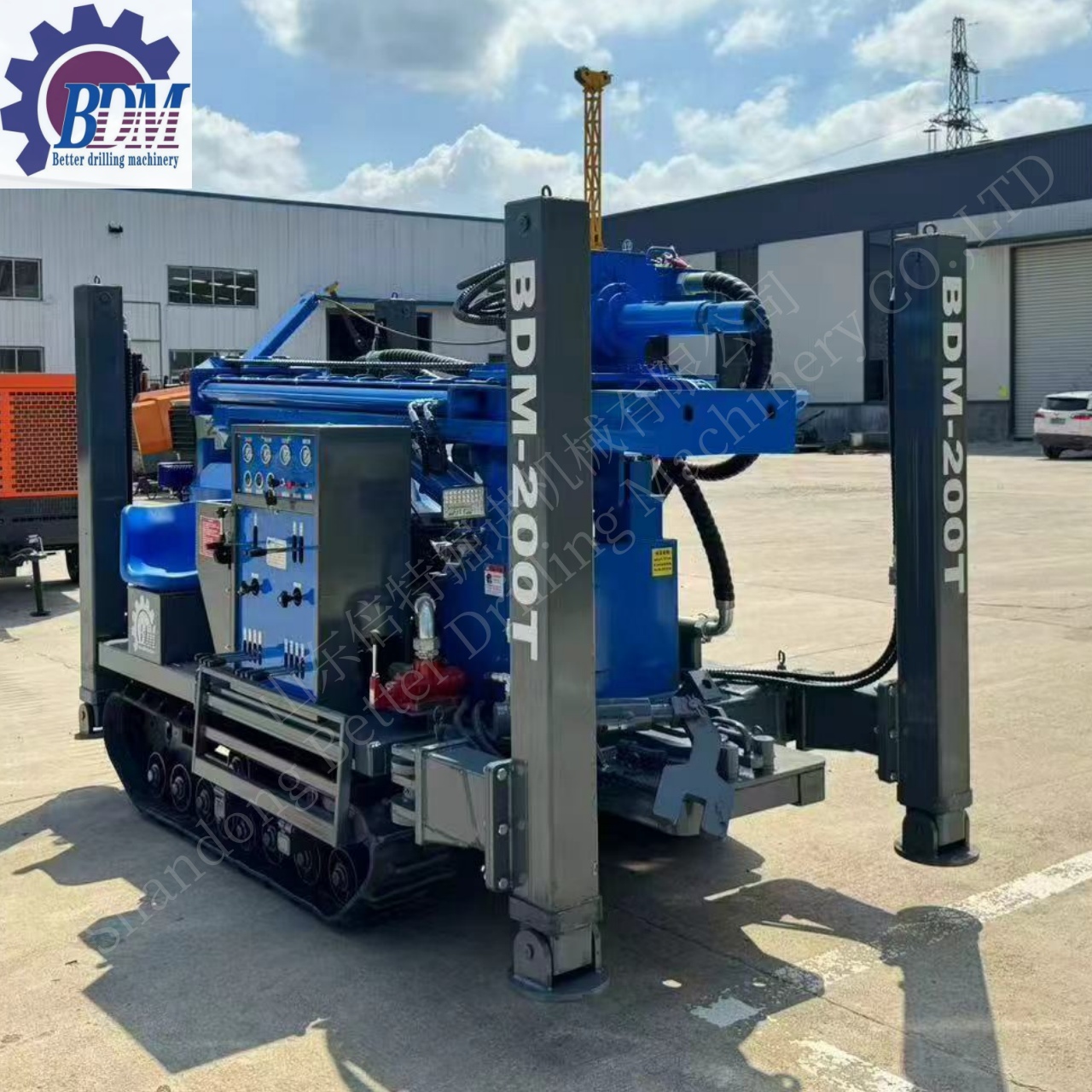

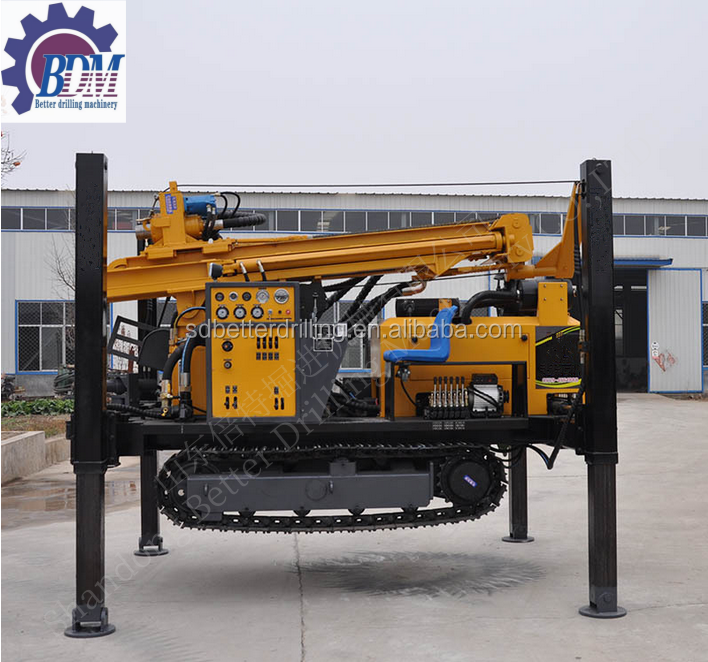

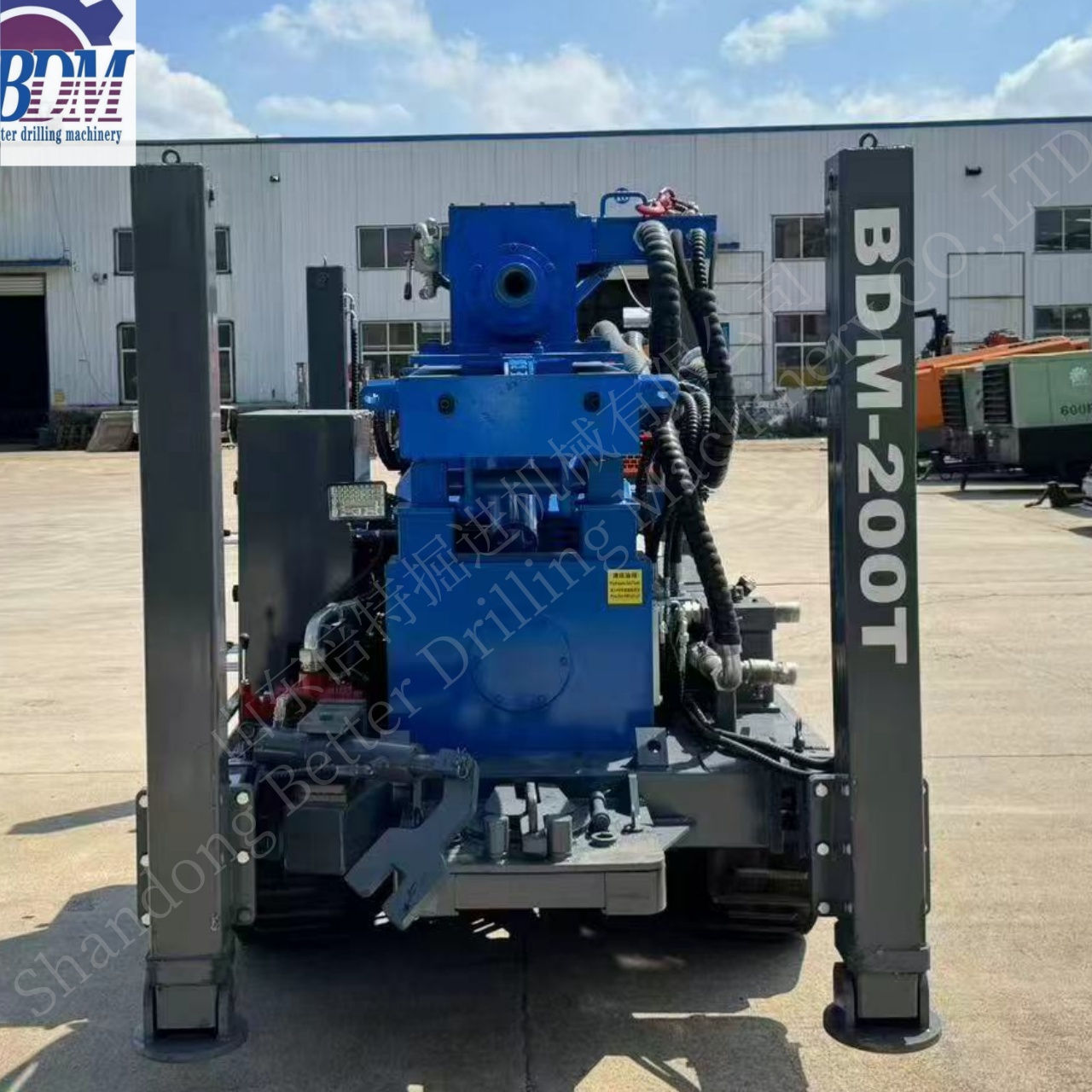

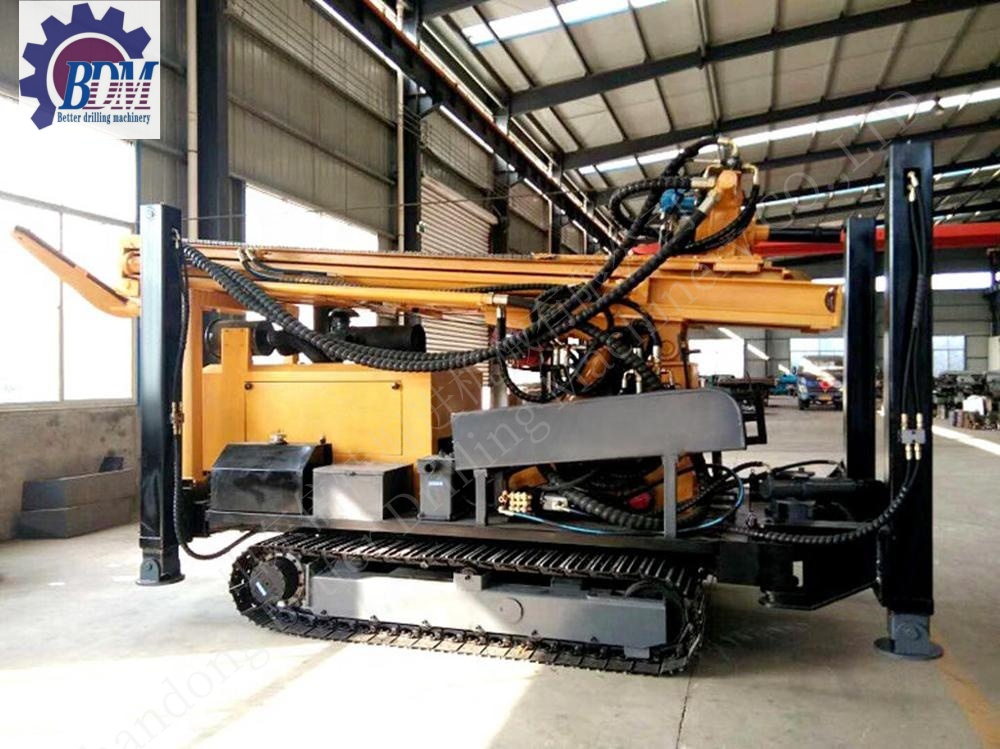

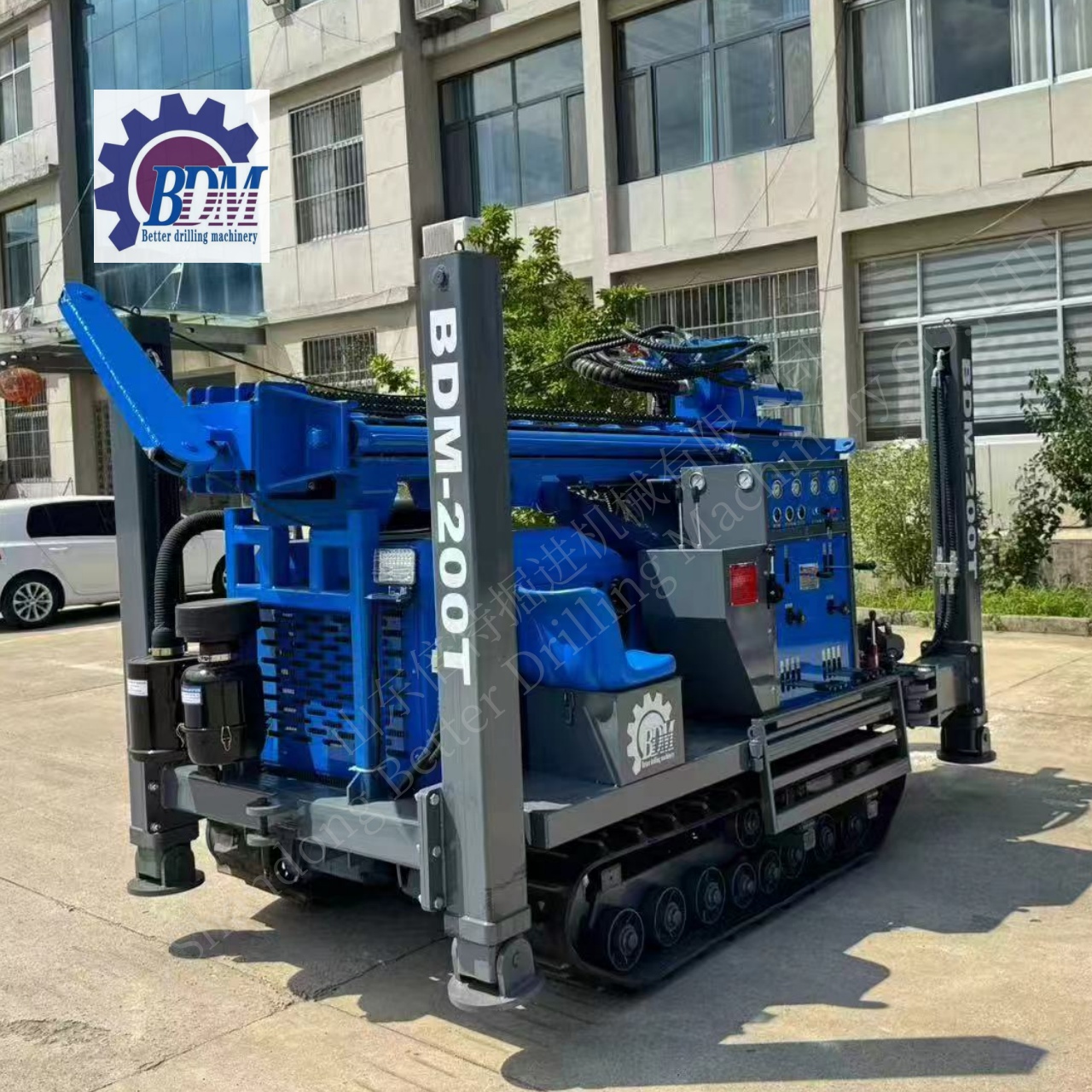

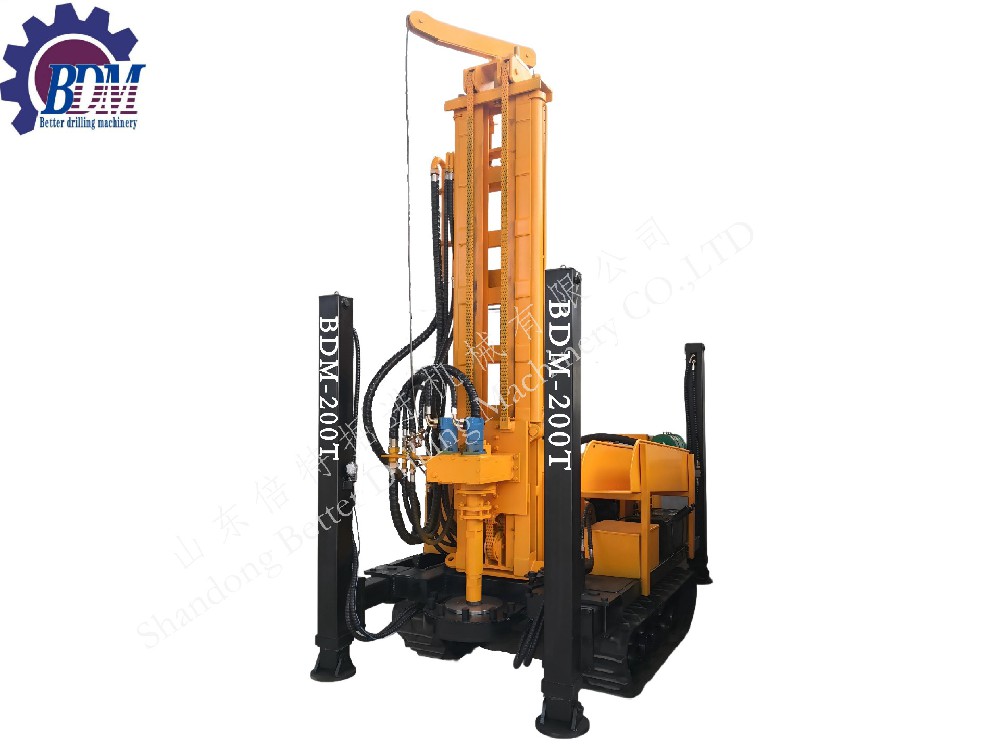

BDM-200T Small Water Well Drilling Rig

Product technical parameters：

BDM-200T moded track mounted DTH Water well drilling rig
type	BDM-200T
The weight	5.8T
Dimension	4000175002450mm
The hole diameter	140-305mm
Drilling depth	200m
One-time advance length	3.4m
Walking speed	2.5KM/H
Climbing angles	30
Power	65-70KW
Using air pressure	1.7-3.0MPA
Air consumption	17-30
Drill pipe length	15m 2.0m 3.0m
Drill pipe diameter	76mm,89mm,
Rig lifting force	12T
Drilling head rotary speed	45-70rpm
Drilling head rotary torque	3500-4800N.m
