BDM-350SM

Addtime：2018-04-12

Phone：0086-13165490800
Product Brief：The BDM-350SM model water well drilling rig has a drilling depth of 350 meters. It is powered by a 91-kilowatt diesel engine, has a 6.6-meter tower, and is equipped with a hydraulic winch and an electric welding generator.
Introduction
立即咨询

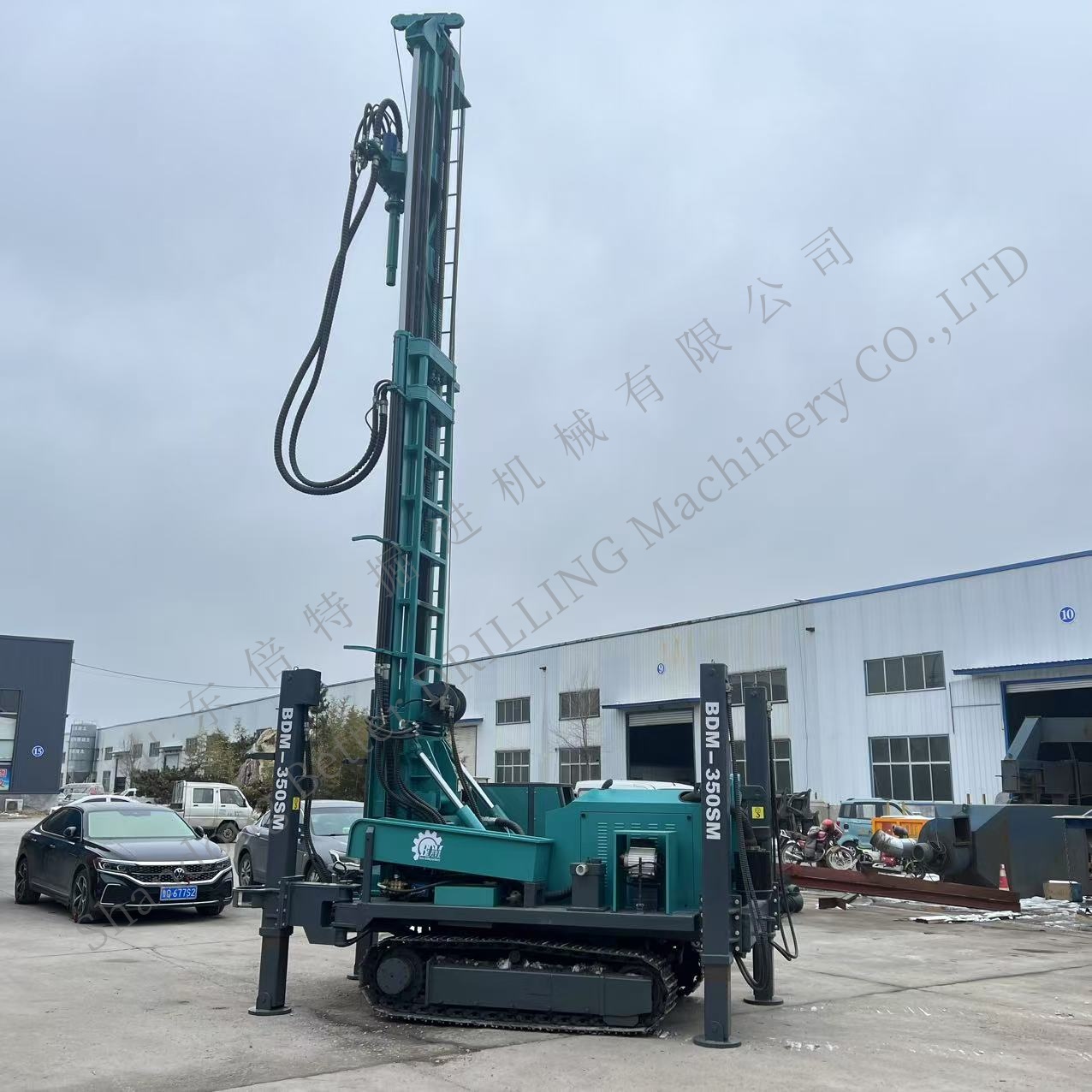

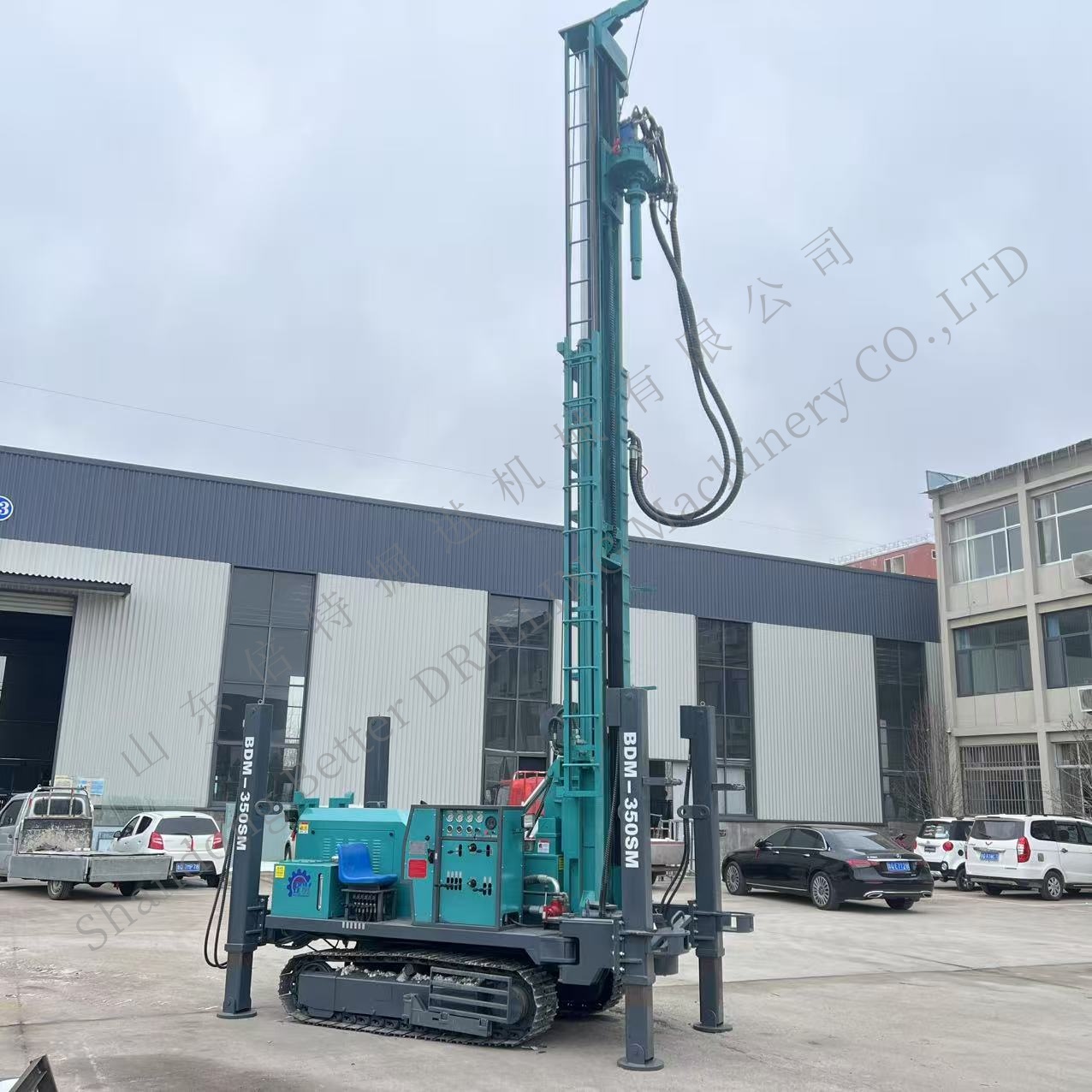

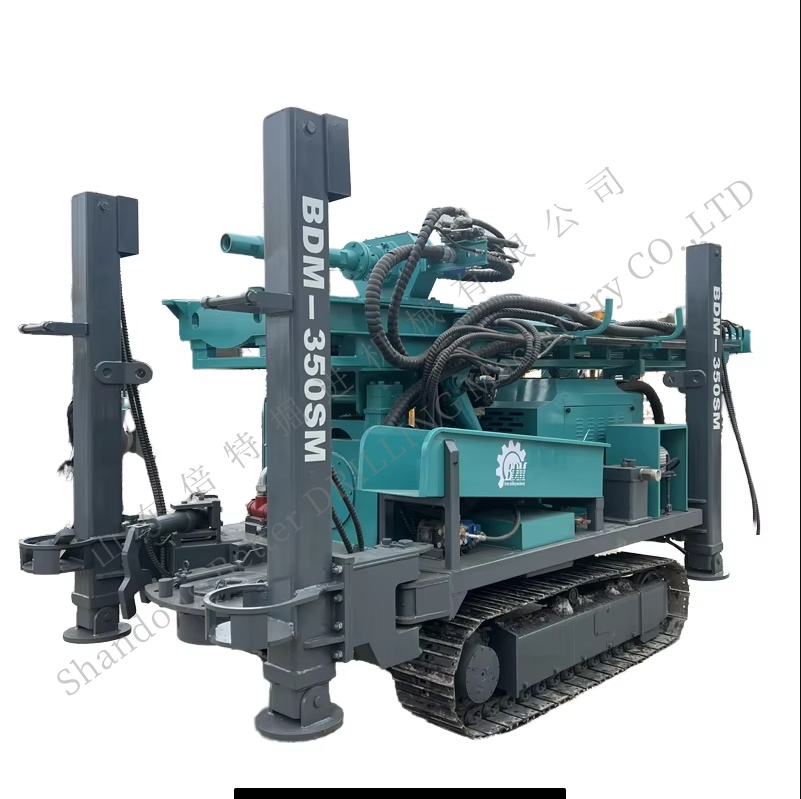

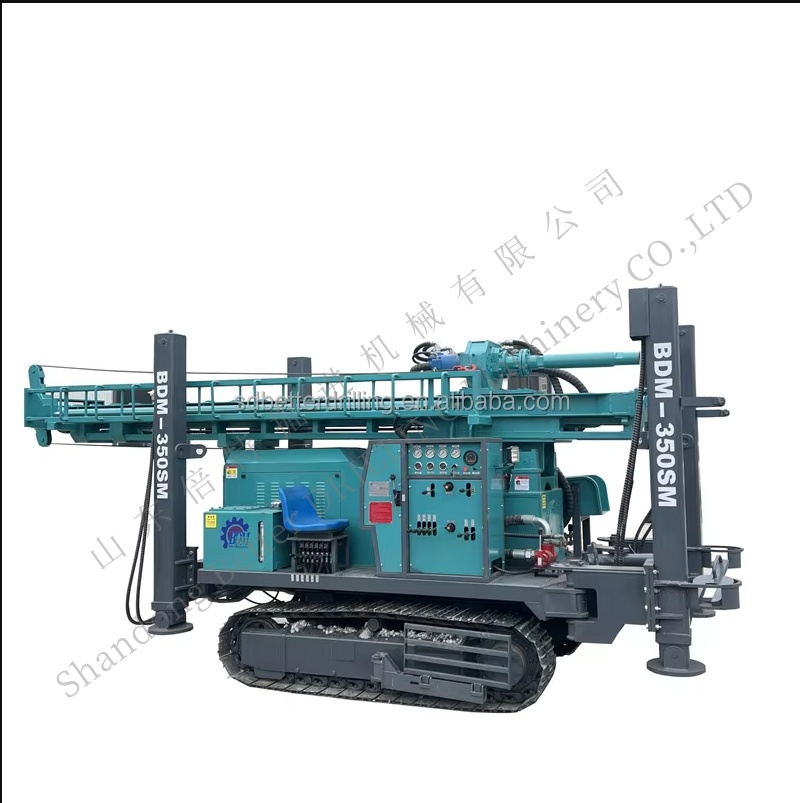

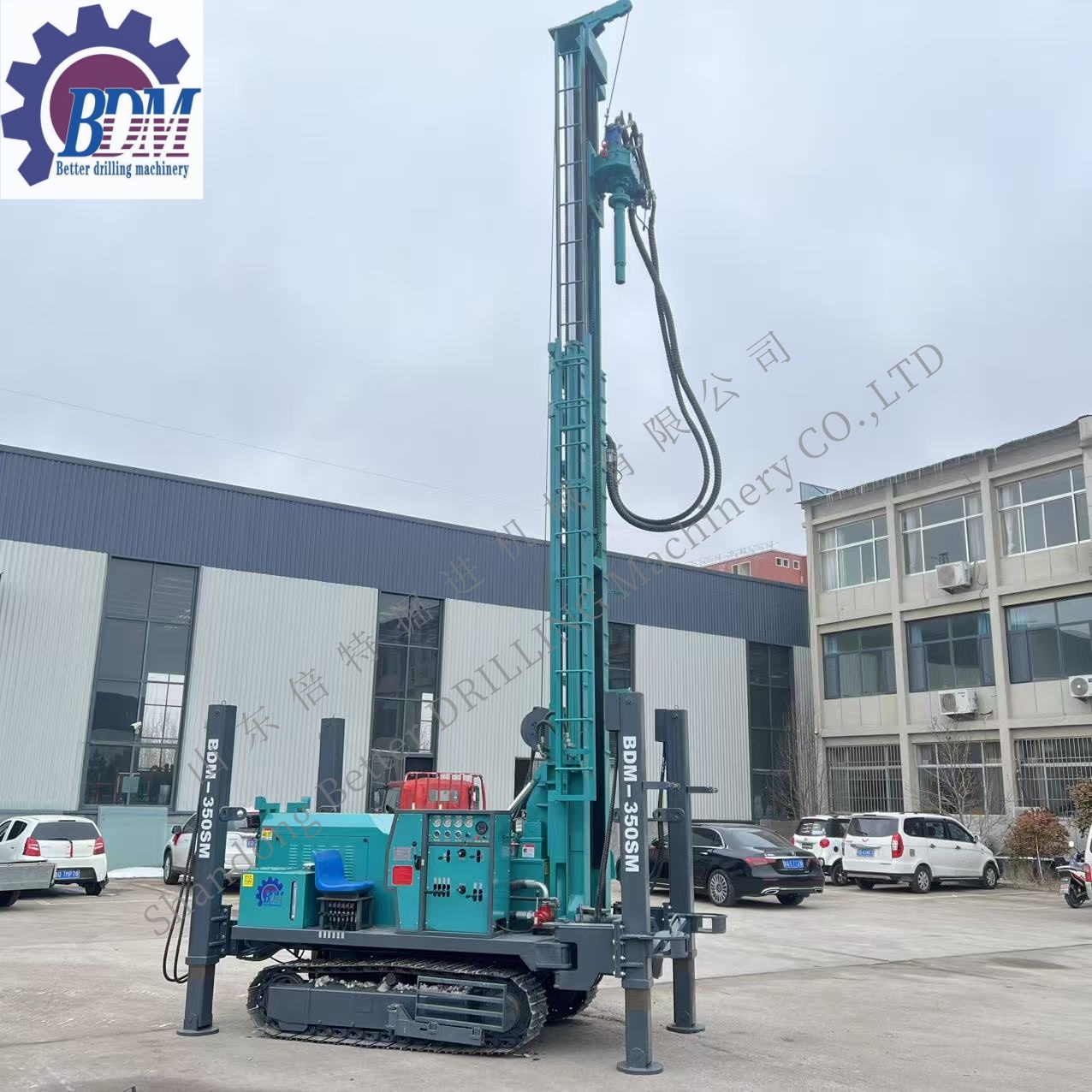

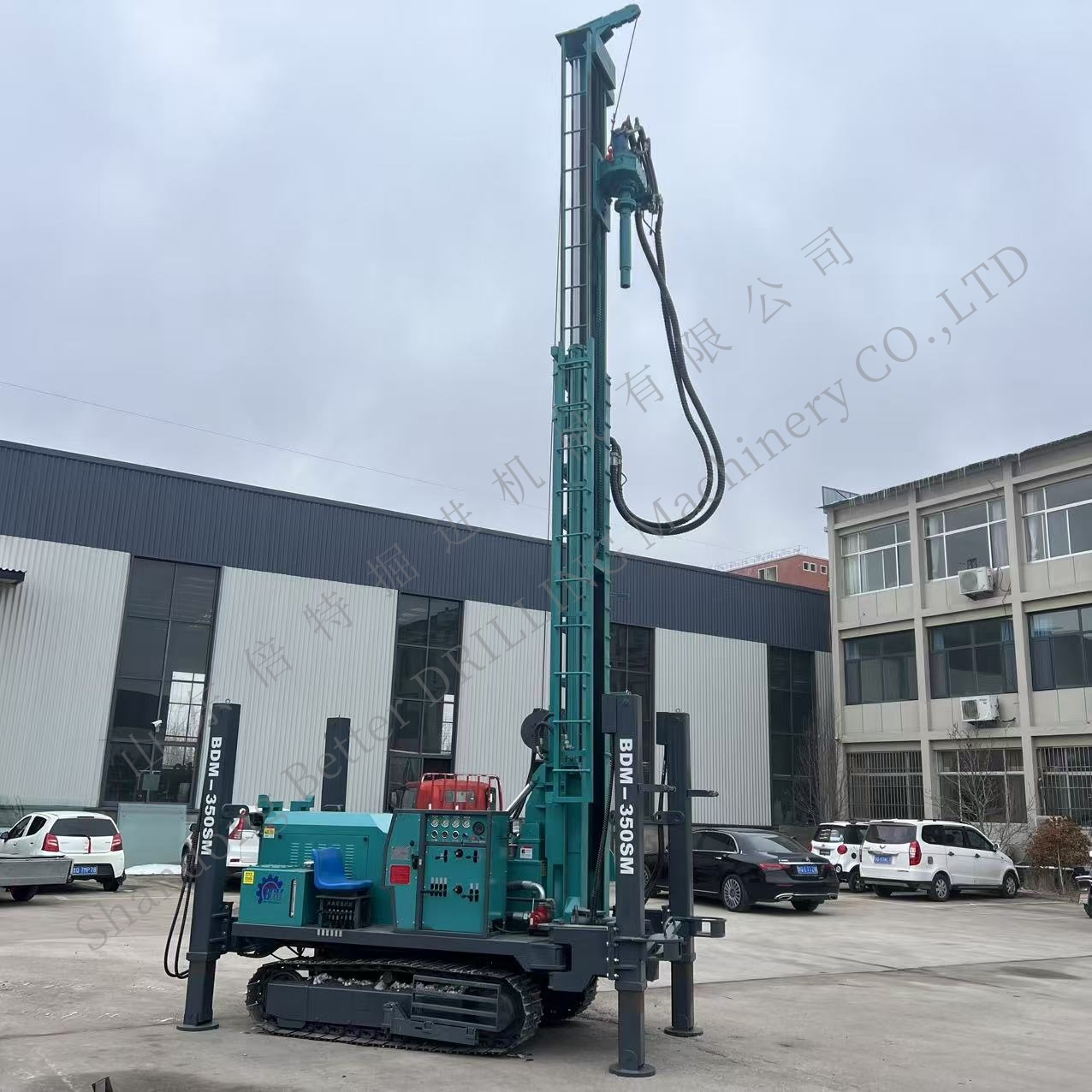

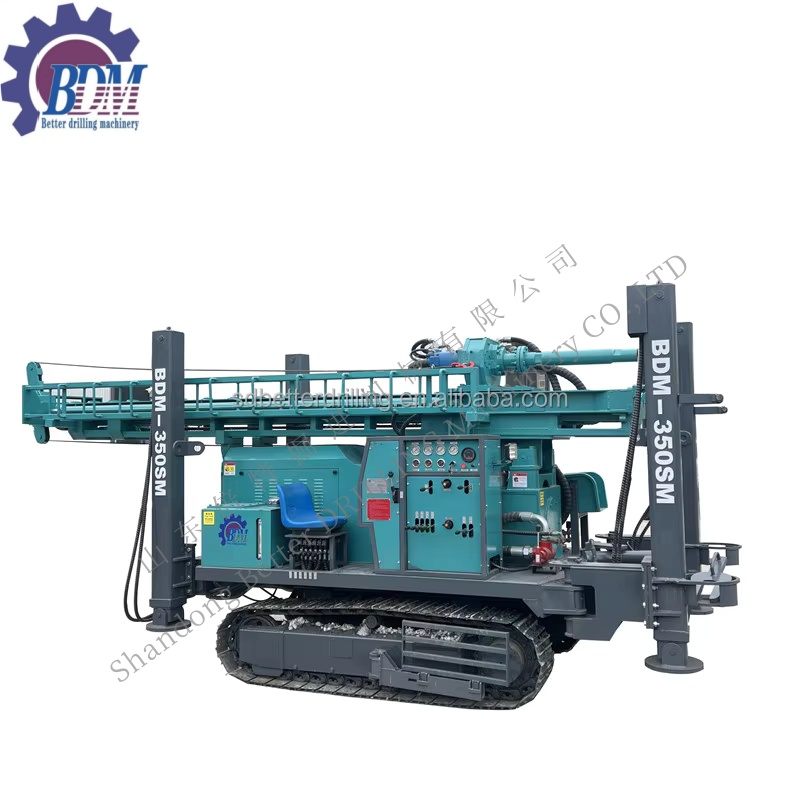

BDM-350SM Track-type water well drilling machine

This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with

very high drilling efficiency.


Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with

 good maneuverability.

Product tachnicai parameters:

Technical Parameters


Type

BDM-350SM

Size

5650*1800*2560 millimeters

Weight

8.7T

Hole Diameter

140-325 millimeters

Drilling Depth

300 meters-400 meters/1390 feet

One-time Lead Length

6.6m

Walking Speed

2.5 kilometers/hour


30

Diesel Engine Power

91KW(Yuchai, 4-cylinder)

Operating Air Pressure

1.7-3.3Mpa

Air Consumption

17-35m³/minute

Drill Rod Length

1.5m 2.0m 3.0m or 6.0m

Drill Rod Diameter

89 millimeters, 102 millimeters,

Drilling Machine Lifting Force

24T

Drill Bit Rotation Speed

70-140 revolutions/minute

Drill Bit Rotation Torque

5500-9400N.m
