BDM-280JG

Addtime：2025-05-07

Phone：0086-13165490800
Product Brief：The BDM-280JG is a water well drilling rig with a depth of 280 meters, powered by a diesel engine with a power of 37 kilowatts. The power head is equipped with a quick valve and dual motors, making it an extremely efficient water well drilling machine.
Introduction
立即咨询

Detailed pictures and technical parameters of the BDM-280JG water well drilling rig

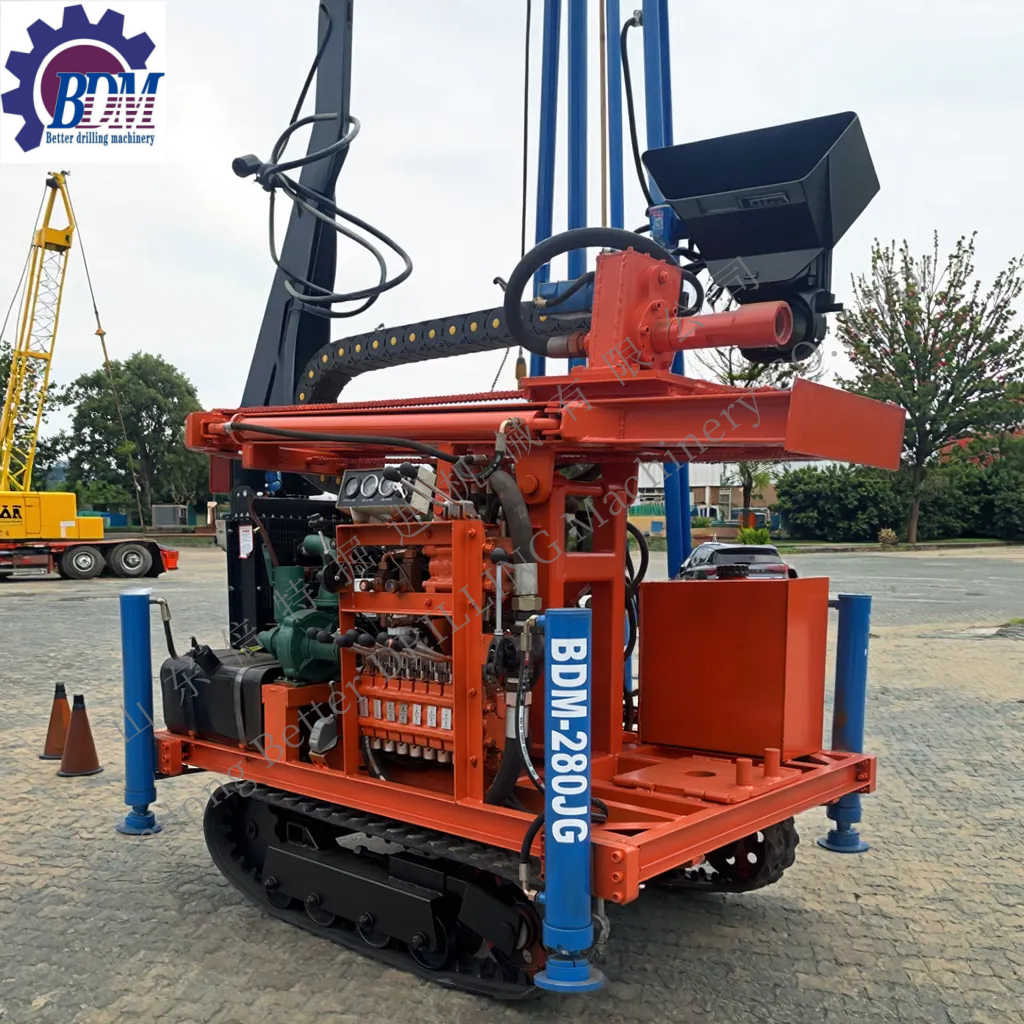

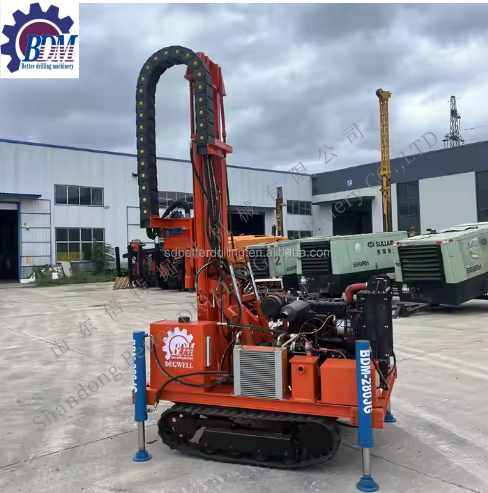

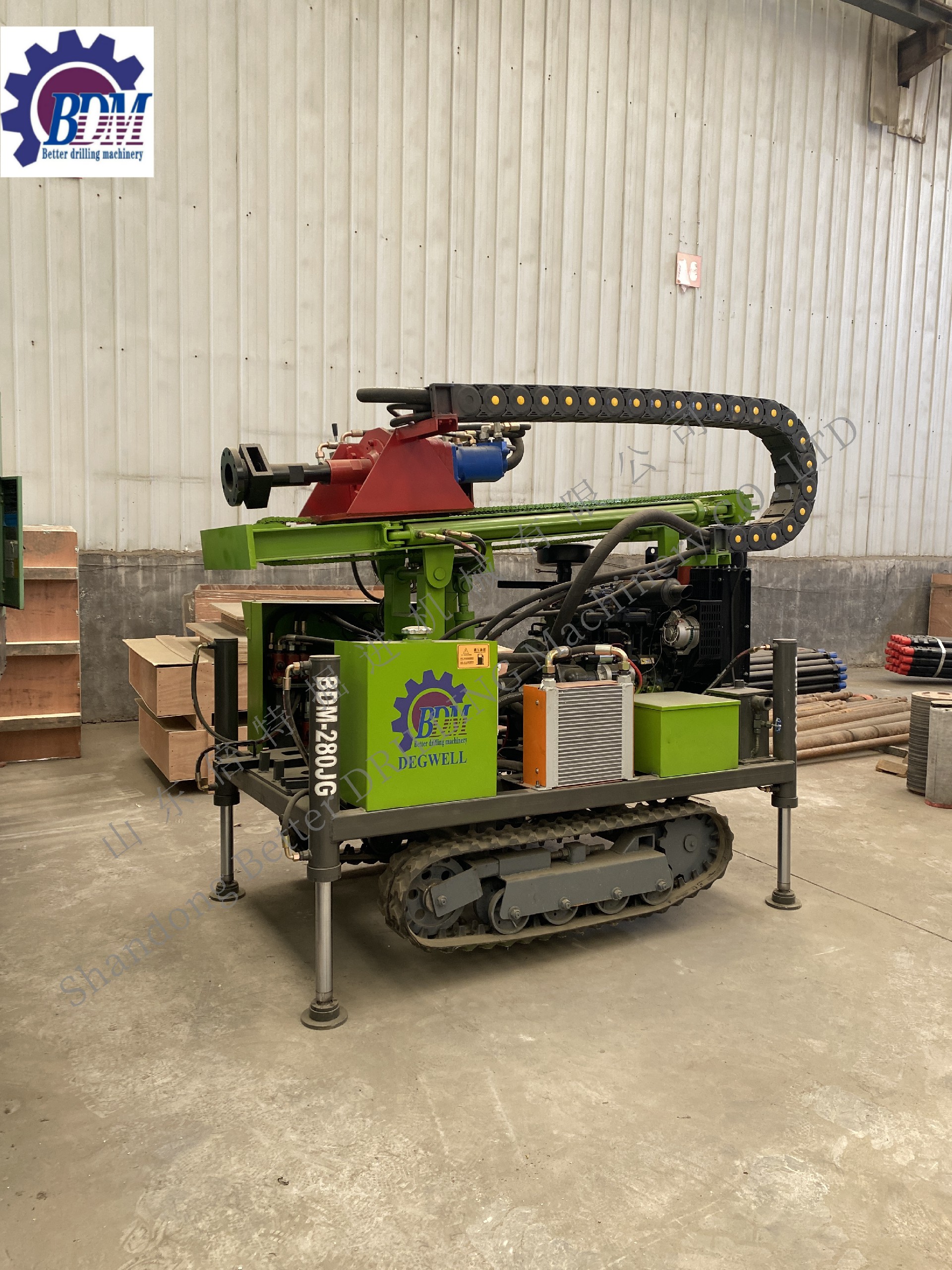

Product image：

Custom colors are available. The hydraulic head motor can be customized with either a

single motor or a dual motor.

Product parameters：

MODEL

BDM-280JG

Drilling depth

200m

Drilling diameter

Φ100-Φ400mm

Drill pipe length

2m

Drill pipe diameter

50/60/76/89mm

Max.lifting force

12T

torque

1500Nm

Engine power

50HP/37KW-4 cylinders

Machine Weight

2.7T

stroke

2.4m

Size

2200*1400*2200
